Clockwise Rotation

Clockwise Rotation

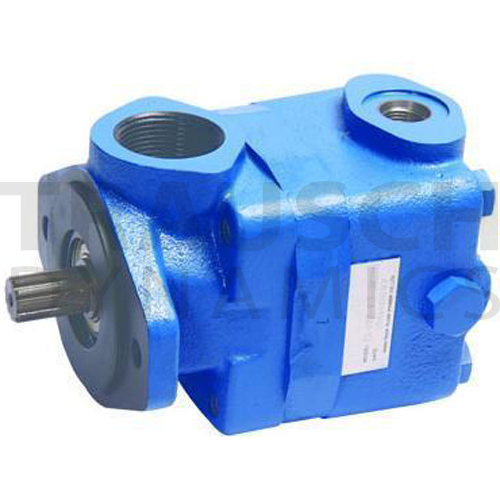

  • Direct Interchange for Vickers V10
  • Balanced Vane Type
  • Fixed Displacement
  • Quieter operation than Gear Pump
  • High Efficiency
  • 100% Tested
  • *Not all vane pumps available are shown. Call and ask to speak to a sales represetative if the model you seek is not shown here.

*** Slide table left/right to view more ***

Item Order Qty. Mfr. Number Rotation in3 Per Rev. GPM @ 1200 RPM Max. PSI Max. RPM Inlet Outlet Port Orientation Shaft
V101P1S11A20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 0.2 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is Opposite Inlet Port, Produces 1 GPM Output @ 1200 RPM. Replaces Vickers V101P1S11A20R or V101P1S11A20RH

6303137

V101P1S11A20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P1S11A20 CW 0.2 1 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet Opposite Inlet 5/8-9 Splined Shaft
V101P2S11A20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 0.4 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is Opposite Inlet Port, Produces 2 GPM Output @ 1200 RPM. Replaces Vickers V101P2S11A20R or V101P2S11A20RH

6303138

V101P2S11A20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P2S11A20 CW 0.4 2 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet Opposite Inlet 5/8-9 Splined Shaft
V101P3S11A20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 0.6 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is Opposite Inlet Port, Produces 3 GPM Output @ 1200 RPM. Replaces Vickers V101P3S11A20R or V101P3S11A20RH

6303139

V101P3S11A20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P3S11A20 CW 0.6 3 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet Opposite Inlet 5/8-9 Splined Shaft
V101P4S11A20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 0.8 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is Opposite Inlet Port, Produces 4 GPM Output @ 1200 RPM. Replaces Vickers V101P4S11A20R or V101P4S11A20RH

6303140

V101P4S11A20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P4S11A20 CW 0.8 4 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet Opposite Inlet 5/8-9 Splined Shaft
V101P5S11A20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 1 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is Opposite Inlet Port, Produces 5 GPM Output @ 1200 RPM. Replaces Vickers V101P5S11A20R or V101P5S11A20RH

6303141

V101P5S11A20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P5S11A20 CW 1 5 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet Opposite Inlet 5/8-9 Splined Shaft
V101P6S11A20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 1.19 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2200 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is Opposite Inlet Port, Produces 6 GPM Output @ 1200 RPM. Replaces Vickers V101P6S11A20R or V101P6S11A20RH

6303142

V101P6S11A20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P6S11A20 CW 1.19 6 GPM 2200 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet Opposite Inlet 5/8-9 Splined Shaft
V101P7S11A20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 1.39 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2000 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is Opposite Inlet Port, Produces 7 GPM Output @ 1200 RPM. Replaces Vickers V101P7S11A20R or V101P7S11A20RH

6303143

V101P7S11A20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P7S11A20 CW 1.39 7 GPM 2000 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet Opposite Inlet 5/8-9 Splined Shaft
V101P1S11B20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 0.2 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is 90 Deg CCW from Inlet Port, Produces 1 GPM Output @ 1200 RPM. Replaces Vickers V101P1S11B20R or V101P1S11B20RH

6303144

V101P1S11B20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P1S11B20 CW 0.2 1 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet 90 Deg CCW from Inlet 5/8-9 Splined Shaft
V101P2S11B20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 0.4 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is 90 Deg CCW from Inlet Port, Produces 2 GPM Output @ 1200 RPM. Replaces Vickers V101P2S11B20R or V101P2S11B20RH

6303145

V101P2S11B20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P2S11B20 CW 0.4 2 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet 90 Deg CCW from Inlet 5/8-9 Splined Shaft
V101P3S11B20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 0.6 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is 90 Deg CCW from Inlet Port, Produces 3 GPM Output @ 1200 RPM. Replaces Vickers V101P3S11B20R or V101P3S11B20RH

6303146

V101P3S11B20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P3S11B20 CW 0.6 3 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet 90 Deg CCW from Inlet 5/8-9 Splined Shaft
V101P4S11B20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 0.8 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is 90 Deg CCW from Inlet Port, Produces 4 GPM Output @ 1200 RPM. Replaces Vickers V101P4S11B20R or V101P4S11B20RH

6303147

V101P4S11B20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P4S11B20 CW 0.8 4 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet 90 Deg CCW from Inlet 5/8-9 Splined Shaft
V101P5S11B20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 1 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is 90 Deg CCW from Inlet Port, Produces 5 GPM Output @ 1200 RPM. Replaces Vickers V101P5S11B20R or V101P5S11B20RH

6303148

V101P5S11B20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P5S11B20 CW 1 5 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet 90 Deg CCW from Inlet 5/8-9 Splined Shaft
V101P6S11B20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 1.19 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2200 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is 90 Deg CCW from Inlet Port, Produces 6 GPM Output @ 1200 RPM. Replaces Vickers V101P6S11B20R or V101P6S11B20RH

6303149

V101P6S11B20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P6S11B20 CW 1.19 6 GPM 2200 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet 90 Deg CCW from Inlet 5/8-9 Splined Shaft
V101P7S11B20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 1.39 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2000 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is 90 Deg CCW from Inlet Port, Produces 7 GPM Output @ 1200 RPM. Replaces Vickers V101P7S11B20R or V101P7S11B20RH

6303150

V101P7S11B20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P7S11B20 CW 1.39 7 GPM 2000 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet 90 Deg CCW from Inlet 5/8-9 Splined Shaft
V101P1S11C20 Vickers Replacement. Hydraulic Pump, Fixed Vane, 0.2 in3 Displacement, Standard SAE 'A' 2-Bolt Mounting Flange, 5/8-9 Splined Shaft, Pilot is 3.25", 2500 PSI Maximum, 1800 RPM Maximum, CW Rotation, 1" NPT Inlet Port, #08 SAE O-Ring Outlet Port, Outlet Port is In Line with Inlet Port, Produces 1 GPM Output @ 1200 RPM. Replaces Vickers V101P1S11C20R or V101P1S11C20RH

6303151

V101P1S11C20 Vickers Replacement. Hydraulic...

$280.72/each

Ships next business day

V101P1S11C20 CW 0.2 1 GPM 2500 PSI 1800 RPM 1" NPT #08 SAE O-Ring Outlet In Line with Inlet 5/8-9 Splined Shaft

*** Slide table left/right to view more ***

Page  of 2
