4W2P CLOSED CENTER
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 4 Way 2 Position
- Direct Acting Spool
- Closed Center

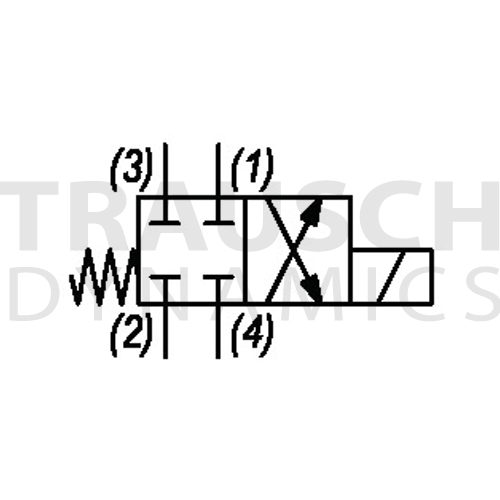

- When De-Energized, the valve blocks flow at all ports.
- When Energized, the valve allows flow from (2) to (1) and (3) to (4).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common Cavity
- Unitized, molded coin design
- Continuous duty rated solenoid
- Optional coil voltages and terminations
- Optinal "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010543 | UD-S4B-00 | 1.5 | 4000 | 5/8-18 | Buna | - | $47.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010544 | UD-S4B-V0 | 1.5 | 4000 | 5/8-18 | Viton | - | $53.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010334 | PQ-S4B-00 | 4 | 3000 | 3/4-16 | Buna | - | $43.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010335 | PQ-S4B-0M | 4 | 3000 | 3/4-16 | Buna | Override & Detent | $70.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010336 | PQ-S4B-B1 | 4 | 3000 | 3/4-16 | Buna | Override & Non-Detent | $70.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010337 | PQ-S4B-V0 | 4 | 3000 | 3/4-16 | Viton | - | $49.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010338 | PQ-S4B-V1 | 4 | 3000 | 3/4-16 | Viton | Override & Non-Detent | $76.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010345 | PQ-S4B-VM | 4 | 3000 | 3/4-16 | Viton | Override & Detent | $76.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010378 | DG-S4B-00 | 10 | 3000 | 7/8-14 | Buna | - | $49.75 / EACH In stock - Ships same day | |||
 | 7010531 | DG-S4B-0M | 10 | 3000 | 7/8-14 | Buna | Override & Detent | $77.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010532 | DG-S4B-B1 | 10 | 3000 | 7/8-14 | Buna | Override & Non-Detent | $77.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010533 | DG-S4B-V0 | 10 | 3000 | 7/8-14 | Viton | - | $56.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010534 | DG-S4B-V1 | 10 | 3000 | 7/8-14 | Viton | Override & Non-Detent | $84.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010535 | DG-S4B-VM | 10 | 3000 | 7/8-14 | Viton | Override & Detent | $84.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010379 | HG-S4B-00 | 10 | 4000 | 7/8-14 | Buna | - | $60.50 / EACH Usually ships in 5 week(s). Expedite available. |
