7/8" 13-TOOTH SPLINED SHAFT REAR PORTS

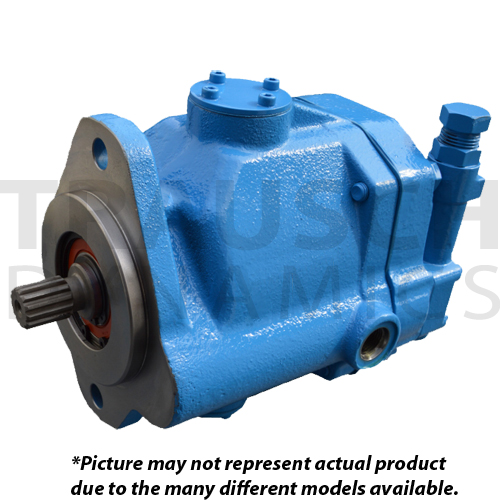

- PVQ40 Piston Pump
- Up to 3000 PSI
- SAE 'B-B' 2-Bolt Mounting Flange
- 1" 15-Tooth Splined Shaft
- Rear Ported
- 100% Tested
- Pressure Compensator
- 1800 RPM Maximum
- Low Noise Level
- Inline Piston Pump Variable Volume Quiet Series
- *Not all models are listed. Please call us and ask for a sales representative if the model you seek is not shown here.
| Image | Item # | Mfr. Number | Rotation | in3 Per Rev | GPM @1800 RPM | Max PSI | PSI Adj. Range | Inlet | Outlet | Case Drain | Max Vol. Stop | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6191997 | PVQ40-B2R-SE3-20C-21-12 | CW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | No | $1,262.11 / EACH Usually ships in 5 day(s) | |||
| 6192000 | PVQ40-B2L-SE3-20C-21-12 | CCW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | No | $1,262.11 / EACH Usually ships in 5 day(s) | |||
| 6192003 | PVQ40-B2R-SE3-20C-21D-12 | CW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | Yes | $1,408.15 / EACH Usually ships in 5 day(s) | |||
| 6192006 | PVQ40-B2L-SE3-20C-21D-12 | CCW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | Yes | $1,408.15 / EACH Usually ships in 5 day(s) | |||
| 6192009 | PVQ40-B2R-SE3-20CM-7-12 | CW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | No | $1,262.11 / EACH Usually ships in 5 day(s) | |||
| 6192012 | PVQ40-B2L-SE3-20CM-7-12 | CCW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | No | $1,262.11 / EACH Usually ships in 5 day(s) | |||
| 6192015 | PVQ40-B2R-SE3-20CM-7D-12 | CW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | Yes | $1,408.15 / EACH Usually ships in 5 day(s) | |||
| 6192018 | PVQ40-B2L-SE3-20CM-7D-12 | CCW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | Yes | $1,408.15 / EACH Usually ships in 5 day(s) |
