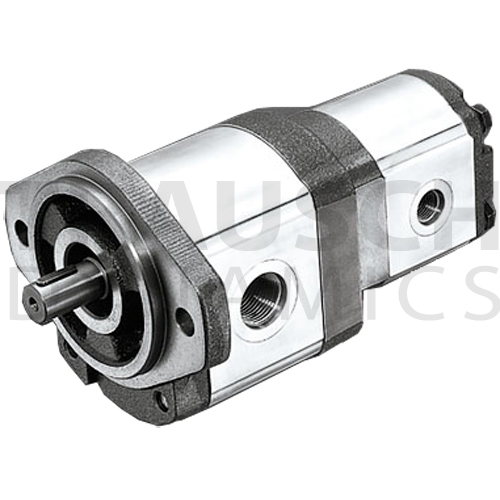

SINGLE INLET PORTED 5/8" KEYED SHAFT GEAR PUMP - SAE A, ALUMINUM, HONOR
- Honor Hydraulic Gear Pumps
- 2 Bolt SAE A Mount
- 3-1/4" Pilot
- 5/8" Keyed Shaft
- O-Ring porting shown per each pump
- Single Inlet Side Ports - SAE O-Ring
| Image | Item # | Mfr. Number | Rotation | Shaft | In3 Per Rev. | GPM @ RPM 1750 | Max PSI | RPM Range | Suction Port Thread | Pressure Port Thread | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5948280 | 2DG1AU0404R | CW | 5/8" X 5/32" Key | 0.24/0.24 | 1.82/1.82 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948281 | 2DG1AU0404L | CCW | 5/8" X 5/32" Key | 0.24/0.24 | 1.82/1.82 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948282 | 2DG1AU0505R | CW | 5/8" X 5/32" Key | 0.30/0.30 | 2.27/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948283 | 2DG1AU0505L | CCW | 5/8" X 5/32" Key | 0.30/0.30 | 2.27/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948284 | 2DG1AU0705R | CW | 5/8" X 5/32" Key | 0.43/0.30 | 3.26/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948285 | 2DG1AU0705L | CCW | 5/8" X 5/32" Key | 0.43/0.30 | 3.26/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948286 | 2DG1AU0707R | CW | 5/8" X 5/32" Key | 0.43/0.43 | 3.26/3.26 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948287 | 2DG1AU0707L | CCW | 5/8" X 5/32" Key | 0.43/0.43 | 3.26/3.26 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948288 | 2DG1AU0905R | CW | 5/8" X 5/32" Key | 0.58/0.30 | 4.39/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948289 | 2DG1AU0905L | CCW | 5/8" X 5/32" Key | 0.58/0.30 | 4.39/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948290 | 2DG1AU0907R | CW | 5/8" X 5/32" Key | 0.58/0.43 | 4.39/3.26 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948291 | 2DG1AU0907L | CCW | 5/8" X 5/32" Key | 0.58/0.43 | 4.39/3.26 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948292 | 2DG1AU0909R | CW | 5/8" X 5/32" Key | 0.58/0.58 | 4.39/4.39 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $637.08 / EACH Usually ships in 3 day(s) | |||
| 5948293 | 2DG1AU0909L | CCW | 5/8" X 5/32" Key | 0.58/0.58 | 4.39/4.39 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) | |||
| 5948294 | 2DG1AU1105R | CW | 5/8" X 5/32" Key | 0.69/0.30 | 5.23/2.27 | 3000 | 600-3500 | (1) #12 SAE O-Ring | (2) #10 SAE O-Ring | $667.89 / EACH Usually ships in 3 day(s) |
