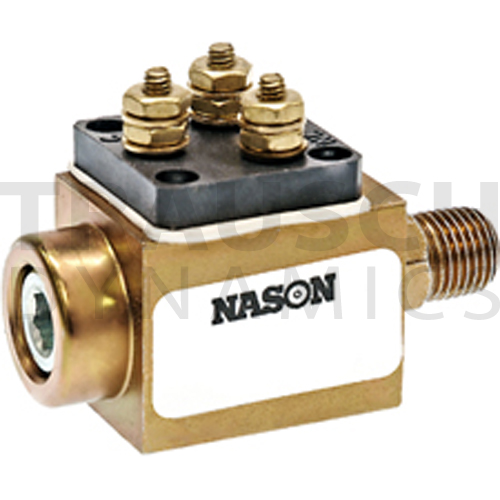

NASON PRESSURE SWITCHES
- Long life elastomer diaphragm
- High quality honeywell snap action switch
- 1 million cycle life
- Field adjustable with 5/16" hex wrench
- Compact design
- Proven in demanding mobile hydraulic applications
- #8-32 screw terminals or din connector option available (connector is included to botain NEMA 4/13, IP65)
- 220°F Max. on Buna N diaphragm
- Proof pressure 15,000 PSI
- Can be wired NO or NC
- Designed for pressure on the rise
- 3-10% differential
- Current ratings: (12 VDC = 8 AMPs), (24 VDC = 4 AMPS), (120/240 VAC = 15 AMPS)
- DIN pin assignment (#1-Common, #2-N.C., #3-N.O., #4-Not Used)
- All models have 1/4" NPTF threads
| Image | Item # | Adjustment Range | Factory Set Point | Design | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|
 | 3875016 | 50-150 PSI | 100 PSI | #8-32 Screw | $105.50 / EACH Quantity breaks Usually ships in 4 week(s) | |||
 | 3875029 | 50-150 PSI | 100 PSI | DIN | $126.65 / EACH Quantity breaks In stock - Ships same day | |||
 | 3875017 | 140-400 PSI | 250 PSI | #8-32 Screw | $105.50 / EACH Quantity breaks In stock - Ships same day | |||
 | 3875030 | 140-400 PSI | 250 PSI | DIN | $126.65 / EACH Quantity breaks In stock - Ships same day | |||
 | 3875018 | 300-800 PSI | 600 PSI | #8-32 Screw | $105.50 / EACH Quantity breaks In stock - Ships same day | |||
 | 3875031 | 300-800 PSI | 600 PSI | DIN | $126.65 / EACH Quantity breaks In stock - Ships same day | |||
 | 3875019 | 700-2500 PSI | 900 PSI | #8-32 Screw | $105.50 / EACH Quantity breaks In stock - Ships same day | |||
 | 3875032 | 700-2500 PSI | 900 PSI | DIN | $126.65 / EACH Quantity breaks In stock - Ships same day | |||
 | 3875020 | 2000-5000 PSI | 3000 PSI | #8-32 Screw | $105.50 / EACH Quantity breaks In stock - Ships same day | |||
 | 3875033 | 2000-5000 PSI | 3000 PSI | DIN | $126.65 / EACH Quantity breaks In stock - Ships same day |
