HONDA ENGINE MODELS

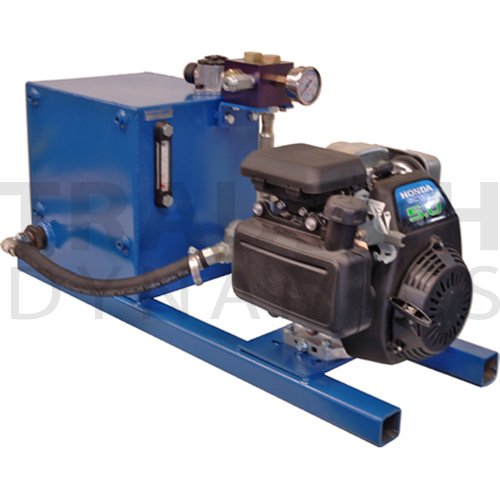

- Gas Engine Power Units - Honda Engine
- Battery included on electric start models
- Unit packed and shipped in quality wooden crate
- Painted blue
- Return filter: 10 Micron (filler/breather integral), #12 O-Ring Port
- Suction filter: 100 Mesh with 5 PSI bypass
- Ports: #12 O-Ring (Pressure & Tank)
- Gauge: Liquid filled S.S. Case 0-3000 on 1500 PSI maximum power units, Liquid filled S.S. Case 0-5000 on 3000 PSI maximum power units
- Tank:10 gallon, fully baffled, 12 gauge steel
- Level sight/temperature gauge standard
- Relief Valve: Preset to power units' maximum pressure capability (see chart)
- Pumps: high performance pressure balanced aluminum body gear pump or rugged cast iron fixed clearance "high-low" pumps
- Tank drain plugs: #8 O-Ring (x2), use for motor case drains, returns, or drains
- Fully tested before shipment, engine oil on board
- Anti-Wear 10 weight hydraulic oil recommended, ATF satisfactory
- Replacement components available from stock
- *Indicates the use of a "high-low" pump, high volume at low pressure, low volume at high pressure
| Image | Item # | HP | Engine Start | Performance GPM @ PSI | Pump Style | Oil Alert Yes/No | Dimensions L x W x H | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 9502202 | 5 | Pull | 1.9 GPM @ 3000 PSI | Gear | Yes | 38.0" x 15.5" x 18.5" | $1,865.15 / EACH Usually ships in 5 day(s) | |||
 | 9502201 | 5 | Pull | 3.9 GPM @ 1500 PSI | Gear | Yes | 38.0" x 15.5" x 18.5" | $1,863.81 / EACH Usually ships in 5 day(s) | |||
 | 9502205 | 5.5 | Pull | 1.9 GPM @ 3000 PSI | Gear | Yes | 38.0" x 15.0" x 18.5" | $2,210.06 / EACH Usually ships in 5 day(s) | |||
 | 9502207 | 5.5 | Electric | 1.9 GPM @ 3000 PSI | Gear | Yes | 38.0" x 17.5" x 18.5" | $2,305.88 / EACH Usually ships in 5 day(s) | |||
 | 9502206 | 5.5 | Pull | 3.9 GPM @ 1500 PSI | Gear | Yes | 38.0" x 15.0" x 18.5" | $2,200.55 / EACH Usually ships in 5 day(s) | |||
 | 9502208 | 5.5 | Electric | 3.9 GPM @ 1500 PSI | Gear | Yes | 38.0" x 17.5" x 18.5" | $2,618.37 / EACH Usually ships in 5 day(s) | |||
 | 9502210 | 8 | Pull | 2.6 GPM @ 3000 PSI | Gear | Yes | 42.0" x 17.5" x 18.5" | $2,203.99 / EACH Usually ships in 5 day(s) | |||
 | 9502211 | 8 | Electric | 2.6 GPM @ 3000 PSI | Gear | Yes | 42.0" x 17.5" x 18.5" | $2,865.54 / EACH Usually ships in 5 day(s) | |||
 | 9502209 | 8 | Pull | 5.8 GPM @ 1500 PSI | Gear | Yes | 42.0" x 17.5" x 18.5" | $2,233.02 / EACH Usually ships in 5 day(s) | |||
 | 9502212 | 8 | Electric | 5.8 GPM @ 1500 PSI | Gear | Yes | 42.0" x 17.5" x 18.5" | $2,565.68 / EACH Usually ships in 5 day(s) | |||
 | 9502219 | 11 | Electric | 3.9 GPM @ 3000 PSI | Gear | Yes | 42.0" x 18.5" x 18.5" | $3,106.62 / EACH Usually ships in 5 day(s) | |||
 | 9502220 | 11 | Electric | 8.0 GPM @ 1500 PSI | Gear | Yes | 42.0" x 18.5" x 18.5" | $3,185.75 / EACH Usually ships in 5 day(s) | |||
 | 9502222 | 13 | Electric | 4.8 GPM @ 2800 PSI | Gear | Yes | 42.0" x 18.5" x 18.5" | $3,133.05 / EACH Usually ships in 5 day(s) | |||
 | 9502223 | 13 | Electric | 10.4 GPM @ 1300 PSI | Gear | Yes | 42.0" x 18.5" x 18.5" | $2,837.27 / EACH Usually ships in 5 day(s) |
