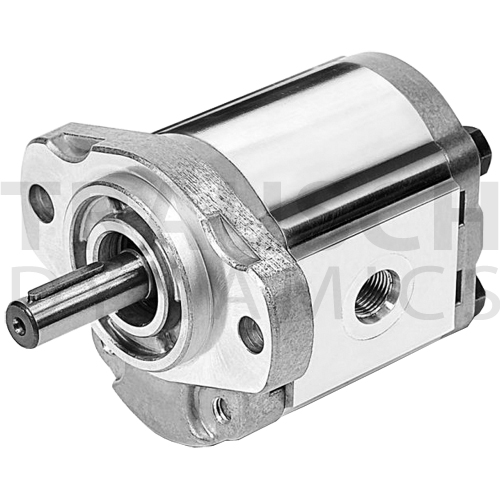

DUAL PORTED 1/2" KEYED SHAFT GEAR PUMPS 1.06" LONG - SAE AA, ALUMINUM, HONOR
- Honor Hydraulic Gear Pumps
- 2 Bolt SAE AA Mount
- 2.0" Pilot
- 1/2" Shaft x 1.06" Long, 1/8" Key
- O-Ring porting shown per each pump
- Dual Port - SAE O-Ring
| Image | Item # | Mfr. Number | Rotation | Shaft | In3 Per Rev. | GPM @ RPM 1750 | Cont. PSI | Max PSI | RPM Range | Suction Port Thread | Pressure Port Thread | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5947233 | 1AG3U0SRE | CW | 1/2" X 1/8" Key | 0.05 | 0.38 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947234 | 1AG3U0SLE | CCW | 1/2" X 1/8" Key | 0.05 | 0.38 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947235 | 1AG3U01RE | CW | 1/2" X 1/8" Key | 0.08 | 0.6 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947236 | 1AG3U01LE | CCW | 1/2" X 1/8" Key | 0.08 | 0.6 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947237 | 1AG3U02RE | CW | 1/2" X 1/8" Key | 0.12 | 0.92 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947238 | 1AG3U02LE | CCW | 1/2" X 1/8" Key | 0.12 | 0.92 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947239 | 1AG3U27RE | CW | 1/2" X 1/8" Key | 0.16 | 1.25 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947240 | 1AG3U27LE | CCW | 1/2" X 1/8" Key | 0.16 | 1.25 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947241 | 1AG3U35RE | CW | 1/2" X 1/8" Key | 0.21 | 1.57 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947242 | 1AG3U35LE | CCW | 1/2" X 1/8" Key | 0.21 | 1.57 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $215.04 / EACH Usually ships in 3 day(s) | |||
| 5947243 | 1AG3U04RE | CW | 1/2" X 1/8" Key | 0.25 | 1.89 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $221.07 / EACH Usually ships in 3 day(s) | |||
| 5947244 | 1AG3U04LE | CCW | 1/2" X 1/8" Key | 0.25 | 1.89 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $221.07 / EACH Usually ships in 3 day(s) | |||
| 5947245 | 1AG3U05RE | CW | 1/2" X 1/8" Key | 0.31 | 2.36 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $221.07 / EACH Usually ships in 3 day(s) | |||
| 5947246 | 1AG3U05LE | CCW | 1/2" X 1/8" Key | 0.31 | 2.36 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $221.07 / EACH Usually ships in 3 day(s) | |||
| 5947247 | 1AG3U06RE | CW | 1/2" X 1/8" Key | 0.37 | 2.82 | 3000 | 3600 | 600-4000 | #8 SAE SIDE #10 SAE REAR | #6 SAE SIDE #8 SAE REAR | $225.76 / EACH Usually ships in 3 day(s) |
