Rotary - 4W2P Criss-Cross

Rotary - 4W2P Criss-Cross

  • Mechanical Directional Control Valves
  • Rotary
  • 4 Way 2 Position Criss-Cross

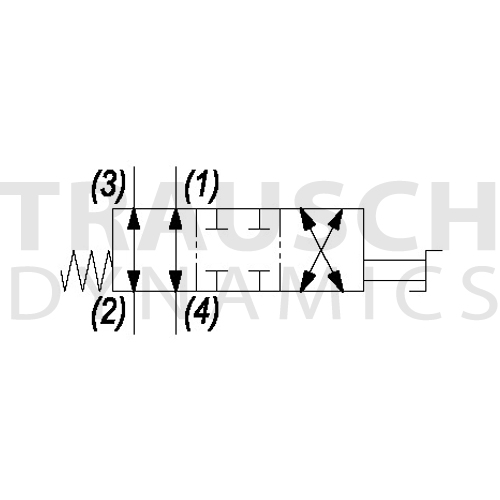

  • The valve when rotated fully to the clockwise position, the cartridge directs flow from (2) to (3) and (1) to (4)
  • When rotated fully to the counterclockwise position, the cartridge directs flow from (3) to (4) and (1) to (2)
  • All ports are closed in transition
  • Hardened parts for long life
  • Industry common cavity

*** Slide table left/right to view more ***

Item Order Qty. Mfr. Number GPM PSI Size Seal Options
DG-M4A-00 Delta Power, Hydraulic valve, cartridge direction control four way 7/8"-14 UNF thread, delta series, 4 way, two position manual criss cross directional control valve, up to 10.0 GPM, 3000 PSI, buna standard. DG-M4A-OO

7010879

DG-M4A-00 Delta Power, Hydraulic valve, cart...

$74.00/each

Usually ships in 11 weeks

DG-M4A-00 10 3000 7/8-14 Buna -
DG-M4A-0K Delta Power, Hydraulic valve, cartridge direction control four way 7/8"-14 UNF thread, delta series, 4 way, two position manual criss cross directional control valve, up to 10.0 GPM, 3000 PSI, buna standard, with knob. DG-M4A-0K

7010880

DG-M4A-0K Delta Power, Hydraulic valve, cart...

$81.50/each

Usually ships in 11 weeks

DG-M4A-0K 10 3000 7/8-14 Buna Override Knob
DG-M4A-V0 Delta Power, 4W2P Manual Rotary - Criss Cross, 10 Size, 7/8-14 Thread, Delta Series, w/ Viton Seals, DG M4A V0, DGM4AV0

7010881

DG-M4A-V0 Delta Power, 4W2P Manual Rotary -...

$80.25/each

Usually ships in 11 weeks

DG-M4A-V0 10 3000 7/8-14 Viton -
DG-M4A-VK Delta Power, 4W2P Manual Rotary - Criss Cross, 10 Size, 7/8-14 Thread, Delta Series, w/ Viton Seals & Override Knob, DG M4A VK, DGM4AVK

7010882

DG-M4A-VK Delta Power, 4W2P Manual Rotary -...

$87.75/each

Usually ships in 11 weeks

DG-M4A-VK 10 3000 7/8-14 Viton Override Knob

*** Slide table left/right to view more ***

Page 1 of 1
