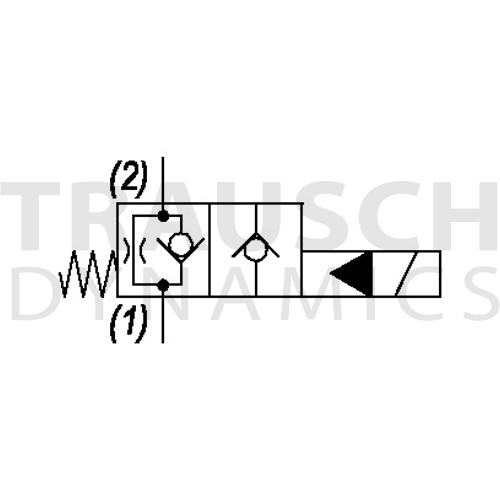

2W2P NORMALLY OPEN - PILOT OPERATED POPPET
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical poppet.
- 2 Way 2 Position
- Normally Open
- Pilot Operated Poppet
- When de-energized, the valve allows flow from (1) to (2) and restricts flow from (2) to (1).
- When Energized, the valve blocks flow from (1) to (2) and allows flow from (2) to (1).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltage and terminations
- Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010071 | PB-S2C-00 | 10 | 3500 | 3/4-16 | Buna | -0 | $46.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010227 | PB-S2C-0M | 10 | 3500 | 3/4-16 | Buna | Override & Detent | $63.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010228 | PB-S2C-0K | 10 | 3500 | 3/4-16 | Buna | Screen | $66.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010229 | PB-S2C-A0 | 10 | 3500 | 3/4-16 | Buna | Override & Non-Detent | $48.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010230 | PB-S2C-B2 | 10 | 3500 | 3/4-16 | Buna | Screen, Override & Non-Detent | $65.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010231 | PB-S2C-B5 | 10 | 3500 | 3/4-16 | Buna | Screen, Override & Detent | $68.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010232 | PB-S2C-V0 | 10 | 3500 | 3/4-16 | Viton | -0 | $49.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010233 | PB-S2C-V2 | 10 | 3500 | 3/4-16 | Viton | Override & Non-Detent | $68.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010234 | PB-S2C-V5 | 10 | 3500 | 3/4-16 | Viton | Screen, Override & Non-Detent | $71.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010235 | PB-S2C-VK | 10 | 3500 | 3/4-16 | Viton | Screen, Override & Detent | $69.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010236 | PB-S2C-VM | 10 | 3500 | 3/4-16 | Viton | Override & Detent | $66.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010237 | PB-S2C-W0 | 10 | 3500 | 3/4-16 | Viton | Screen | $51.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011662 | HB-S2C-00 | 12 | 5000 | 3/4-16 | Buna | -0 | $52.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011665 | HB-S2C-0K | 12 | 5000 | 3/4-16 | Buna | Override Screw Type Knob | $69.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011663 | HB-S2C-A0 | 12 | 5000 | 3/4-16 | Buna | w/Screen | $54.25 / EACH Usually ships in 5 week(s). Expedite available. |
