7/8" KEYED SHAFT SIDE PORTS

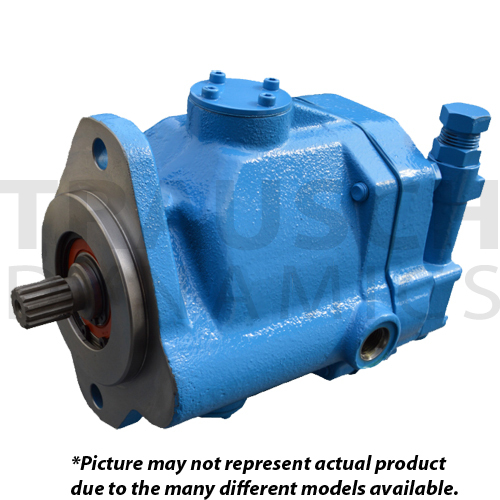

- PVQ40 Piston Pump
- Up to 3000 PSI
- SAE 'B' 2-Bolt Mounting Flange
- 7/8" Keyed Shaft
- Side Ported
- 100% Tested
- Pressure Compensator
- 1800 RPM Maximum
- Low Noise Level
- Inline Piston Pump Variable Volume Quiet Series
- *Not all models are listed. Please call us and ask for a sales representative if the model you seek is not shown here.
| Image | Item # | Mfr. Number | Rotation | in3 Per Rev | GPM @1800 RPM | Max PSI | PSI Adj. Range | Inlet | Outlet | Case Drain | Max Vol. Stop | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6191925 | PVQ40-B2R-SS1S-20C-21-12 | CW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | No | $1,157.58 / EACH Ships next business day | |||
| 6191928 | PVQ40-B2L-SS1S-20C-21-12 | CCW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | No | $1,157.58 / EACH Ships next business day | |||
| 6191931 | PVQ40-B2R-SS1S-20C-21D-12 | CW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | Yes | $1,291.32 / EACH Ships next business day | |||
| 6191934 | PVQ40-B2L-SS1S-20C-21D-12 | CCW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | Yes | $1,291.32 / EACH Ships next business day | |||
| 6191937 | PVQ40-B2R-SS1S-20CM-7-12 | CW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | No | $1,157.58 / EACH Ships next business day | |||
| 6191940 | PVQ40-B2L-SS1S-20CM-7-12 | CCW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | No | $1,157.58 / EACH Ships next business day | |||
| 6191943 | PVQ40-B2R-SS1S-20CM-7D-12 | CW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | Yes | $1,291.32 / EACH Ships next business day | |||
| 6191946 | PVQ40-B2L-SS1S-20CM-7D-12 | CCW | 2.5 | 19.48 | 3000 | 350-3000 | #24 O-Ring | #16 O-Ring | #10 O-Ring | Yes | $1,291.32 / EACH Ships next business day |
