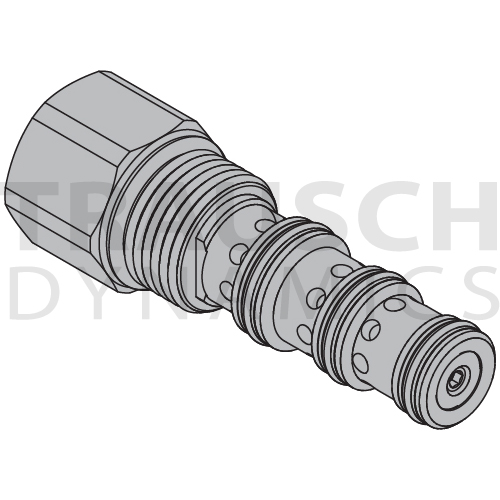

  • Mechanical Directional Control Valves
  • Pilot to Shift
  • 3 Way External Pilot & Internal Drain
  • The valve in neutral (un-piloted), allows flow between (2) and (1) bi-directionally, while blocking at (3)
  • The spring chamber is constantly vented at (1)
  • On attainment of a predetermined pressure at (4), the cartridge redirects flow from (2) to (1), to (2) to (3)
  • Note: that the backpressure valve at (1) must be added to the selected pressure setting to determine pilot pressure necessary to shift valve to second position
  • Hardened parts for long life
  • Industry common cavity
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealCrack PressurePriceOrder Qty.
7011322HG-PDA-00-00401040007/8-14Buna40 PSI $40.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7011323HG-PDA-00-00801040007/8-14Buna80 PSI $40.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7011324HG-PDA-00-01601040007/8-14Buna160 PSI $40.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7011325HG-PDA-V0-00401040007/8-14Viton40 PSI $43.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7011326HG-PDA-V0-00801040007/8-14Viton80 PSI $43.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7011327HG-PDA-V0-01601040007/8-14Viton160 PSI $43.50 / EACH
Usually ships in 5 week(s).
Expedite available.
