  • Mechanical Directional Control Valves
  • Pilot to Shift
  • 2 Way Normally Closed - External Pilot & Drain
  • The valve in neutral (un-piloted), blocks flow between (2) and (3)
  • The spring chamber is constantly vented at (1)
  • On attainment of a predetermined pressure at (4), the cartridge blocks flow from (2) to (3)
  • Note: that the backpressure valve at (1) must be added to the selected pressure setting to determine pilot pressure necessary to shift valve to second position
  • Hardened parts for long life
  • Industry common cavity
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealCrack PressurePriceOrder Qty.
7012177HG-PDC-00-00401040007/8-14Buna40 PSI $39.00 / EACH
Usually ships in 5 week(s).
Expedite available.

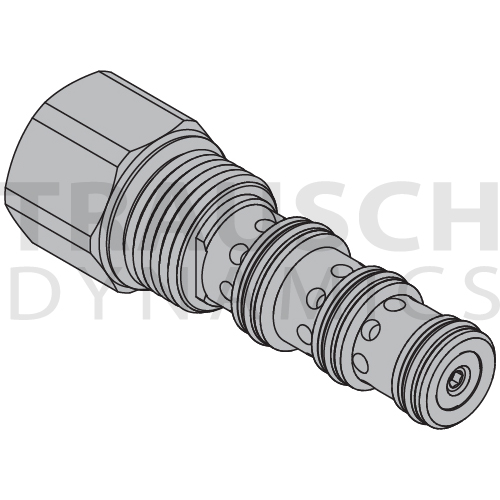

7012178HG-PDC-00-00801040007/8-14Buna80 PSI $39.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012179HG-PDC-00-01601040007/8-14Buna160 PSI $39.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012180HG-PDC-V0-00401040007/8-14Viton40 PSI $42.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012181HG-PDC-V0-00801040007/8-14Viton80 PSI $42.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012183HG-PDC-V0-01601040007/8-14Viton160 PSI $42.50 / EACH
Usually ships in 5 week(s).
Expedite available.
Page 1 of 1
