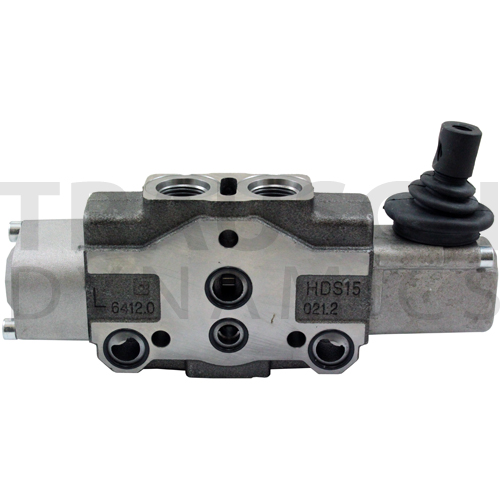

WORK SECTIONS

Load Sense Valve
#4 BSPT Load Sense Port Located on Outlet
1 to 10 work sections per valve stack
Load hold check on each section
Open or closed center capability
Hard Chrome plated spools, body is high strength cast iron, seals are Buna N
Compact Construction
Parallel circuit (series available)
Balanced interchangeable spools
Negative overlapping of the spool
Max flow rate 15 GPM
Max PSI at "P" port = 3600 PSI
Max PSI at "A" or "B" ports = 4600 PSI
Max PSI back-pressure at "T" port = 430 PSI
Max operating temperature = 180°F
Filter oil to 30 micron or better
Leakage (1450 PSI, Temperature at 120°F)
Average: 0.427 In3/minute
Maximum: 0.854 In3/minute
Adjustable direct operated relief valve
Port relief option
Anti-cavitation option
Combination port relief/anti-cavitation option
Can mix with 15 GPM electric sections
Handles can be mounted vertical or horizontal
