  • 1 to 10 work sections per valve stack
  • Load hold check on each section
  • Open or closed center capability
  • Hard Chrome plated spools, body is high strength cast iron, seals are Buna N
  • Compact Construction
  • Parallel circuit (series available)
  • Max flow rate 12 GPM
  • Max PSI at "P" port = 3600 PSI
  • Max PSI at "A" or "B" ports = 4600 PSI
  • Max PSI back-pressure at "T" port = 430 PSI
  • Max operating temperature = 180°F
  • Filter oil to 30 micron or better
  • Leakage (1450 PSI, Temperature at 120°F)
    Average: 0.427 In3/minute
    Maximum: 0.854 In3/minute
  • Adjustable direct operated relief valve
  • Port relief option
  • Anti-cavitation option
  • Combination port relief/anti-cavitation option
  • Can mix with 12 GPM electric sections
  • Power beyond capability
  • Handles can be mounted vertical or horizontal
*** Slide left / right to view more ***
ImageItem #DescriptionCenterPortsPriceOrder Qty.
7153402Double-Acting CylinderSpring Center#8 SAE O-Ring $95.20 / EACH
In Stock - Ships same day

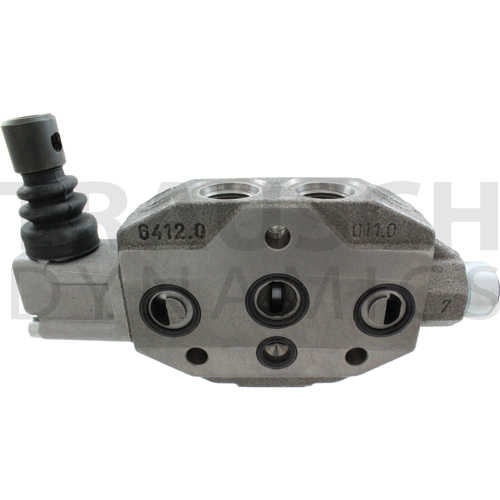

7153414Single-Acting CylinderSpring Center#8 SAE O-Ring $95.20 / EACH
In Stock - Ships same day

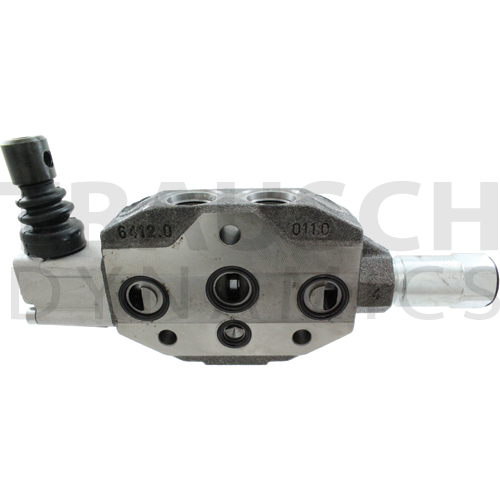

7153412Double-Acting CylinderFloat Detent#8 SAE O-Ring $131.56 / EACH
In Stock - Ships same day
7153410Double-Acting MotorSpring Center#8 SAE O-Ring $95.20 / EACH
In Stock - Ships same day
7153413Double-Acting Motor3-Position Detent#8 SAE O-Ring $101.14 / EACH
In Stock - Ships same day
Page 1 of 1
