COUPLERS - DIN HEAVY
- DIN Heavy Configurations
- ISO 16028
- Before coupling: clean flat mating surface to avoid inclusion of dirt in the circuit
- After connection: turn the external sleeve to engage the lock function, this prevents accidental disconnection
- Uncouple: turn the external sleeve until the sleeve lock groove corresponds with the safety lock ball and pull back the sleeve
Image | Item # | Body Size | Body / Plug | Thread | O.D. | Max PSI | Max Flow | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|
2317308 | 1/4" | Body | M18X1.5 | - | 6090 PSI | 6 GPM | $63.02 / EACH Quantity breaks Usually ships in 3 day(s) | ||||

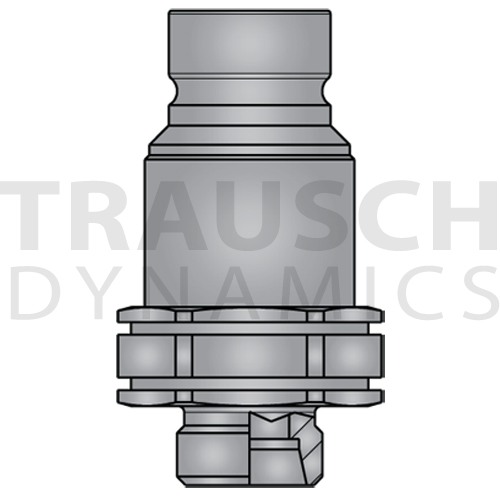

2317309 | 1/4" | Plug | M18X1.5 | 0.63" | 6090 PSI | 6 GPM | $21.32 / EACH Quantity breaks Usually ships in 3 day(s) | ||||

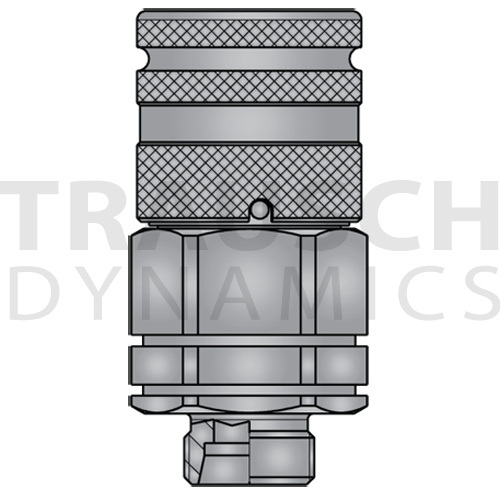

2317310 | 3/8" | Body | M18X1.5 | - | 5075 PSI | 6 GPM | $53.43 / EACH Quantity breaks Usually ships in 3 day(s) | ||||
2317311 | 3/8" | Plug | M18X1.5 | 0.78" | 5075 PSI | 6 GPM | $23.24 / EACH Quantity breaks Usually ships in 3 day(s) | ||||
2317312 | 3/8" | Body | M20X1.5 | - | 5075 PSI | 12 GPM | $53.43 / EACH Quantity breaks Usually ships in 3 day(s) | ||||
2317313 | 3/8" | Plug | M20X1.5 | 0.78" | 5075 PSI | 12 GPM | $23.24 / EACH Quantity breaks Usually ships in 3 day(s) | ||||
2317314 | 1/2" | Body | M20X1.5 | - | 4785 PSI | 24 GPM | $65.84 / EACH Quantity breaks Usually ships in 3 day(s) | ||||
2317315 | 1/2" | Plug | M20X1.5 | 0.96" | 4785 PSI | 24 GPM | $41.98 / EACH Quantity breaks Usually ships in 3 day(s) |
