ELECTRIC DIVERTER VALVE
- Excellent for use on machines which require extra hydraulic functions
- Bank up to 3 valves together with tie rod kits shown to turn one function into four functions
- Max Pressure: 3600 PSI
- Max Flow: 15 GPM
- Ports: #8 SAE O-Ring (3/4-16 SAE)
- Voltage: 12 VDC standard or 24 VDC option (24 VDC coil must be ordered separately)
- "In" ports are P1 and P2
- Oil passes to C1 and C4 when coil is de-energized
- Oil passes to C2 and C3 when coil is energized
- Open crossover when the spool shifts
- DIN Connector to be ordered separately
| Image | Item # | Description 1 | Description 2 | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|
 | 7120007 | DIN Connector | (Order Separately) | $4.50 / EACH In stock - Ships same day | |||

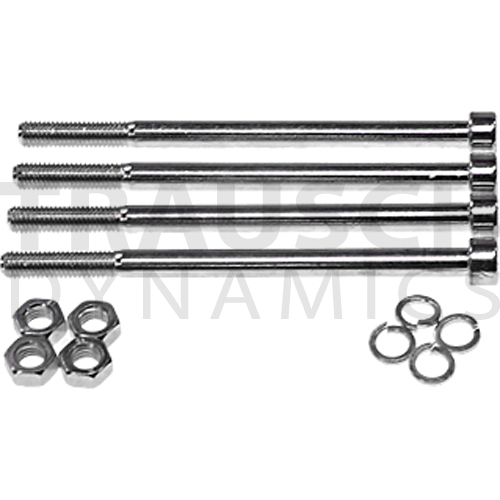

 | 7120002 | Tie-Rod Kit | 2 Section | $12.48 / EACH In stock - Ships same day | |||

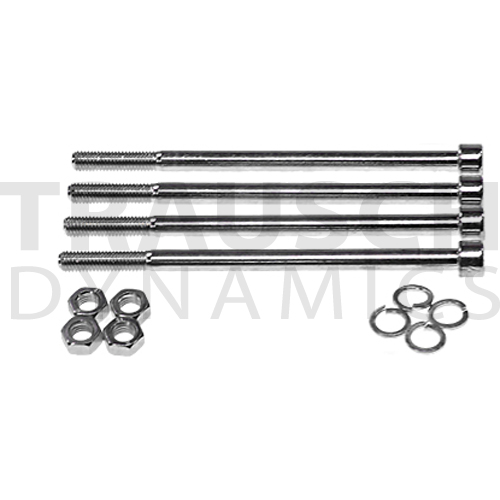

 | 7120003 | Tie-Rod Kit | 3 Section | $21.01 / EACH In stock - Ships same day | |||
 | 7120005 | Solenoid Coil 12 VDC | Replacement | $56.62 / EACH In stock - Ships same day | |||

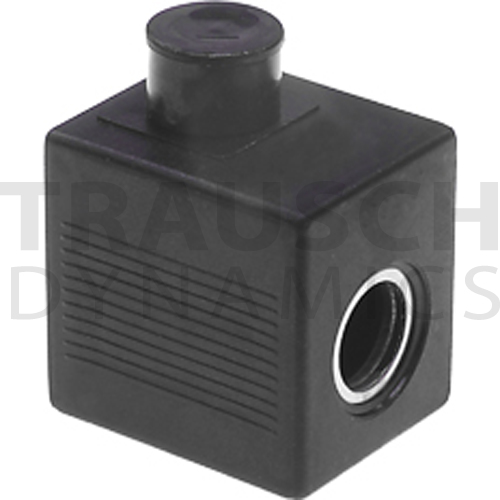

 | 7120006 | Solenoid Coil 24 VDC | Replacement | $56.62 / EACH In stock - Ships same day |
