BYPASS-TYPE REGULATOR - PRESSURE COMPENSATED - ADJUSTABLE
- Mechanical Flow Control Valves
- Bypass Flow Regulators
- Pressure Compensated - Adjustable
- The valve maintain a constant flow within specified accuracies from (1) to (3) regardless of downstream load pressure at (3) or bypass leg (2)
- When flow produces a minimum predetermined pressure differential across the compensator spool control orifice, the spool shifts against the spring force to throttle the flow and maintain the priority flow setting
- The cartridge's flow may be adjusted -40% of maximum setting
- Reverse flow is not regulated
- Pressure-compensated
- Quiet response
- Bypass port (2) may be fully pressurized
- Hidden adjustment (tamper resistant) option
- Aluminum knob and disc nut option
- Adjustment may be locked in place
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Adj. Type | Price | Order Qty. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7015178 | DFRA-100-3-N-H-100 | 1 | 3000 | 10 | Buna | Hidden | $49.35 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015179 | DFRA-100-3-N-H-150 | 1.5 | 3000 | 10 | Buna | Hidden | $49.35 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015180 | DFRA-100-3-N-H-200 | 2 | 3000 | 10 | Buna | Hidden | $49.35 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015181 | DFRA-100-3-N-H-300 | 3 | 3000 | 10 | Buna | Hidden | $49.35 / EACH Usually ships in 7-8 week(s) |
| ||||

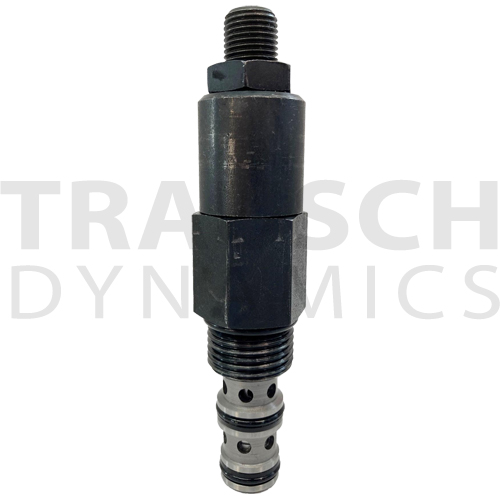

 | 7015182 | DFRA-100-3-N-H-500 | 5 | 3000 | 10 | Buna | Hidden | $49.35 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015183 | DFRA-100-3-N-H-750 | 7.5 | 3000 | 10 | Buna | Hidden | $49.35 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015184 | DFRA-100-3-N-H-1000 | 10 | 3000 | 10 | Buna | Hidden | $49.35 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015185 | DFRA-100-3-N-K-100 | 1 | 3000 | 10 | Buna | Knob | $63.67 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015186 | DFRA-100-3-N-K-150 | 1.5 | 3000 | 10 | Buna | Knob | $63.67 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015187 | DFRA-100-3-N-K-200 | 2 | 3000 | 10 | Buna | Knob | $63.67 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015188 | DFRA-100-3-N-K-300 | 3 | 3000 | 10 | Buna | Knob | $63.67 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015189 | DFRA-100-3-N-K-500 | 5 | 3000 | 10 | Buna | Knob | $63.67 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015190 | DFRA-100-3-N-K-750 | 7.5 | 3000 | 10 | Buna | Knob | $63.67 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015191 | DFRA-100-3-N-K-1000 | 10 | 3000 | 10 | Buna | Knob | $63.67 / EACH Usually ships in 7-8 week(s) |
| ||||
 | 7015192 | DFRA-100-3-N-S-100 | 1 | 3000 | 10 | Buna | Screw | $51.58 / EACH Usually ships in 7-8 week(s) |
| ||||
