2-1/2" FACE - BACK MOUNT, 1/4 NPTF
- Designed for use with gas, oil, and water or any medium not corrosive to brass or bronze
- Recommended for reducing shock caused by pressure or vibration
- Movement: Brass
- Bourdon Tube: C-shaped in Copper Alloy up to 600 PSI and Helical in Phosphor Bronze above 600 PSI
- Pointer:Black Enameled Aluminum
- Dial: White Aluminum
- Window: Temperature compensating polycarbonate
- Case Material: 304 Stainless steel
- Connection Material: Brass
- Accuracy: ASME / ANSI B40.1 Grade A (1-2%)
- Fill Material: Glycerin
- Wetted Parts: Copper Alloy
| Image | Item # | Range PSI | Range Bar | Face | NPTF Threads | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|

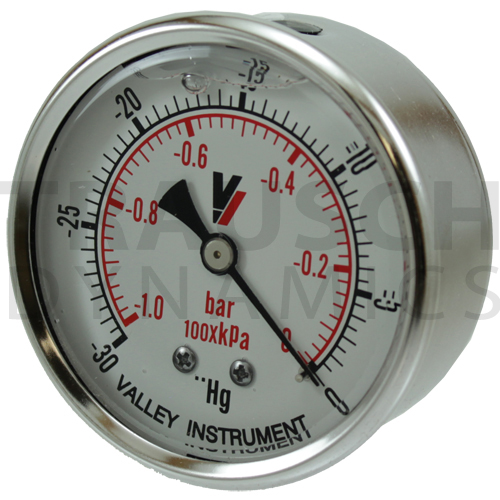

 | 3803500 | 0-30" VAC | -1 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

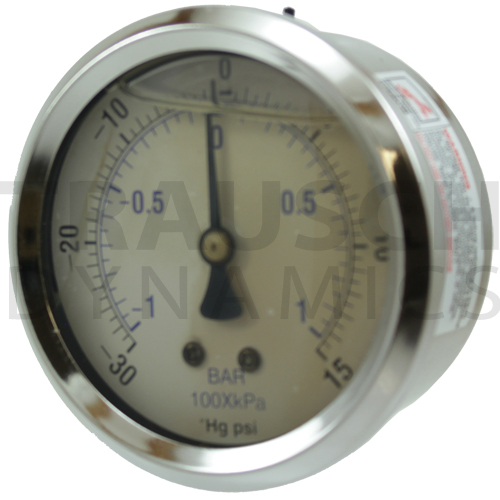

 | 3803503 | 30"-0-15 PSI | -1-0-1 Bar | 2-1/2" | 1/4" | $24.28 / EACH In stock - Ships same day | |||

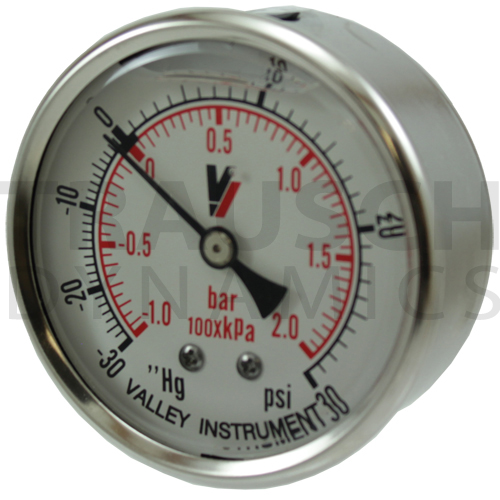

 | 3803506 | 30"-0-30 PSI | -1-0-2 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

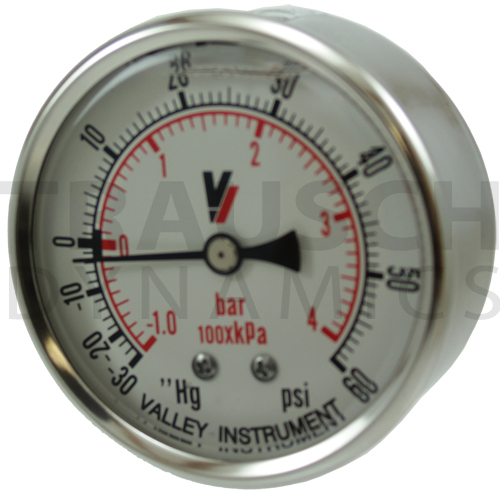

 | 3803509 | 30"-0-60 PSI | -1-0-4 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

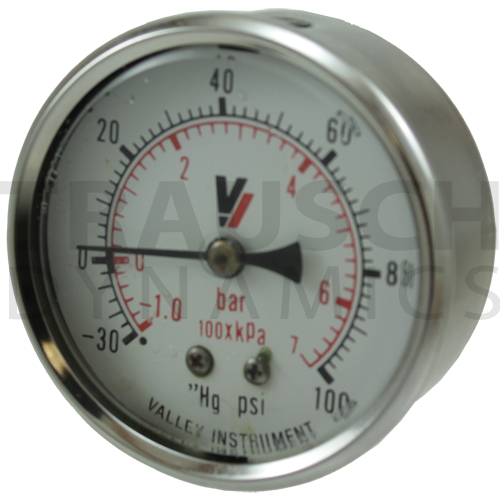

 | 3803512 | 30"-0-100 PSI | -1-0-7 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

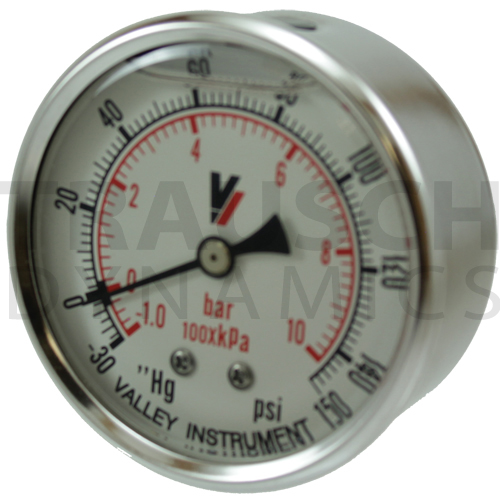

 | 3803515 | 30"-0-150 PSI | -1-0-10 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

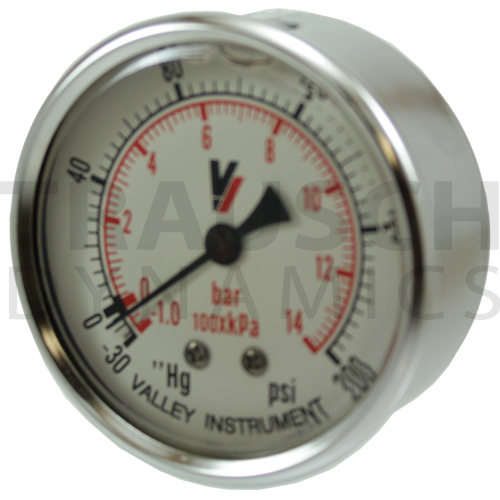

 | 3803518 | 30"-0-200 PSI | -1-0-14 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

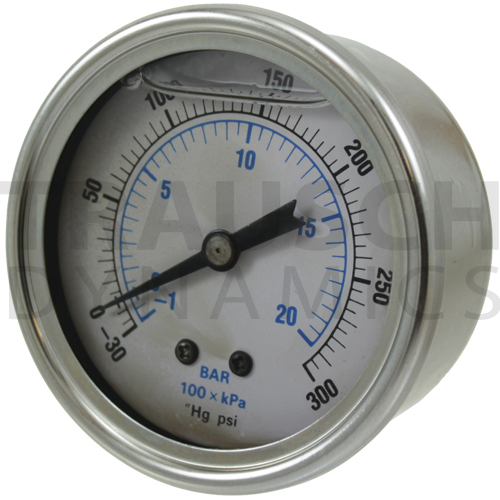

 | 3803521 | 30"-0-300 PSI | -1-0-20 Bar | 2-1/2" | 1/4" | $24.28 / EACH Usually ships in 2 week(s) | |||

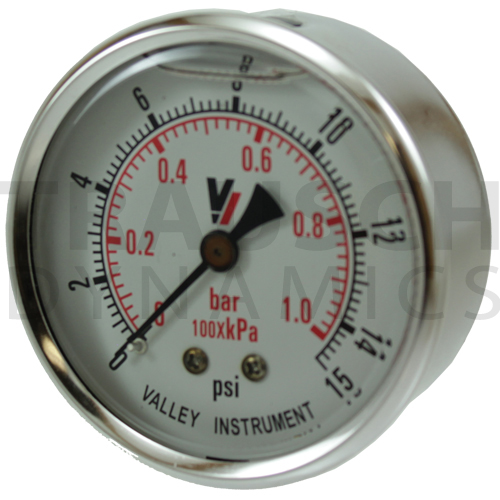

 | 3803524 | 0-15 PSI | 0-1 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

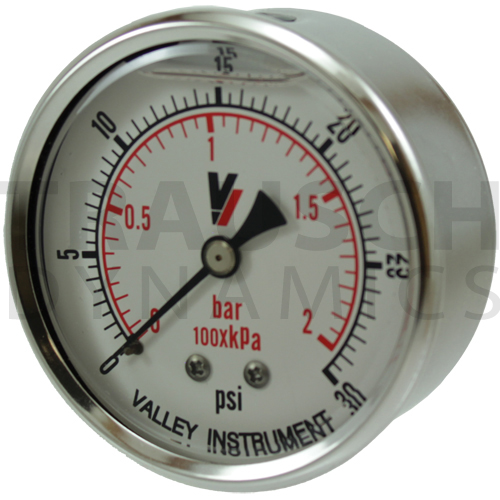

 | 3803527 | 0-30 PSI | 0-2 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

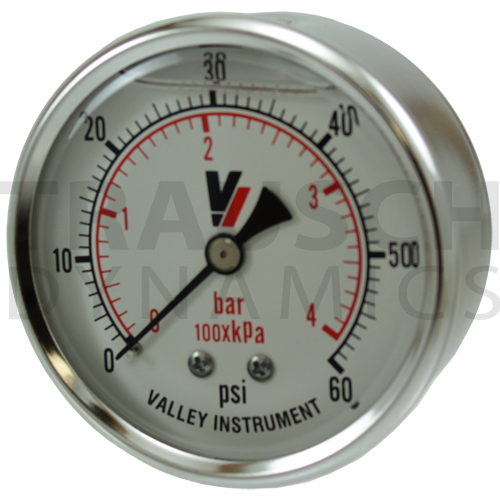

 | 3803530 | 0-60 PSI | 0-4 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

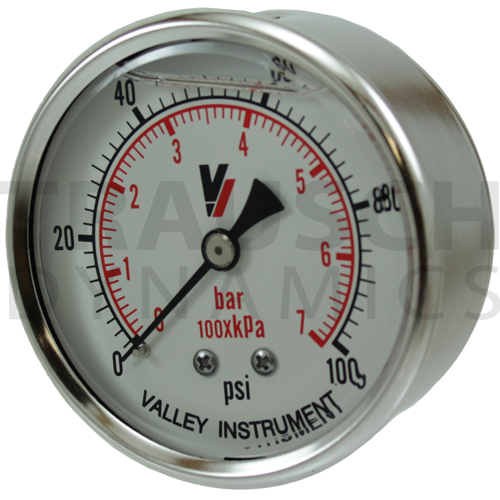

 | 3803533 | 0-100 PSI | 0-7 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

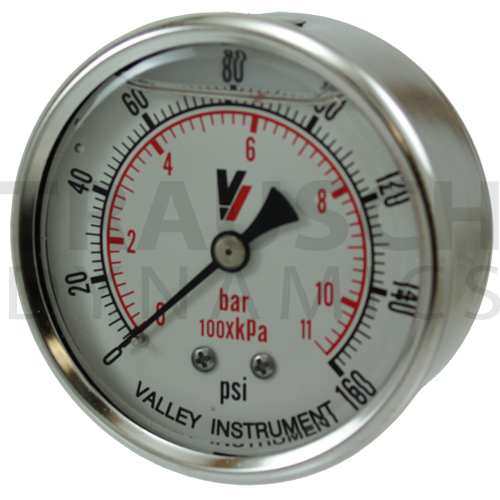

 | 3803536 | 0-160 PSI | 0-11 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

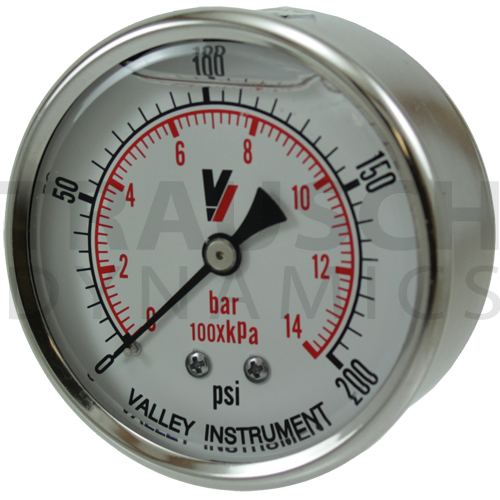

 | 3803539 | 0-200 PSI | 0-14 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day | |||

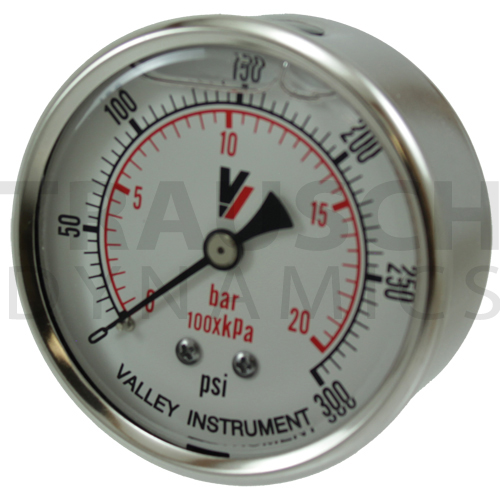

 | 3803542 | 0-300 PSI | 0-20 Bar | 2-1/2" | 1/4" | $19.84 / EACH In stock - Ships same day |
