  • Used to control direction of cylinders or motors, depending on application
  • Can be used on most mobile equipment, including ag equipment, tow trucks, tractors, and bale beds.
  • 31 GPM Maximum Flow
  • 3600 PSI Max at "P" Port
  • 4600 PSI Max at "A" or "B" Ports
  • 430 PSI Max back-pressure at "T" Port
  • Adjustable Relief Valve 1300-3000 PSI
  • DIN 12 VDC Coils, 21 Watts, 1.70 Amps
  • Switch box features easily adjustable bail mount
  • Heavy duty long bat handle momentary switches
  • Switches are color coded
  • Switch box has 3' wiring harness and 6' power cable
  • 18 gauge shielded wire
  • IP69 Deutsch Connectors
  • IP65 Coil Connectors
  • IP65 DIN Connectors
  • 10 Amp fuse kit
  • 20' wiring harness
  • 3' Valve harness
*** Slide left / right to view more ***
ImageItem #Sections# of SwitchesCircuitTank & Pressure PortsWork PortsPower BeyondSwitch ColorsPriceOrder Qty.
9504516Double Acting Cylinder1Open Center#16 SAE#12 SAENoRed $1,018.27 / EACH
Usually ships in 1 day(s)
9504517Double Acting Cylinder1Closed Center#16 SAE#12 SAEYesRed $1,026.60 / EACH
Usually ships in 1 day(s)
9504452Double Acting Cylinder2Open Center#16 SAE#12 SAENoRed / White $1,543.53 / EACH
Usually ships in 1 day(s)
9504453Double Acting Cylinder2Closed Center#16 SAE#12 SAEYesRed / White $1,551.86 / EACH
Usually ships in 1 day(s)
9504476Double Acting Cylinder3Open Center#16 SAE#12 SAENoRed / White / Blue $2,073.09 / EACH
Usually ships in 1 day(s)
9504477Double Acting Cylinder3Closed Center#16 SAE#12 SAEYesRed / White / Blue $2,081.42 / EACH
Usually ships in 1 day(s)
9504492Double Acting Cylinder4Open Center#16 SAE#12 SAENoRed / White / Blue / Green $2,605.48 / EACH
Usually ships in 1 day(s)

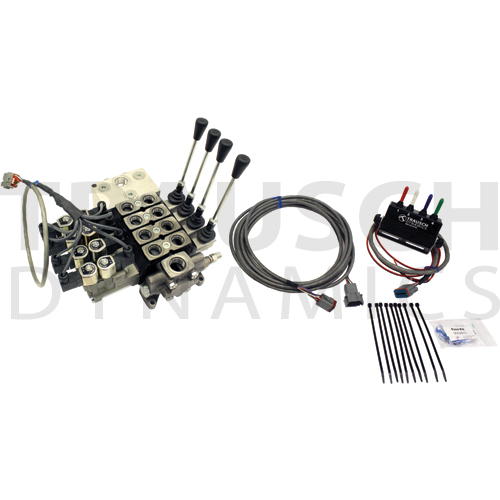

9504493Double Acting Cylinder4Closed Center#16 SAE#12 SAEYesRed / White / Blue / Green $2,613.81 / EACH
Usually ships in 1 day(s)
