21 GPM 12 VDC ELECTRIC DIRECTIONAL VALVE W/ CONTROL KITS
- Used to control direction of cylinders or motors, depending on application
- Can be used on most mobile equipment, including ag equipment, tow trucks, tractors, and bale beds.
- 21 GPM Maximum Flow
- 3600 PSI Max at "P" Port
- 4600 PSI Max at "A" or "B" Ports
- 430 PSI Max back-pressure at "T" Port
- Adjustable Relief Valve 1300-3000 PSI
- DIN 12 VDC Coils, 21 Watts, 1.70 Amps
- Switch box features easily adjustable bail mount
- Heavy duty long bat handle momentary switches
- Switches are color coded
- Switch box has 3' wiring harness and 6' power cable
- 18 gauge shielded wire
- IP69 Deutsch Connectors
- IP65 Coil Connectors
- IP65 DIN Connectors
- 10 Amp fuse kit
- 20' wiring harness
- 3' Valve harness
| Image | Item # | Sections | # of Switches | Circuit | Tank & Pressure Ports | Work Ports | Power Beyond | Switch Colors | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

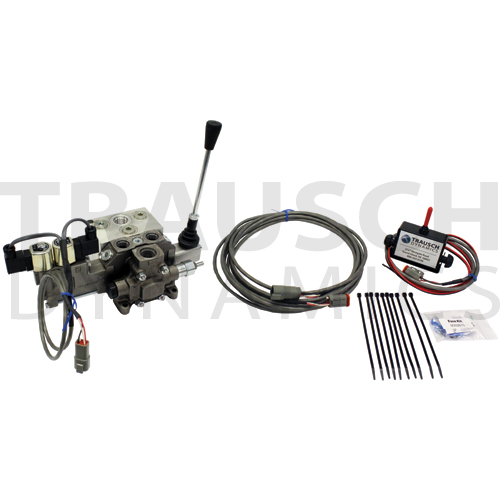

 | 9504514 | Double Acting Cylinder | 1 | Open Center | #12 SAE | #10 SAE | No | Red | $1,154.90 / EACH Usually ships in 1 day(s) | |||

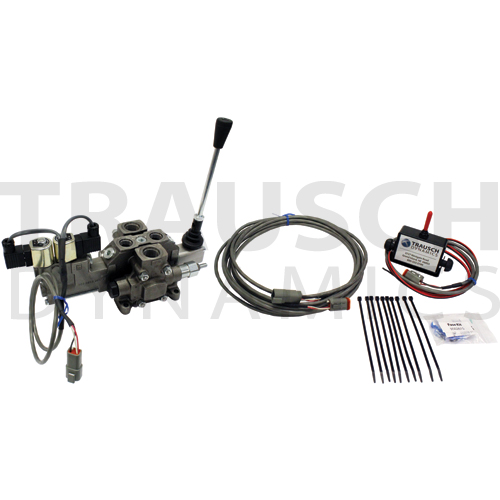

 | 9504515 | Double Acting Cylinder | 1 | Closed Center | #12 SAE | #10 SAE | Yes | Red | $1,040.71 / EACH Usually ships in 1 day(s) | |||
 | 9504450 | Double Acting Cylinder | 2 | Open Center | #12 SAE | #10 SAE | No | Red / White | $1,718.74 / EACH Usually ships in 1 day(s) | |||
 | 9504451 | Double Acting Cylinder | 2 | Closed Center | #12 SAE | #10 SAE | Yes | Red / White | $1,607.03 / EACH Usually ships in 1 day(s) | |||
 | 9504474 | Double Acting Cylinder | 3 | Open Center | #12 SAE | #10 SAE | No | Red / White / Blue | $2,309.07 / EACH Usually ships in 1 day(s) | |||
 | 9504475 | Double Acting Cylinder | 3 | Closed Center | #12 SAE | #10 SAE | Yes | Red / White / Blue | $2,185.11 / EACH Usually ships in 1 day(s) | |||
 | 9504490 | Double Acting Cylinder | 4 | Open Center | #12 SAE | #10 SAE | No | Red / White / Blue / Green | $2,894.99 / EACH Usually ships in 1 day(s) | |||
 | 9504491 | Double Acting Cylinder | 4 | Closed Center | #12 SAE | #10 SAE | Yes | Red / White / Blue / Green | $2,789.92 / EACH Usually ships in 1 day(s) |
