17 GPM 12 VDC ELECTRIC DIRECTIONAL VALVE W/ CONTROL KITS
- Used to control direction of cylinders or motors, depending on application
- Can be used on most mobile equipment, including ag equipment, tow trucks, tractors, and bale beds.
- 17 GPM Maximum Flow
- 3600 PSI Max at "P" Port
- 4600 PSI Max at "A" or "B" Ports
- 290 PSI Max back-pressure at "T" Port
- Adjustable Relief Valve 1300-3000 PSI
- Relief set at 2200 PSI
- DIN 12 VDC Coils, 34 Watts, 2.80 Amps
- Switch box features easily adjustable bail mount
- Heavy duty long bat handle momentary switches
- Switches are color coded
- Switch box has 3' wiring harness and 6' power cable
- 18 gauge shielded wire
- IP69 Deutsch Connectors
- IP65 Coil Connectors
- IP65 DIN Connectors
- 10 Amp fuse kit
- 20' wiring harness
- 3' Valve harness

Image | Item # | Sections | # of Switches | Circuit | Tank & Pressure Ports | Work Ports | Power Beyond | Switch Colors | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 9504512 | Double Acting Cylinder | 1 | Open Center | #10 SAE | #10 SAE | Yes | Red | $818.64 / EACH Usually ships in 1 day(s) | |||

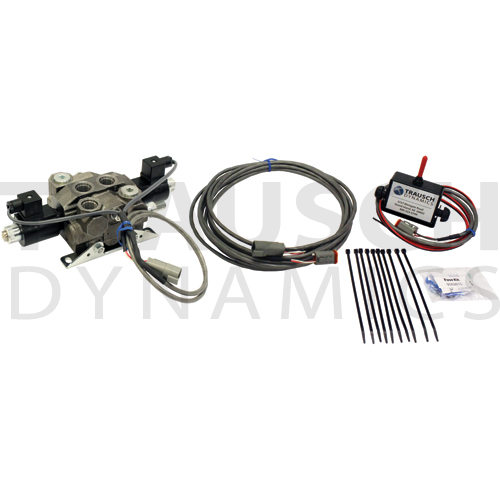

![]() | 9504513 | Double Acting Cylinder | 1 | Closed Center | #10 SAE | #10 SAE | Yes | Red | $819.59 / EACH Usually ships in 1 day(s) | |||
![]() | 9504448 | Double Acting Cylinder | 2 | Open Center | #10 SAE | #10 SAE | Yes | Red / White | $1,256.25 / EACH Usually ships in 1 day(s) | |||
![]() | 9504449 | Double Acting Cylinder | 2 | Closed Center | #10 SAE | #10 SAE | Yes | Red / White | $1,257.19 / EACH Usually ships in 1 day(s) | |||
![]() | 9504472 | Double Acting Cylinder | 3 | Open Center | #10 SAE | #10 SAE | Yes | Red / White / Blue | $1,710.43 / EACH Usually ships in 1 day(s) | |||

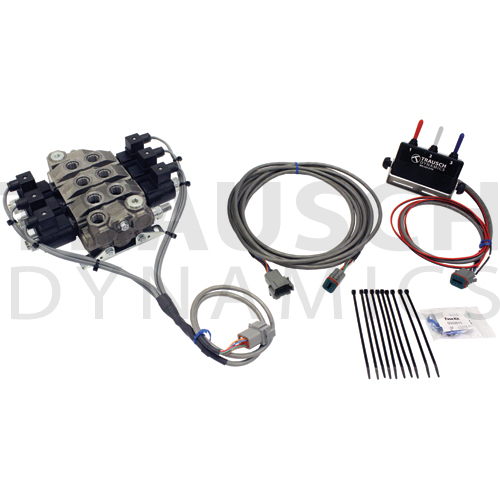

![]() | 9504473 | Double Acting Cylinder | 3 | Closed Center | #10 SAE | #10 SAE | Yes | Red / White / Blue | $1,711.38 / EACH Usually ships in 1 day(s) | |||

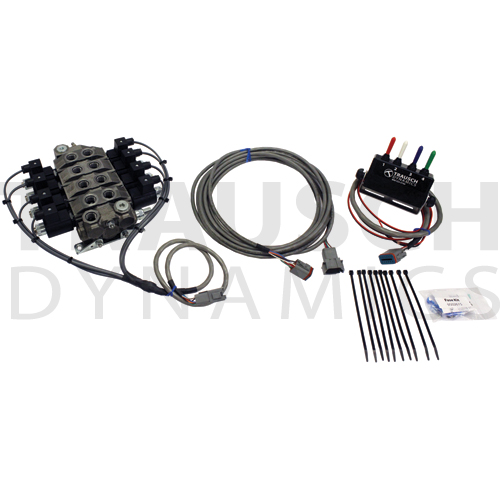

![]() | 9504488 | Double Acting Cylinder | 4 | Open Center | #10 SAE | #10 SAE | Yes | Red / White / Blue / Green | $2,170.18 / EACH Usually ships in 1 day(s) | |||
![]() | 9504489 | Double Acting Cylinder | 4 | Closed Center | #10 SAE | #10 SAE | Yes | Red / White / Blue / Green | $2,171.12 / EACH Usually ships in 1 day(s) |
