Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical poppet.

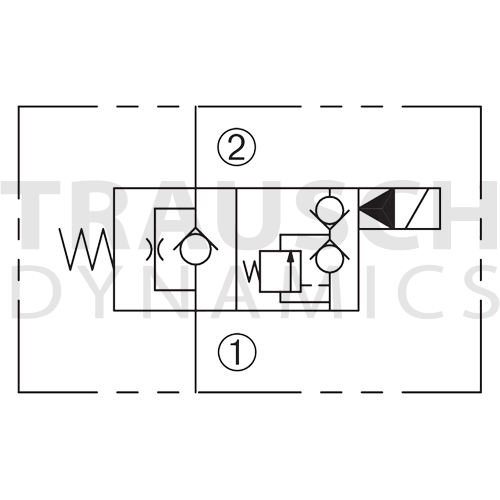

2 Way 2 Position
Normally Open

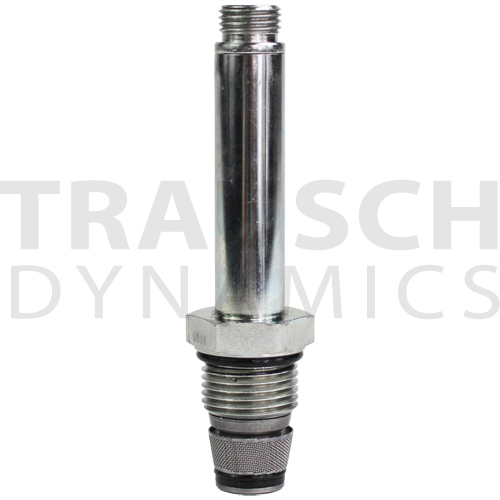

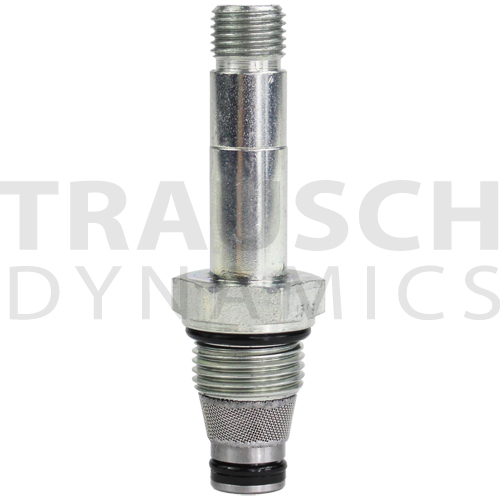

Pilot Operated Poppet
When de-energized, the poppet is open to allow flow from (2) to (1).
When Energized, the poppet closes to block flow from (2) to (1).
In this condition, the cartridge allows reverse flwo form (1) to (2) after overcoming the solenoid force of 75 PSI.
