- Mechanical Directional Control Valves
- Manual Operated

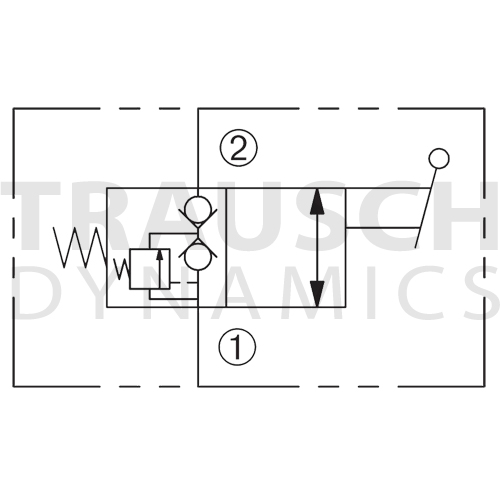

- 2 Way 2 Position Normally Closed

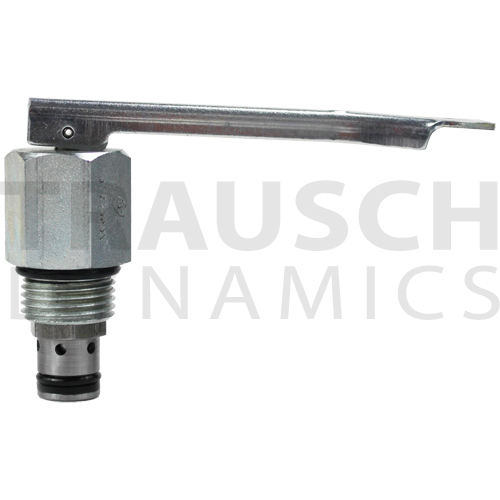

- Pull Type w/Lever
- The valve blocks flow from (2) to (1), or (1) to (2)
- When the toggle handle is actuated, fluid flows from (2) to (1), or (1) to (2)
- The cartridge allows reverse flow from (1) to (2) after overcoming the spring force of 450 PSI
- Can be actuated by pushing the toggle handle
- Chrome alloy ball for ling life
- Push or pull actuator
- Cannot Over-center detent open (safety purposes)
- Industry common cavity
