3W2P STANDARD SCREW-IN STYLE 3>2 - 1>3
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- Transmission & Brake
- 3W2P Standard Screw-In Style 3>2 - 1>3
- Direct Acting Spool

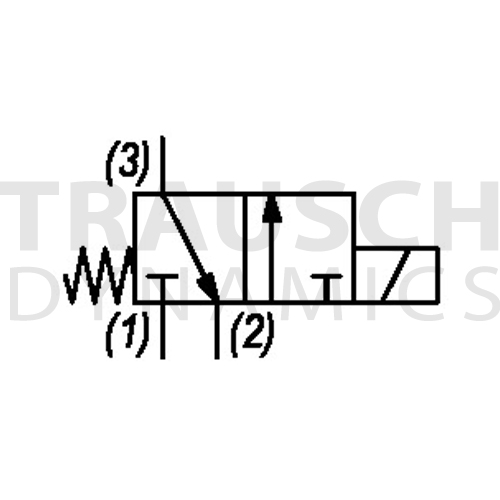

- When De-Energized, the valve blocks flow at (1) and allows flow from (3) to (2).
- When Energized the valve allows flow from (1) to (3) and blocks flow at (2).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Industry common Cavity
- Unitized, molded coin design
- Continuous duty rated solenoid
- Optional coil voltages and terminations
- Optinal "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010578 | UC-S3T-00 | 3 | 1500 | 5/8-18 | Buna | -0 | $36.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010579 | UC-S3T-V0 | 3 | 1500 | 5/8-18 | Viton | -0 | $40.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010277 | DF-S3T-00 | 8 | 1500 | 7/8-14 | Buna | -0 | $38.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010497 | DF-S3T-0M | 8 | 1500 | 7/8-14 | Buna | Detent | $66.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010498 | DF-S3T-A0 | 8 | 1500 | 7/8-14 | Buna | Screen | $40.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010499 | DF-S3T-B1 | 8 | 1500 | 7/8-14 | Buna | Non-Detent | $66.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010500 | DF-S3T-B3 | 8 | 1500 | 7/8-14 | Buna | Screen & Non-Detent | $68.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010501 | DF-S3T-B4 | 8 | 1500 | 7/8-14 | Buna | Screen & Detent | $68.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010502 | DF-S3T-V0 | 8 | 1500 | 7/8-14 | Viton | -0 | $42.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010503 | DF-S3T-V1 | 8 | 1500 | 7/8-14 | Viton | Non-Detent | $70.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010504 | DF-S3T-V3 | 8 | 1500 | 7/8-14 | Viton | Screen & Non-Detent | $72.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010505 | DF-S3T-V4 | 8 | 1500 | 7/8-14 | Viton | Screen & Detent | $72.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010506 | DF-S3T-VM | 8 | 1500 | 7/8-14 | Viton | Detent | $70.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010507 | DF-S3T-W0 | 8 | 1500 | 7/8-14 | Viton | Screen | $44.00 / EACH Usually ships in 5 week(s). Expedite available. |
