4W3P TANDEM CENTER
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 4 Way 3 Position Spool
- Tandem Center
- Direct Acting Spool
- When De-Energized, the valve allows flow between (2) and (4), and blocks flow at (1) and (3).
- When outer coil (S1) is Energized the valve allows flow from (2) to (3) and from (1) to (4).
- When inner coil (S2) is Energized, the valve allows flow from (2) to (1) and from (3) to (4).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common Cavity
- Unitized, molded coin design
- Continuous duty rated solenoid
- Optional coil voltages and terminations
- Optinal "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010350 | PQ-S4N-00 | 5 | 3000 | 3/4-16 | Buna | - | $72.75 / EACH In Stock - Ships same day | |||
 | 7010367 | PQ-S4N-0P | 5 | 3000 | 3/4-16 | Buna | Push Override | $87.75 / EACH Usually ships in 4 week(s). Expedite available. | |||

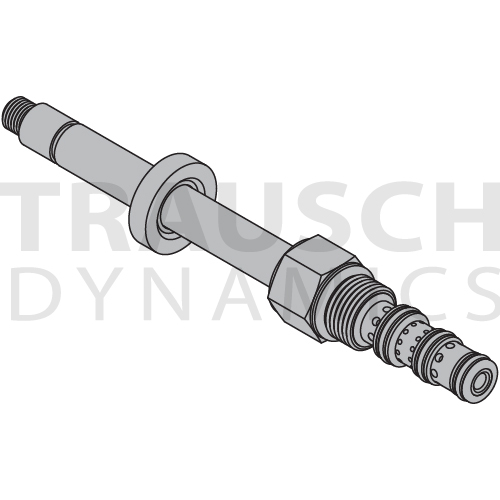

 | 7010368 | PQ-S4N-V0 | 5 | 3000 | 3/4-16 | Viton | - | $76.25 / EACH Usually ships in 4 week(s). Expedite available. | |||

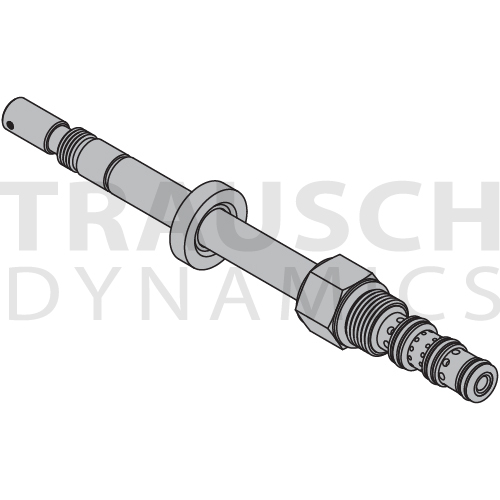

 | 7010380 | PQ-S4N-VP | 5 | 3000 | 3/4-16 | Viton | Push Override | $91.25 / EACH Usually ships in 4 week(s). Expedite available. | |||
 | 7010401 | DG-S4N-00 | 6 | 3000 | 7/8-14 | Buna | - | $75.00 / EACH In Stock - Ships same day | |||
 | 7010638 | DG-S4N-0M | 6 | 3000 | 7/8-14 | Buna | Detent | $102.50 / EACH Usually ships in 4 week(s). Expedite available. | |||

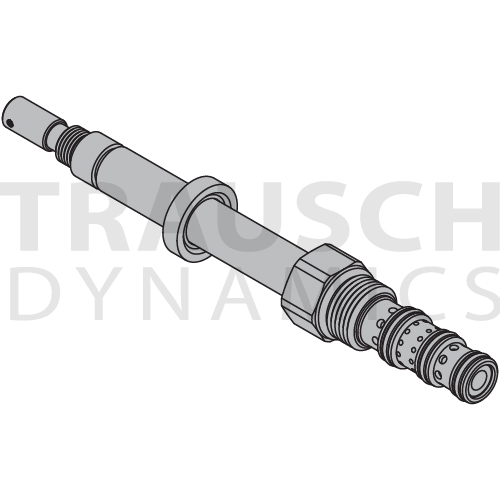

 | 7010639 | DG-S4N-0P | 6 | 3000 | 7/8-14 | Buna | Push Override | $92.50 / EACH Usually ships in 4 week(s). Expedite available. | |||

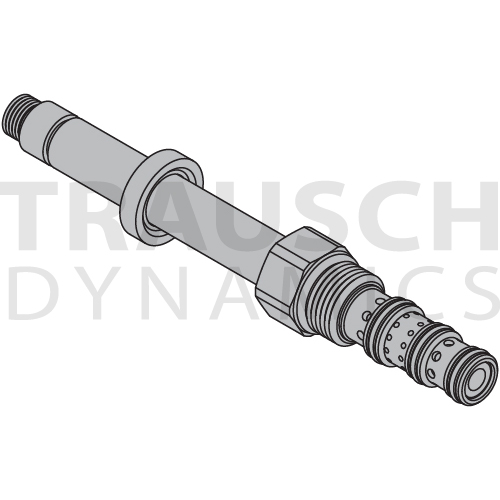

 | 7010640 | DG-S4N-V0 | 6 | 3000 | 7/8-14 | Viton | - | $78.50 / EACH Usually ships in 4 week(s). Expedite available. | |||
 | 7010641 | DG-S4N-VM | 6 | 3000 | 7/8-14 | Viton | Detent | $106.00 / EACH Usually ships in 4 week(s). Expedite available. | |||
 | 7010642 | DG-S4N-VP | 6 | 3000 | 7/8-14 | Viton | Push Override | $96.00 / EACH Usually ships in 4 week(s). Expedite available. | |||
 | 7010352 | PQ-S4R-00 | 2.5 | 3000 | 3/4-16 | Buna | - | $76.75 / EACH Usually ships in 4 week(s). Expedite available. | |||

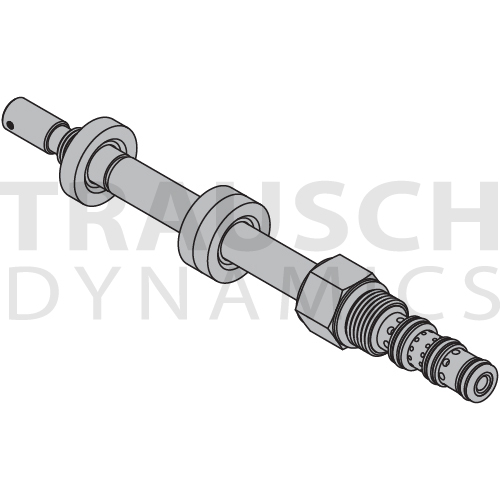

 | 7010356 | PQ-S4R-0P | 2.5 | 3000 | 3/4-16 | Buna | Push Override | $91.75 / EACH Usually ships in 4 week(s). Expedite available. | |||

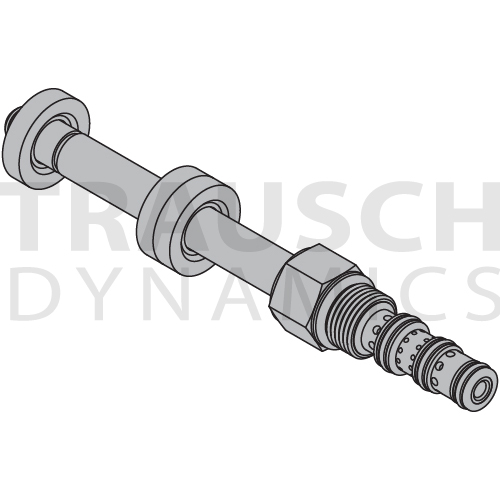

 | 7010357 | PQ-S4R-V0 | 2.5 | 3000 | 3/4-16 | Viton | - | $80.25 / EACH Usually ships in 4 week(s). Expedite available. | |||
 | 7010358 | PQ-S4R-VP | 2.5 | 3000 | 3/4-16 | Viton | Push Override | $95.25 / EACH Usually ships in 4 week(s). Expedite available. | |||

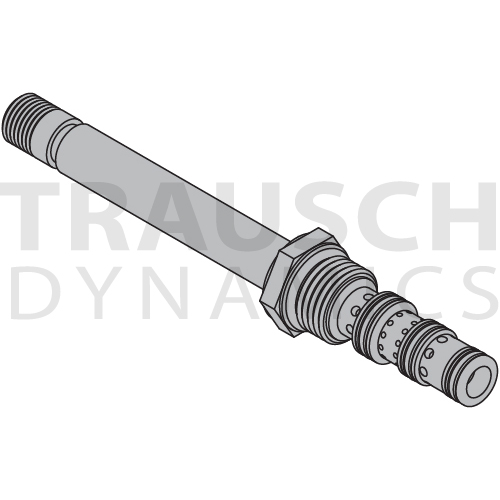

 | 7010435 | VQ-S4R-00 | 3 | 3000 | 3/4-16 | Buna | - | $70.00 / EACH Usually ships in 4 week(s). Expedite available. |
