4W3P CLOSED CENTER
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 4 Way 3 Position Spool
- Closed Center
- Direct Acting Spool

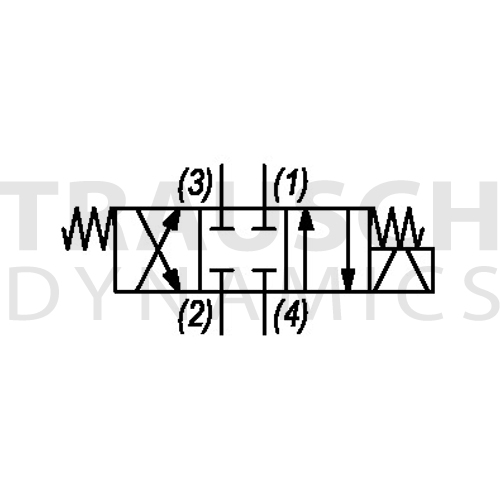

- When De-Energized, the valve blocks flow to all ports.
- When outer coil (S1) is Energized the valve allows flow from (2) to (1) and from (3) to (4).
- When inner coil (S2) is Energized, the valve allows flow from (2) to (3) and from (1) to (4).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Optional manual "push only" override
- Industry common Cavity
- Unitized, molded coin design
- Continuous duty rated solenoid
- Optional coil voltages and terminations
- Optinal "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

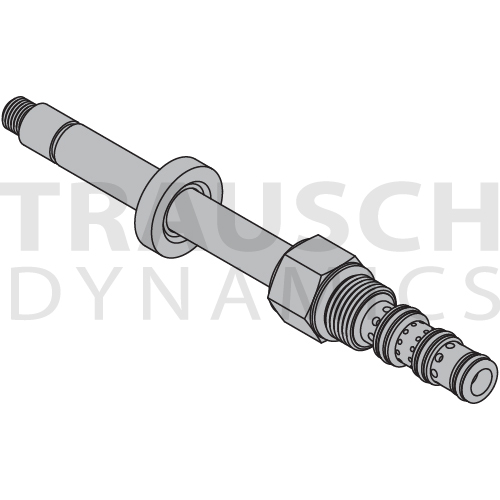

 | 7010351 | PQ-S4P-00 | 3.5 | 3000 | 3/4-16 | Buna | - | $92.75 / EACH Usually ships in 11 week(s) | |||

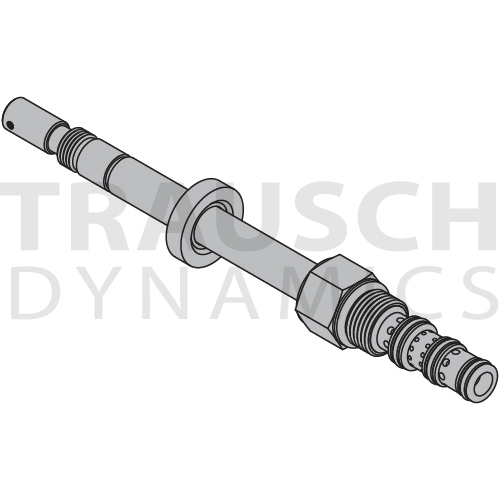

 | 7010359 | PQ-S4P-0P | 3.5 | 3000 | 3/4-16 | Buna | Push Override | $134.75 / EACH Usually ships in 11 week(s) | |||
 | 7010360 | PQ-S4P-V0 | 3.5 | 3000 | 3/4-16 | Viton | - | $99.00 / EACH Usually ships in 11 week(s) | |||
 | 7010361 | PQ-S4P-VP | 3.5 | 3000 | 3/4-16 | Viton | Push Override | $141.00 / EACH Usually ships in 11 week(s) | |||

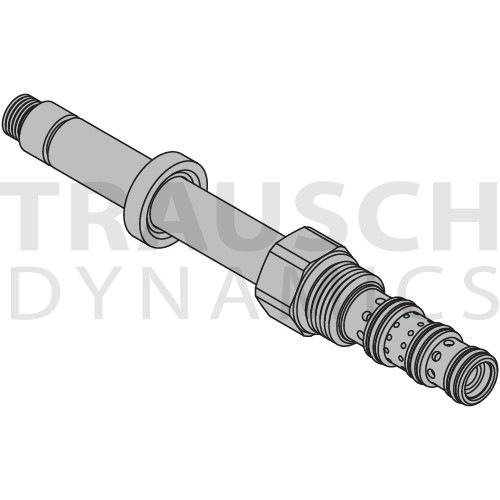

 | 7010402 | DG-S4P-00 | 6 | 3000 | 3/4-16 | Buna | - | $97.00 / EACH In stock - Ships same day | |||
 | 7010409 | DG-S4P-0M | 6 | 3000 | 3/4-16 | Buna | Detent | $153.00 / EACH Usually ships in 11 week(s) | |||
 | 7010406 | DG-S4P-0P | 6 | 3000 | 3/4-16 | Buna | Push Override | $139.00 / EACH Usually ships in 11 week(s) | |||
 | 7010411 | DG-S4P-V0 | 6 | 3000 | 3/4-16 | Viton | - | $103.25 / EACH Usually ships in 11 week(s) | |||

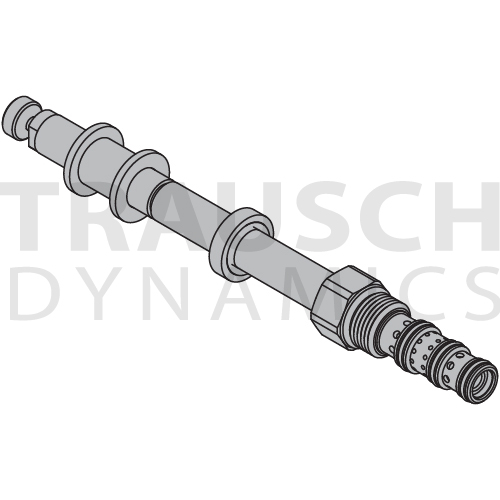

 | 7010417 | DG-S4P-VM | 6 | 3000 | 3/4-16 | Viton | Detent | $159.25 / EACH Usually ships in 11 week(s) | |||

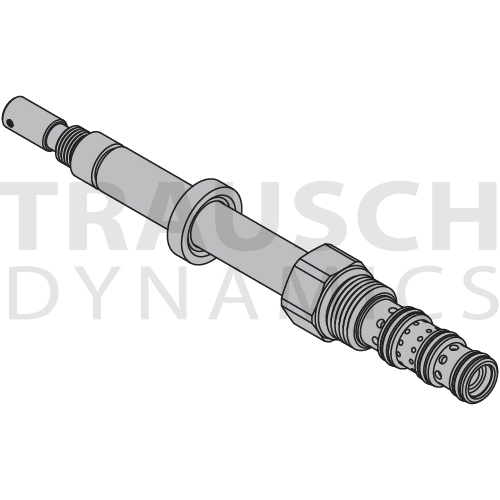

 | 7010418 | DG-S4P-VP | 6 | 3000 | 3/4-16 | Viton | Push Override | $145.25 / EACH Usually ships in 11 week(s) | |||

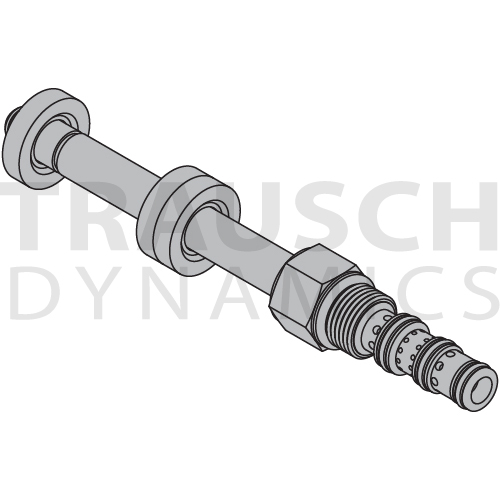

 | 7010419 | PQ-S4Q-00 | 5 | 3000 | 3/4-16 | Buna | - | $94.75 / EACH Usually ships in 11 week(s) | |||
 | 7010420 | PQ-S4Q-0P | 5 | 3000 | 3/4-16 | Buna | Push Override | $136.75 / EACH Usually ships in 11 week(s) | |||
 | 7010421 | PQ-S4Q-V0 | 5 | 3000 | 3/4-16 | Viton | - | $101.00 / EACH Usually ships in 11 week(s) | |||

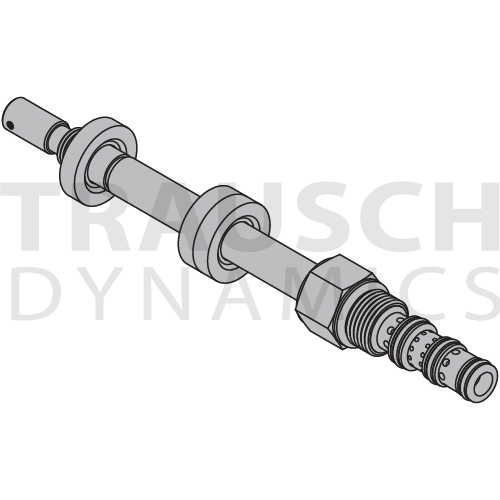

 | 7010422 | PQ-S4Q-VP | 5 | 3000 | 3/4-16 | Viton | Push Override | $143.00 / EACH Usually ships in 11 week(s) | |||

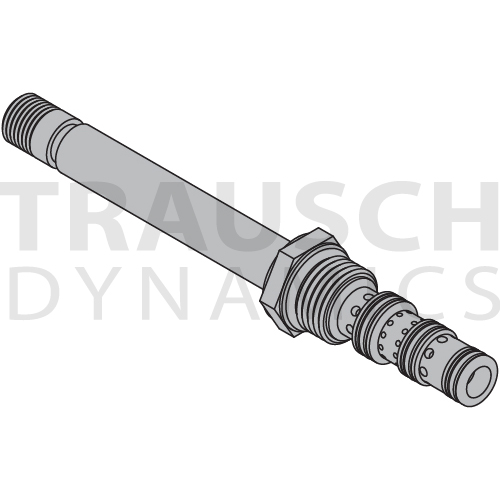

 | 7010354 | VQ-S4Q-00 | 8 | 3000 | 7/8-14 | Buna | - | $81.50 / EACH Usually ships in 11 week(s) |
