4W2P ENERGIZED TO BLOCK
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 4 Way 2 Position
- Direct Acting Spool
- Energized to Block
- When De-Energized, the valve allows flow from (2) and (1), and from (3) to (4).
- When Energized, the valve blocks flow at all ports.
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common Cavity
- Unitized, molded coin design
- Continuous duty rated solenoid
- Optional coil voltages and terminations
- Optinal "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

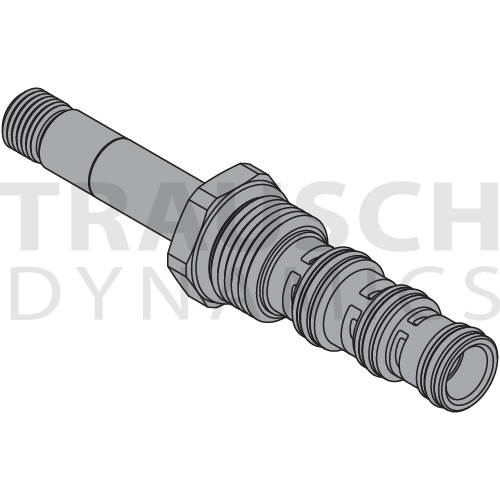

 | 7010381 | DG-S4F-00 | 6 | 3000 | 7/8-14 | Buna | - | $50.25 / EACH In stock - Ships same day | |||

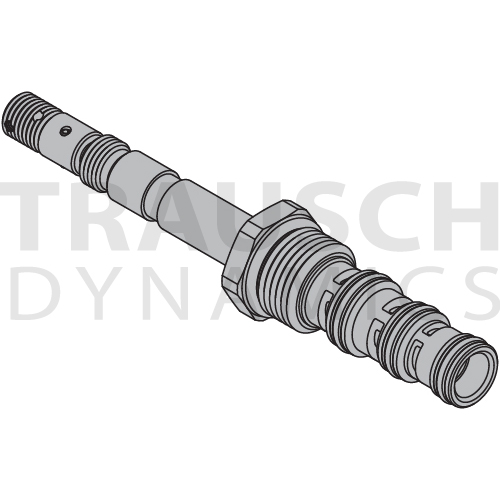

 | 7010623 | DG-S4F-0M | 6 | 3000 | 7/8-14 | Buna | Detent | $78.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010624 | DG-S4F-B1 | 6 | 3000 | 7/8-14 | Buna | Non-Detent | $78.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010625 | DG-S4F-V0 | 6 | 3000 | 7/8-14 | Viton | - | $56.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010626 | DG-S4F-V1 | 6 | 3000 | 7/8-14 | Viton | Non-Detent | $84.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010627 | DG-S4F-VM | 6 | 3000 | 7/8-14 | Viton | Detent | $84.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010628 | HG-S4F-00 | 6 | 4000 | 7/8-14 | Buna | - | $62.00 / EACH Usually ships in 5 week(s). Expedite available. | |||

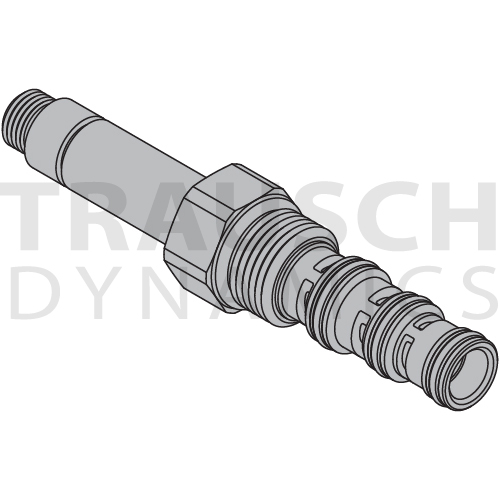

 | 7010629 | HG-S4F-V0 | 6 | 4000 | 7/8-14 | Viton | - | $68.25 / EACH Usually ships in 5 week(s). Expedite available. |
