4W2P CRISS-CROSS
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 4 Way 2 Position
- Direct Acting Spool
- Criss-Cross
- When De-Energized, the valve allows flow from (1) to (4) and (2) to (3).
- When Energized, the valve allows flow from (2) to (1) and (3) to (4).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common Cavity
- Unitized, molded coin design
- Continuous duty rated solenoid
- Optional coil voltages and terminations
- Optinal "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010297 | MD-S4A-00 | 1 | 4000 | 5/8-18 | Buna | - | $49.00 / EACH In stock - Ships same day | |||
 | 7010584 | UD-S4A-00 | 1 | 4000 | 5/8-18 | Buna | - | $45.50 / EACH Usually ships in 5 week(s). Expedite available. | |||

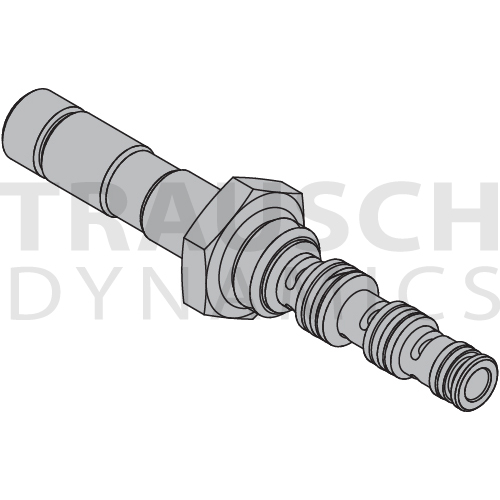

 | 7010585 | UD-S4A-V0 | 1 | 4000 | 5/8-18 | Viton | - | $51.75 / EACH Usually ships in 5 week(s). Expedite available. | |||

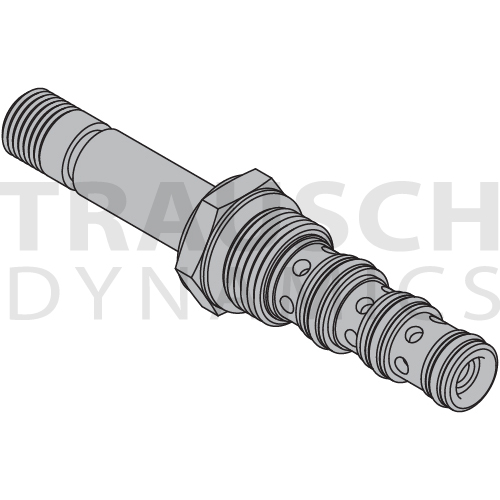

 | 7010327 | PQ-S4A-00 | 4 | 3000 | 3/4-16 | Buna | - | $43.25 / EACH In stock - Ships same day | |||
 | 7010328 | PQ-S4A-0M | 4 | 3000 | 3/4-16 | Buna | Override & Detent | $70.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010524 | PQ-S4A-B1 | 4 | 3000 | 3/4-16 | Buna | Override & Non-Detent | $70.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010525 | PQ-S4A-V0 | 4 | 3000 | 3/4-16 | Viton | - | $49.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010526 | PQ-S4A-V1 | 4 | 3000 | 3/4-16 | Viton | Override & Non-Detent | $76.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010527 | PQ-S4A-VM | 4 | 3000 | 3/4-16 | Viton | Override & Detent | $76.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010371 | DG-S4A-00 | 10 | 3500 | 7/8-14 | Buna | - | $49.00 / EACH In stock - Ships same day | |||
 | 7010372 | DG-S4A-0M | 10 | 3500 | 7/8-14 | Buna | Override & Detent | $77.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010369 | DG-S4A-B1 | 10 | 3500 | 7/8-14 | Buna | Override & Non-Detent | $77.00 / EACH Usually ships in 5 week(s). Expedite available. | |||

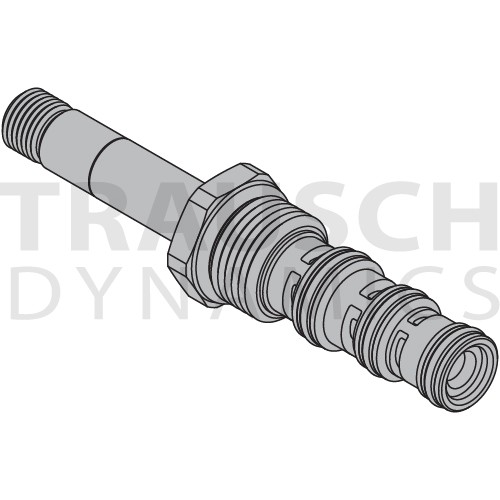

 | 7010376 | DG-S4A-V0 | 10 | 3500 | 7/8-14 | Viton | - | $55.25 / EACH Usually ships in 5 week(s). Expedite available. | |||

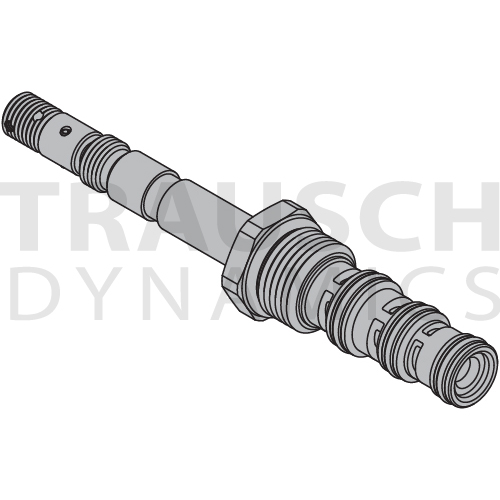

 | 7010518 | DG-S4A-V1 | 10 | 3500 | 7/8-14 | Viton | Override & Non-Detent | $83.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010519 | DG-S4A-VM | 10 | 3500 | 7/8-14 | Viton | Override & Detent | $83.25 / EACH Usually ships in 5 week(s). Expedite available. |
