  • Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
  • 4 Way 2 Position
  • Direct Acting Spool
  • Criss-Cross (Reversed)
  • When De-Energized, the valve allows flow from (3) and (2), and from (4) and (2).
  • When Energized, the valve allows flow from (1) to (2) and from (4) to (3).
  • Hardened parts for long life
  • Efficient wet-armature construction
  • Cartridges are voltage interchangeable
  • Manual override option
  • Industry common Cavity
  • Unitized, molded coin design
  • Continuous duty rated solenoid
  • Optional coil voltages and terminations
  • Optinal "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
  • Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealsOptionsPriceOrder Qty.

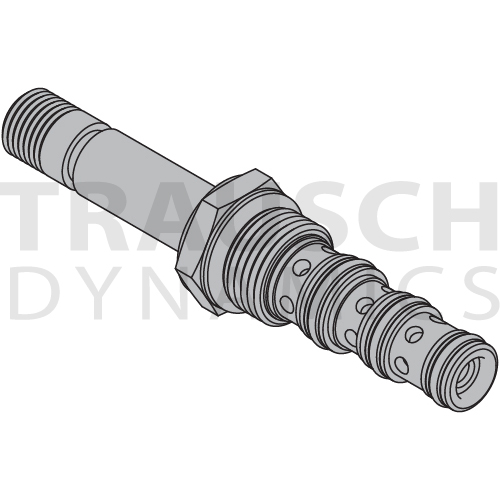

7010346PQ-S4D-002.530003/4-16Buna- $36.25 / EACH
In Stock - Ships same day
7010347PQ-S4D-0M2.530003/4-16BunaDetent $58.75 / EACH
Usually ships in 5 week(s).
Expedite available.

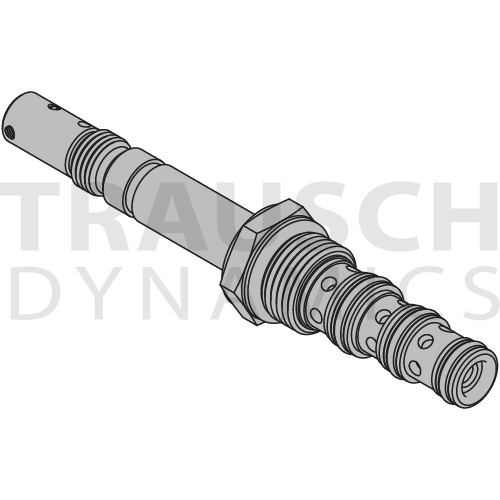

7010552PQ-S4D-B12.530003/4-16BunaNon-Detent $54.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010553PQ-S4D-V02.530003/4-16Viton- $39.75 / EACH
Usually ships in 5 week(s).
Expedite available.
7010554PQ-S4D-V12.530003/4-16VitonNon-Detent $57.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7010555PQ-S4D-VM2.530003/4-16VitonDetent $57.50 / EACH
Usually ships in 5 week(s).
Expedite available.

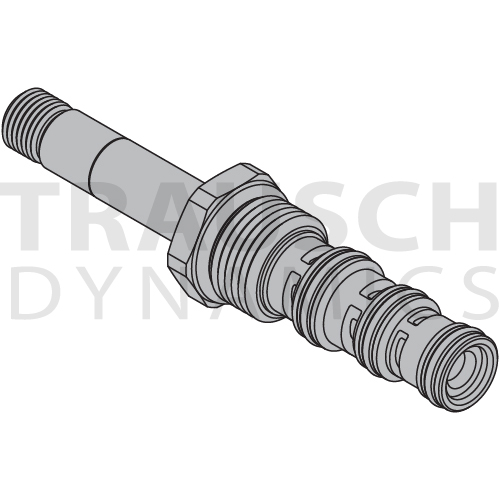

7010392DG-S4D-00630007/8-14Buna- $39.50 / EACH
In Stock - Ships same day

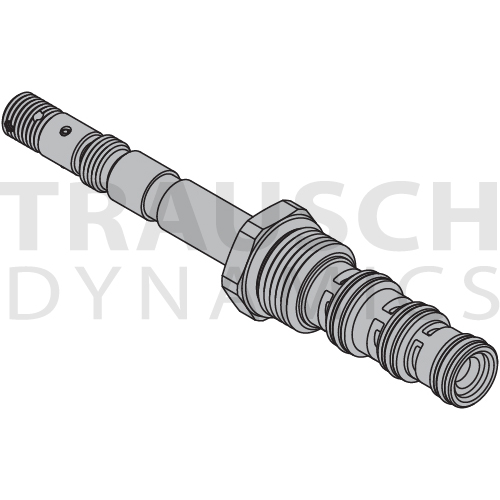

7010389DG-S4D-0M630007/8-14BunaDetent $62.50 / EACH
In Stock - Ships same day
7010562DG-S4D-B1630007/8-14BunaNon-Detent $62.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7010563DG-S4D-V0630007/8-14Viton- $43.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010564DG-S4D-V1630007/8-14VitonNon-Detent $66.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010565DG-S4D-VM630007/8-14VitonDetent $66.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010557HG-S4D-00840007/8-14Buna- $47.00 / EACH
Usually ships in 5 week(s).
Expedite available.

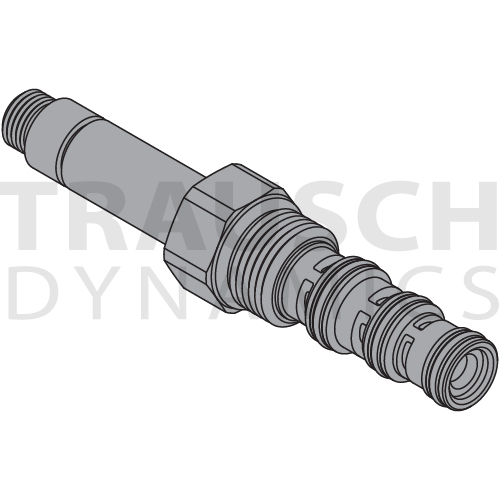

7010558HG-S4D-V0840007/8-14Viton- $50.50 / EACH
Usually ships in 5 week(s).
Expedite available.
