  • Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
  • 4 Way 2 Position
  • Direct Acting Spool
  • Closed Center
  • When De-Energized, the valve blocks flow at all ports.
  • When Energized, the valve allows flow from (2) to (1) and (3) to (4).
  • Hardened parts for long life
  • Efficient wet-armature construction
  • Cartridges are voltage interchangeable
  • Manual override option
  • Industry common Cavity
  • Unitized, molded coin design
  • Continuous duty rated solenoid
  • Optional coil voltages and terminations
  • Optinal "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealsOptionsPriceOrder Qty.
7010306MD-S4B-001.540005/8-18Buna Seals $33.25 / EACH
Usually ships in 4 week(s).
Expedite available.

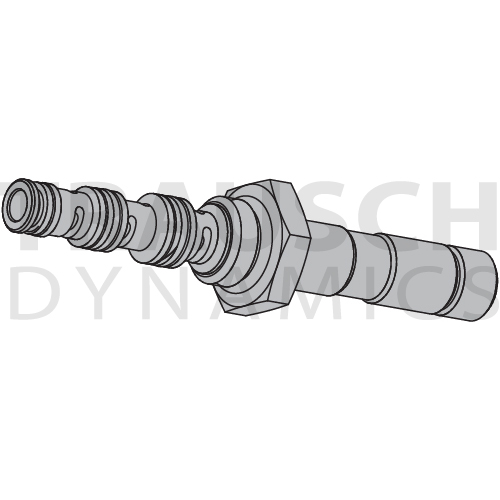

7010543UD-S4B-001.540005/8-18Buna Seals $34.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7010544UD-S4B-V01.540005/8-18Viton Seals $38.00 / EACH
Usually ships in 4 week(s).
Expedite available.

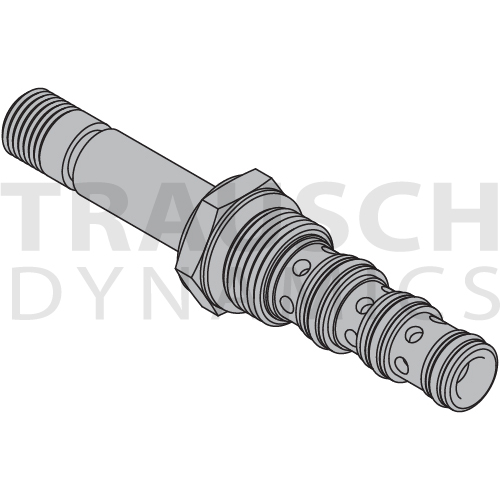

7010334PQ-S4B-00430003/4-16Buna Seals $34.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7010335PQ-S4B-0M430003/4-16Buna SealsOverride & Detent $52.25 / EACH
Usually ships in 4 week(s).
Expedite available.

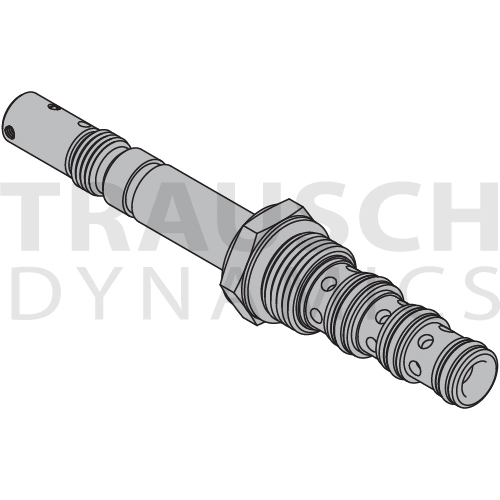

7010336PQ-S4B-B1430003/4-16Buna SealsOverride & Non-Detent $52.25 / EACH
Usually ships in 4 week(s).
Expedite available.
7010337PQ-S4B-V0430003/4-16Viton Seals $38.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7010338PQ-S4B-V1430003/4-16Viton SealsOverride & Non-Detent $55.75 / EACH
Usually ships in 4 week(s).
Expedite available.
7010345PQ-S4B-VM430003/4-16Viton SealsOverride & Detent $55.75 / EACH
Usually ships in 4 week(s).
Expedite available.
7010378DG-S4B-001030007/8-14Buna Seals $36.50 / EACH
In Stock - Ships same day
7010531DG-S4B-0M1030007/8-14Buna SealsOverride & Detent $59.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7010532DG-S4B-B11030007/8-14Buna SealsOverride & Non-Detent $59.50 / EACH
Usually ships in 4 week(s).
Expedite available.

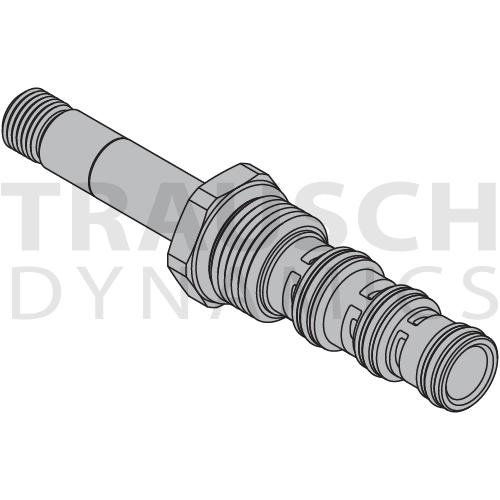

7010533DG-S4B-V01030007/8-14Viton Seals $40.00 / EACH
Usually ships in 4 week(s).
Expedite available.

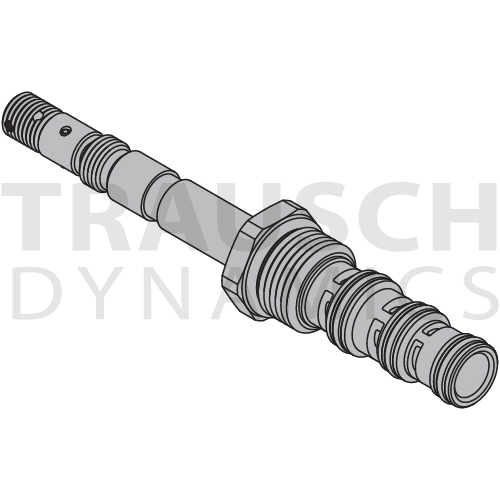

7010534DG-S4B-V11030007/8-14Viton SealsOverride & Non-Detent $63.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7010535DG-S4B-VM1030007/8-14Viton SealsOverride & Detent $63.00 / EACH
Usually ships in 4 week(s).
Expedite available.
   Page of 2
