3W2P SELECTOR FLOW 3>2 - 3>1
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 3 Way 2 Position
- Direct Acting Spool
- When de-energized, the valve allows flow from (3) to (2) and blocks flow at port (1).
- When Energized, the valve allows flow from (3) to (1) and blocks flow at port (2).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltage and terminations
- Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010254 | PP-S3B-00 | 2.5 | 3000 | 3/4-16 | Buna | - | $37.75 / EACH Usually ships in 11 week(s) | |||
 | 7010255 | PP-S3B-0M | 2.5 | 3000 | 3/4-16 | Buna | Override & Detent | $64.75 / EACH Usually ships in 11 week(s) | |||
 | 7010256 | PP-S3B-B1 | 2.5 | 3000 | 3/4-16 | Buna | Override & Non-Detent | $64.75 / EACH Usually ships in 11 week(s) | |||
 | 7010257 | PP-S3B-V0 | 2.5 | 3000 | 3/4-16 | Viton | - | $41.75 / EACH Usually ships in 11 week(s) | |||

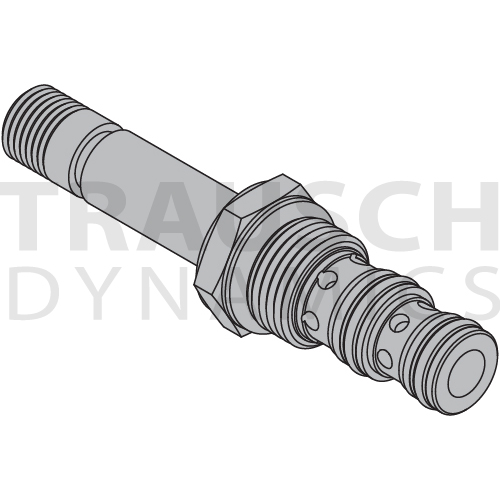

 | 7010258 | PP-S3B-V1 | 2.5 | 3000 | 3/4-16 | Viton | Override & Non-Detent | $68.75 / EACH Usually ships in 11 week(s) | |||

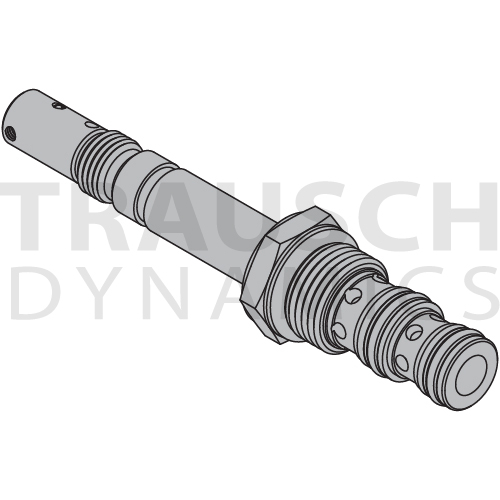

 | 7010259 | PP-S3B-VM | 2.5 | 3000 | 3/4-16 | Viton | Override & Detent | $68.75 / EACH Usually ships in 11 week(s) | |||
 | 7010276 | DF-S3B-00 | 8 | 3000 | 7/8-14 | Buna | - | $42.50 / EACH In stock - Ships same day | |||
 | 7010263 | DF-S3B-0M | 8 | 3000 | 7/8-14 | Buna | Override & Detent | $70.50 / EACH Usually ships in 11 week(s) | |||
 | 7010241 | DF-S3B-A0 | 8 | 3000 | 7/8-14 | Buna | Screen | $44.50 / EACH Usually ships in 11 week(s) | |||

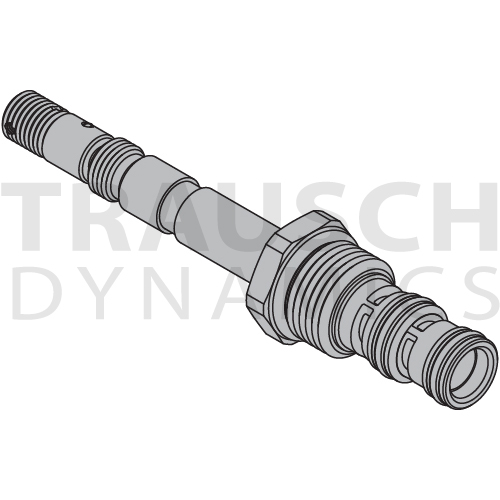

 | 7010245 | DF-S3B-B1 | 8 | 3000 | 7/8-14 | Buna | Override & Non-Detent | $70.50 / EACH Usually ships in 11 week(s) | |||
 | 7010250 | DF-S3B-B3 | 8 | 3000 | 7/8-14 | Buna | Screen, Override & Non-Detent | $72.50 / EACH Usually ships in 11 week(s) | |||
 | 7010251 | DF-S3B-B4 | 8 | 3000 | 7/8-14 | Buna | Screen, Override & Detent | $72.50 / EACH Usually ships in 11 week(s) | |||

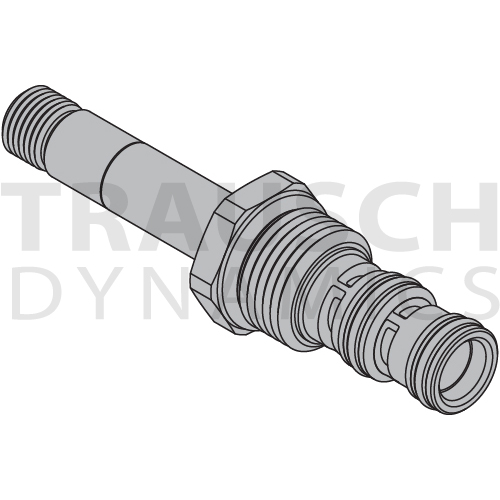

 | 7010252 | DF-S3B-V0 | 8 | 3000 | 7/8-14 | Viton | - | $46.50 / EACH Usually ships in 11 week(s) | |||
 | 7010253 | DF-S3B-V1 | 8 | 3000 | 7/8-14 | Viton | Override & Non-Detent | $74.50 / EACH Usually ships in 11 week(s) | |||
 | 7010260 | DF-S3B-V3 | 8 | 3000 | 7/8-14 | Viton | Screen, Override & Non-Detent | $76.50 / EACH Usually ships in 11 week(s) |
