3W2P SELECTOR FLOW 2>3 - 2>1
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 3 Way 2 Position
- Direct Acting Spool

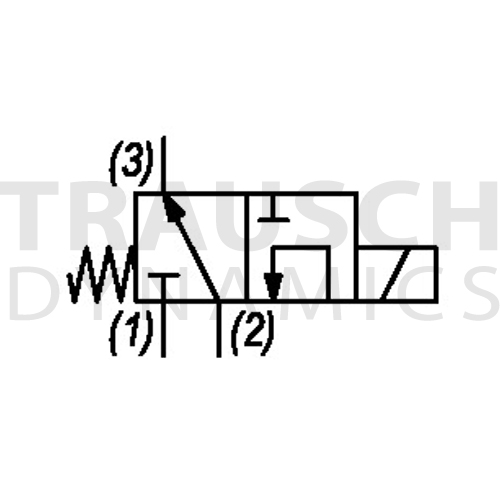

- When de-energized, the valve allows flow from (2) to (3) and blocks flow at port (1).
- When Energized, the valve allows flow from (2) to (1) and blocks flow at port (3).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltage and terminations
- Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010247 | PP-S3X-00 | 3 | 3000 | 3/4-16 | Buna | - | $42.50 / EACH In stock - Ships same day | |||
 | 7010508 | PP-S3X-0M | 3 | 3000 | 3/4-16 | Buna | Override & Detent | $69.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010509 | PP-S3X-A0 | 3 | 3000 | 3/4-16 | Buna | Screen | $44.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010510 | PP-S3X-B1 | 3 | 3000 | 3/4-16 | Buna | Override & Non-Detent | $69.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010511 | PP-S3X-B3 | 3 | 3000 | 3/4-16 | Buna | Screen, Override & Non-Detent | $71.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010512 | PP-S3X-B4 | 3 | 3000 | 3/4-16 | Buna | Screen, Override & Detent | $71.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010246 | PP-S3X-V0 | 3 | 3000 | 3/4-16 | Viton | - | $46.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010513 | PP-S3X-V1 | 3 | 3000 | 3/4-16 | Viton | Override & Non-Detent | $73.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010514 | PP-S3X-V3 | 3 | 3000 | 3/4-16 | Viton | Screen, Override & Non-Detent | $73.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010515 | PP-S3X-V4 | 3 | 3000 | 3/4-16 | Viton | Screen, Override & Detent | $75.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010516 | PP-S3X-VM | 3 | 3000 | 3/4-16 | Viton | Override & Detent | $75.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010517 | PP-S3X-W0 | 3 | 3000 | 3/4-16 | Viton | Screen | $48.50 / EACH Usually ships in 5 week(s). Expedite available. |
