2W2P NORMALLY OPEN, REVERSE FLOW DE-ENERGIZED - PILOT OPERATED POPPET
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical poppet.
- 2 Way 2 Position
- Normally Open
- Reverse Flow De-Energized - Pilot Operated Poppet
- When de-energized, the valve allows flow from (1) to (2) or (2) to (1).
- When Energized, the valve blocks flow from (1) to (2) and allows flow from (2) to (1).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltage and terminations
- Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010078 | PB-S2D-00 | 10 | 3500 | 3/4-16 | Buna | - | $52.50 / EACH Usually ships in 11 week(s) | |||
 | 7010075 | PB-S2D-0M | 10 | 3500 | 3/4-16 | Buna | Override & Detent | $69.50 / EACH Usually ships in 11 week(s) | |||
 | 7010076 | PB-S2D-0K | 10 | 3500 | 3/4-16 | Buna | Override Knob | $72.50 / EACH Usually ships in 11 week(s) | |||
 | 7010079 | PB-S2D-A0 | 10 | 3500 | 3/4-16 | Buna | Screen | $54.50 / EACH In stock - Ships same day | |||
 | 7010077 | PB-S2D-B2 | 10 | 3500 | 3/4-16 | Buna | Screen & Override | $71.50 / EACH Usually ships in 11 week(s) | |||
 | 7010080 | PB-S2D-B5 | 10 | 3500 | 3/4-16 | Buna | Screen & Override Knob | $74.50 / EACH Usually ships in 11 week(s) | |||
 | 7010081 | PB-S2D-V0 | 10 | 3500 | 3/4-16 | Viton | - | $55.50 / EACH Usually ships in 11 week(s) | |||
 | 7010082 | PB-S2D-V2 | 10 | 3500 | 3/4-16 | Viton | Screen & Override | $74.50 / EACH Usually ships in 11 week(s) | |||

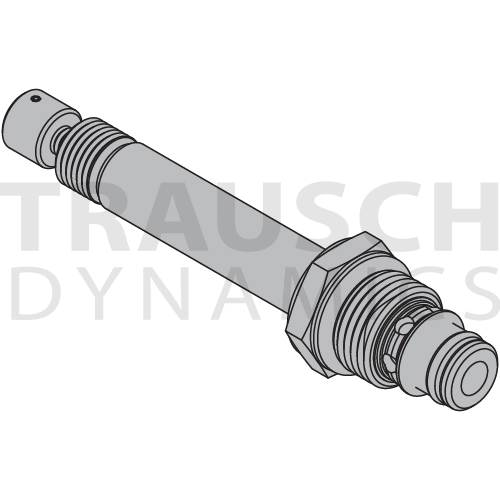

 | 7010083 | PB-S2D-V5 | 10 | 3500 | 3/4-16 | Viton | Screen & Override Knob | $77.50 / EACH Usually ships in 11 week(s) | |||

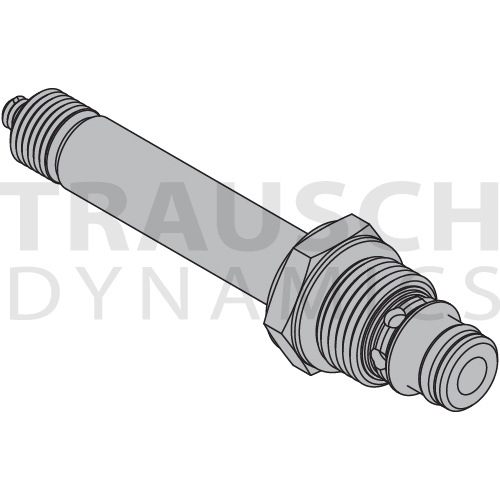

 | 7010084 | PB-S2D-VM | 10 | 3500 | 3/4-16 | Viton | Override & Detent | $72.50 / EACH Usually ships in 11 week(s) | |||
 | 7010087 | PB-S2D-VK | 10 | 3500 | 3/4-16 | Viton | Override Knob | $75.50 / EACH Usually ships in 11 week(s) | |||

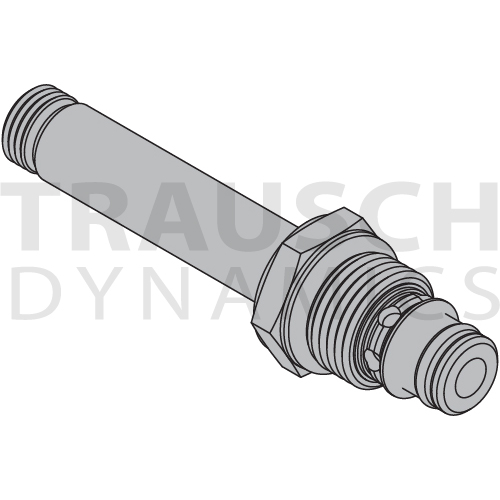

 | 7010088 | PB-S2D-W0 | 10 | 3500 | 3/4-16 | Viton | Screen | $57.50 / EACH Usually ships in 11 week(s) | |||

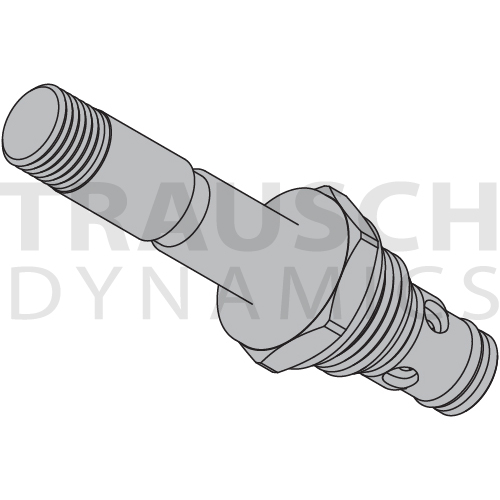

 | 7011081 | HB-S2D-00 | 12 | 5000 | 3/4-16 | Buna | - | $55.00 / EACH Usually ships in 11 week(s) | |||

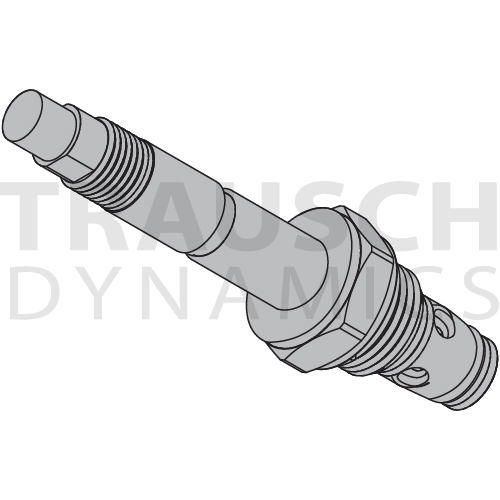

 | 7011084 | HB-S2D-0K | 12 | 5000 | 3/4-16 | Buna | Override Screw Type Knob | $72.00 / EACH Usually ships in 11 week(s) | |||
 | 7011082 | HB-S2D-A0 | 12 | 5000 | 3/4-16 | Buna | w/Screen | $57.00 / EACH Usually ships in 11 week(s) |
