2W2P NORMALLY OPEN, DIRECT ACTING SPOOL
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical spool.
- 2 Way 2 Position
- Normally Open
- Direct Acting Spool
- When de-energized, the valve allows flow from (1) to (2) and (2) to (1).
- When Energized, the valve blocks flow from (1) to (2) and blocks flow from (2) to (1).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltage and terminations
- Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010038 | MA-S2H-00 | 1 | 4000 | 5/8-18 | Buna | - | $30.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010102 | UA-S2H-00 | 1 | 4000 | 5/8-18 | Buna | - | $34.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010104 | UA-S2H-A0 | 1 | 4000 | 5/8-18 | Buna | Screen | $36.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010105 | UA-S2H-V0 | 1 | 4000 | 5/8-18 | Viton | - | $37.25 / EACH Usually ships in 5 week(s). Expedite available. | |||

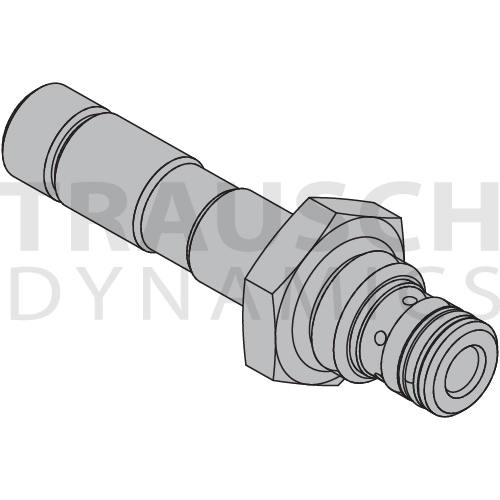

 | 7010106 | UA-S2H-W0 | 1 | 4000 | 5/8-18 | Viton | Screen | $39.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010101 | PB-S2H-00 | 5 | 3000 | 3/4-16 | Buna | - | $34.75 / EACH In stock - Ships same day | |||
 | 7010307 | PB-S2H-0M | 5 | 3000 | 3/4-16 | Buna | Override & Detent | $61.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010308 | PB-S2H-A0 | 5 | 3000 | 3/4-16 | Buna | Screen | $36.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010309 | PB-S2H-B1 | 5 | 3000 | 3/4-16 | Buna | Override & Non-Detent | $61.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010310 | PB-S2H-B3 | 5 | 3000 | 3/4-16 | Buna | Screen, Override & Non-Detent | $63.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010311 | PB-S2H-B4 | 5 | 3000 | 3/4-16 | Buna | Screen, Override & Detent | $63.75 / EACH Usually ships in 5 week(s). Expedite available. | |||

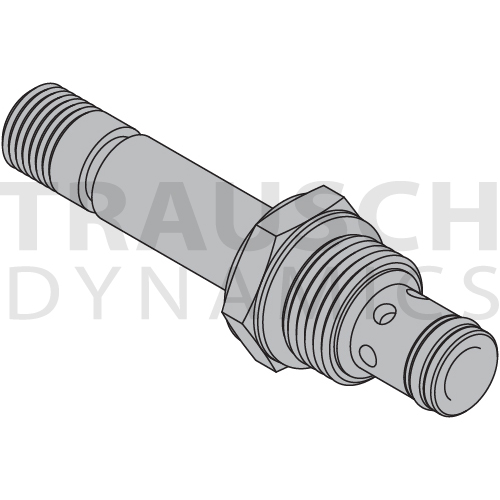

 | 7010312 | PB-S2H-V0 | 5 | 3000 | 3/4-16 | Viton | - | $37.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010103 | PB-S2H-V1 | 5 | 3000 | 3/4-16 | Viton | Override & Non-Detent | $64.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7010313 | PB-S2H-V3 | 5 | 3000 | 3/4-16 | Viton | Screen, Override & Non-Detent | $66.75 / EACH Usually ships in 5 week(s). Expedite available. | |||

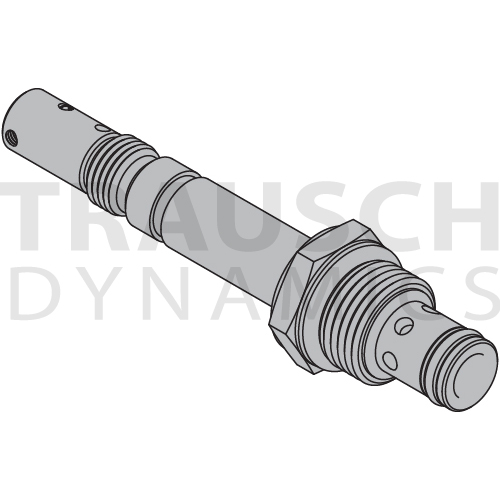

 | 7010314 | PB-S2H-V4 | 5 | 3000 | 3/4-16 | Viton | Screen, Override & Detent | $66.75 / EACH Usually ships in 5 week(s). Expedite available. |
