2W2P NORMALLY CLOSED - PILOT OPERATED POPPET
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical poppet.
- 2 Way 2 Position
- Normally Closed
- Pilot Operated Poppet
- When de-energized, the valve block flow from (1) to (2) and allows reverse flow from (2) to (1).
- When Energized, the valve allows flow from (1) to (2) and restricts flow from (2) to (1).
- Hardened parts for long life
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Manual override option
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltages and terminations
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7010045 | UA-S2A-00 | 6 | 4000 | 5/8-18 | Buna | - | $35.25 / EACH Usually ships in 11 week(s) | |||
 | 7010046 | UA-S2A-A0 | 6 | 4000 | 5/8-18 | Buna | Screen | $37.25 / EACH Usually ships in 11 week(s) | |||
 | 7010047 | UA-S2A-V0 | 6 | 4000 | 5/8-18 | Viton | - | $38.25 / EACH Usually ships in 11 week(s) | |||

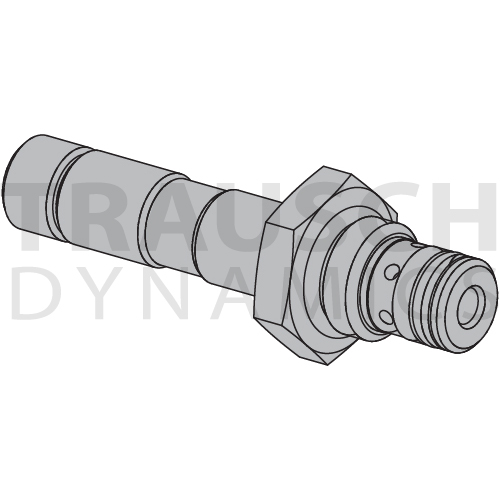

 | 7010048 | UA-S2A-W0 | 6 | 4000 | 5/8-18 | Viton | Screen | $40.25 / EACH Usually ships in 11 week(s) | |||

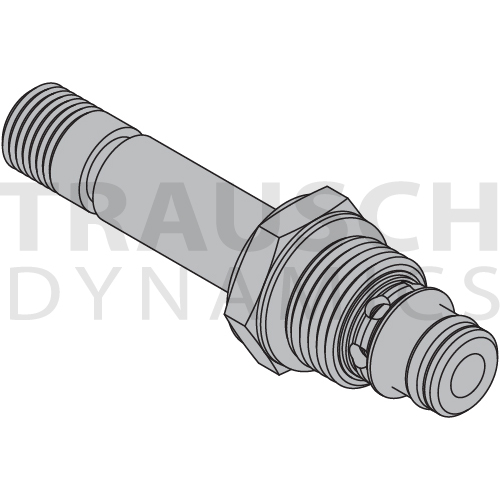

 | 7010057 | PB-S2A-00 | 8 | 3500 | 3/4-16 | Buna | - | $35.50 / EACH In stock - Ships same day | |||
 | 7010059 | PB-S2A-0M | 8 | 3500 | 3/4-16 | Buna | Override & Detent | $62.50 / EACH Usually ships in 11 week(s) | |||
 | 7010058 | PB-S2A-A0 | 8 | 3500 | 3/4-16 | Buna | Screen | $37.50 / EACH In stock - Ships same day | |||
 | 7010049 | PB-S2A-B1 | 8 | 3500 | 3/4-16 | Buna | Override & Non-Detent | $62.50 / EACH Usually ships in 11 week(s) | |||
 | 7010050 | PB-S2A-B3 | 8 | 3500 | 3/4-16 | Buna | Screen, Override & Non-Detent | $64.50 / EACH Usually ships in 11 week(s) | |||
 | 7010060 | PB-S2A-B4 | 8 | 3500 | 3/4-16 | Buna | Screen, Override & Detent | $64.50 / EACH In stock - Ships same day | |||
 | 7010051 | PB-S2A-V0 | 8 | 3500 | 3/4-16 | Viton | - | $38.50 / EACH Usually ships in 11 week(s) | |||
 | 7010052 | PB-S2A-V1 | 8 | 3500 | 3/4-16 | Viton | Override & Non-Detent | $65.50 / EACH Usually ships in 11 week(s) | |||

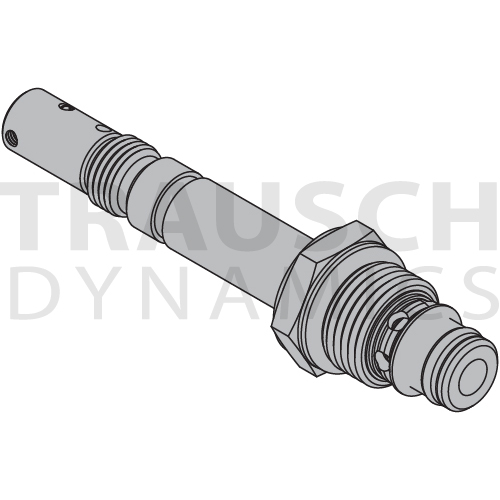

 | 7010053 | PB-S2A-V3 | 8 | 3500 | 3/4-16 | Viton | Screen, Override & Non-Detent | $67.50 / EACH Usually ships in 11 week(s) | |||
 | 7010054 | PB-S2A-V4 | 8 | 3500 | 3/4-16 | Viton | Screen, Override & Detent | $67.50 / EACH Usually ships in 11 week(s) | |||
 | 7010055 | PB-S2A-VM | 8 | 3500 | 3/4-16 | Viton | Override & Detent | $65.50 / EACH Usually ships in 11 week(s) |
