2W2P NORMALLY CLOSED, DIRECT ACTING SPOOL
- Solenoid Operated Directional control valves allow fluid to flow into different paths from one or more sources. The direction of fluid flow control is controlled through a manual or electrical poppet.
- 2 Way 2 Position
- Normally Closed
- Direct Acting Spool
- When de-energized, the valve block flow from (1) to (2) and allows reverse flow from (2) to (1).
- When Energized, the valve allows flow from (1) to (2) and restricts flow from (2) to (1).
- Efficient wet-armature construction
- Cartridges are voltage interchangeable
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltage and terminations
- Optional "I" Coil: Weatherproof, Thermal Shock, Immersion Safe
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seals | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

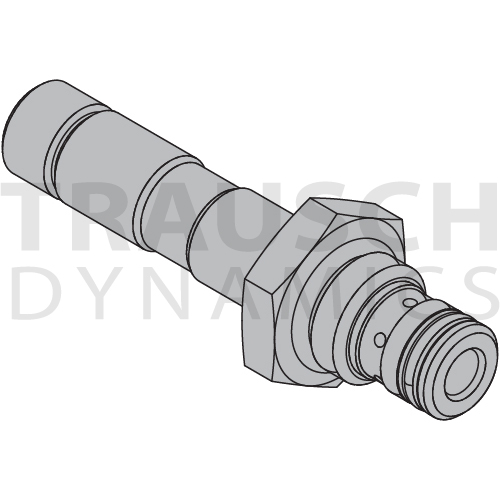

 | 7010025 | UA-S2G-00 | 1.5 | 4000 | 5/8-18 | Buna | -0 | $33.25 / EACH Usually ships in 11 week(s) | |||
 | 7010026 | UA-S2G-A0 | 1.5 | 4000 | 5/8-18 | Buna | Screen | $35.25 / EACH Usually ships in 11 week(s) | |||
 | 7010027 | UA-S2G-V0 | 1.5 | 4000 | 5/8-18 | Viton | -0 | $36.25 / EACH Usually ships in 11 week(s) | |||
 | 7010028 | UA-S2G-WO | 1.5 | 4000 | 5/8-18 | Viton | Screen | $38.25 / EACH Usually ships in 11 week(s) | |||

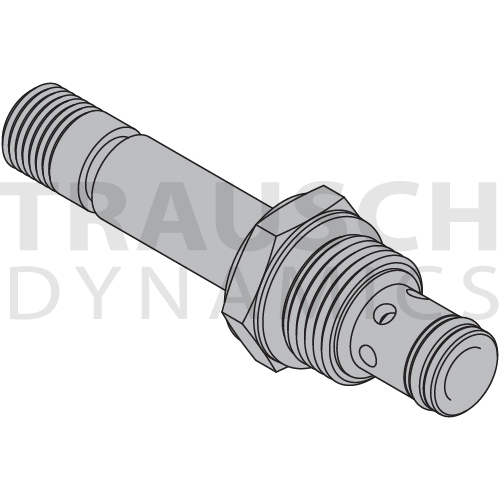

 | 7010094 | PB-S2G-00 | 8 | 3000 | 3/4-16 | Buna | -0 | $34.25 / EACH Usually ships in 11 week(s) | |||
 | 7010091 | PB-S2G-0M | 8 | 3000 | 3/4-16 | Buna | Override & Detent | $61.25 / EACH Usually ships in 11 week(s) | |||
 | 7010092 | PB-S2G-A0 | 8 | 3000 | 3/4-16 | Buna | Screen | $36.25 / EACH Usually ships in 11 week(s) | |||
 | 7010093 | PB-S2G-B1 | 8 | 3000 | 3/4-16 | Buna | Override & Non-Detent | $61.25 / EACH Usually ships in 11 week(s) | |||

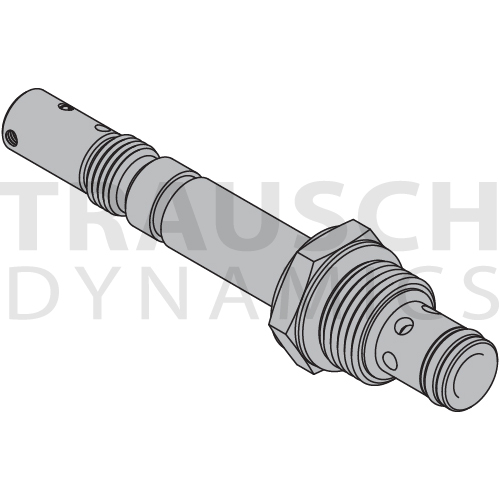

 | 7010095 | PB-S2G-B3 | 8 | 3000 | 3/4-16 | Buna | Screen, Override & Non-Detent | $63.25 / EACH Usually ships in 11 week(s) | |||
 | 7010096 | PB-S2G-B4 | 8 | 3000 | 3/4-16 | Buna | Screen, Override & Detent | $63.25 / EACH Usually ships in 11 week(s) | |||
 | 7010097 | PB-S2G-V0 | 8 | 3000 | 3/4-16 | Viton | -0 | $37.25 / EACH Usually ships in 11 week(s) | |||
 | 7010098 | PB-S2G-V1 | 8 | 3000 | 3/4-16 | Viton | Screen, Override & Non-Detent | $64.25 / EACH Usually ships in 11 week(s) | |||
 | 7010099 | PB-S2G-VM | 8 | 3000 | 3/4-16 | Viton | Screen, Override & Detent | $64.25 / EACH Usually ships in 11 week(s) | |||
 | 7010100 | PB-S2G-W0 | 8 | 3000 | 3/4-16 | Viton | Screen | $39.25 / EACH Usually ships in 11 week(s) | |||

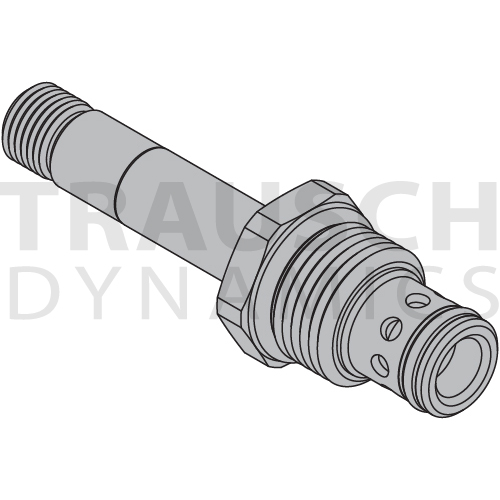

 | 7010156 | DE-S2G-00 | 8 | 3000 | 7/8-14 | Buna | -0 | $36.25 / EACH Usually ships in 11 week(s) |
