PRESSURE REDUCING/RELIEVING - PILOT OPERATED SIDE INLET (3)
- Proportional Control valves generate a variable pressure in response to a PWM (Pulse Width Modulated) current signal.
- Pressure Reducing/Relieving
- Direct Acting
- With no current applied to the proportional solenoid, the inlet port 3 (P) is blocked and the regulated port 2 (U) is vented to port 1 (T)
- As current is increased, fluid pressure is proportionally controlled at the regulated port 3 (P) or 2 (U).
- On attainment of proportionally determined pressure at 2 (U), the cartridge shifts to block flow at 3 (P), thereby regulating pressure at 2 (U)
- In this mode, the valve also will relieve 2 (U), to 1 (T) at a variable value over the set reducing pressure
- Hardened parts for long life
- Economical Slip-in style
- Efficient wet-armature construction
- Integral waterproof coil
- Continuous duty rated solenoid
- Unitized Valve/Coil
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Option | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7011525 | IP-PRZ-59-AM12-A0 | 7.9 | 700 | Slip-in | Buna | Screen | $72.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011526 | EG-TRZ-42-H-35-00 | 7.9 | 3500 | 7/8-14 | Buna | - | $68.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011527 | EG-TRZ-42-H-35-A0 | 7.9 | 3500 | 7/8-14 | Buna | Screen | $73.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011528 | EG-TRZ-42-H-140-00 | 7.9 | 3500 | 7/8-14 | Buna | - | $90.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011529 | EG-TRZ-42-H-140-A0 | 7.9 | 3500 | 7/8-14 | Buna | Screen | $95.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011530 | EG-TRZ-42-H-210-00 | 7.9 | 3500 | 7/8-14 | Buna | - | $90.00 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011531 | EG-TRZ-42-H-210-A0 | 7.9 | 3500 | 7/8-14 | Buna | Screen | $95.00 / EACH Usually ships in 5 week(s). Expedite available. | |||

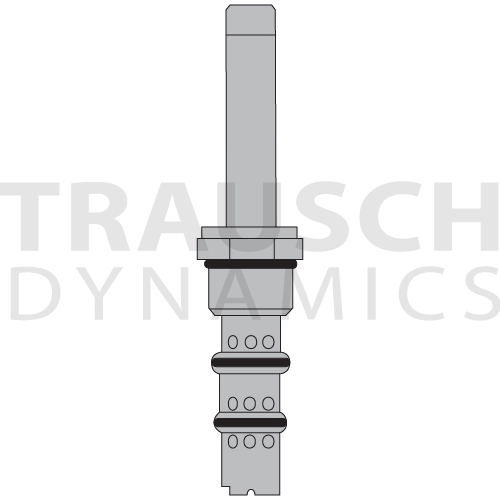

 | 7011825 | EG-PRZ-00 | 8 | 450 | 7/8-14 | Buna | - | $92.56 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011824 | EG-PRZ-V0 | 8 | 450 | 7/8-14 | Viton | - | $95.00 / EACH Usually ships in 4 week(s). Expedite available. | |||

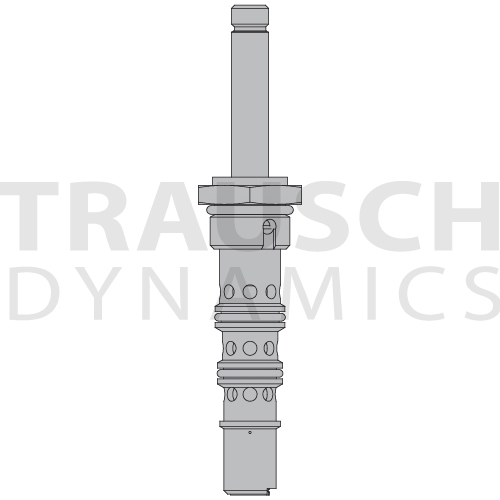

 | 7011831 | ES-PRZ-00 | 30 | 450 | 1 1/1612 | Buna | - | $145.75 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011799 | ES-PRZ-V0 | 30 | 450 | 1 1/1612 | Viton | - | $149.00 / EACH Usually ships in 5 week(s). Expedite available. |
