2W FLOW CONTROL - PRESSURE COMPENSATED - NORMALLY CLOSED POPPET
- Proportional Control valves generate a variable pressure in response to a PWM (Pulse Width Modulated) current signal.
- 2 Way Flow Control
- Pressure Compensated - Normally Closed - Poppet
- Valve maintains a constant flow rate out of (2) regardless of load pressure variatitons in the circuit downstream of (1)
- When coil is not energized, there is no regulated flow out of (2)
- The valve beegins to respond to load variations when the flow through the valve creates a pressure differential across the control spool
- Reverse flow from (2) to (1) returns through the control spool and is not compensated
- The manual override increases flow by counter-clockwise rotation of the manual override knob
- Hardened parts for long life
- Excellent linearity and low hysteresis characteristics
- Cartridges are voltage interchangeable
- Industry common cavity
- Unitized, molded coil design
- Continuous duty rated solenoid
- Optional coil voltages and terminations
- Option of operation of manual override
- Operation of Manual Override Option is located on the Product Details Technical Information sheet located on each individual parts page.

Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Option | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 7011883 | EU-F2A-AS | 26 | 3500 | 1 1/16-12 | Buna | Screw Type Override Knob, Up to 55 l/min | $221.25 / EACH In stock - Ships same day | |||

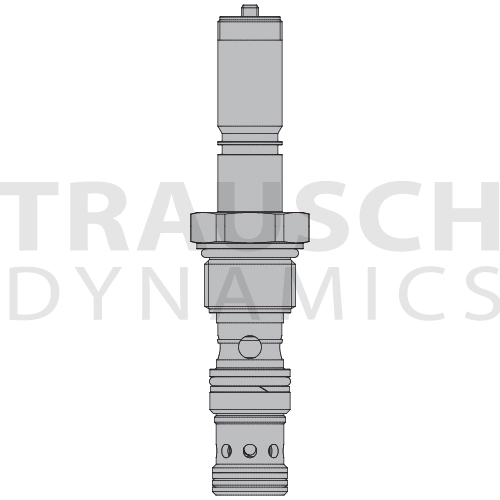

![]() | 7011886 | EU-F2A-BS | 26 | 3500 | 1 1/16-12 | Buna | Screw Type Override Knob, Up to 75 l/min | $221.25 / EACH In stock - Ships same day | |||
![]() | 7011889 | EU-F2A-CS | 26 | 3500 | 1 1/16-12 | Buna | Screw Type Override Knob, Up to 100 l/min | $221.25 / EACH In stock - Ships same day |
