  • Mechanical Pressure Control Valves
  • Sequence
  • 3 Way Internal Pilot & External Drain

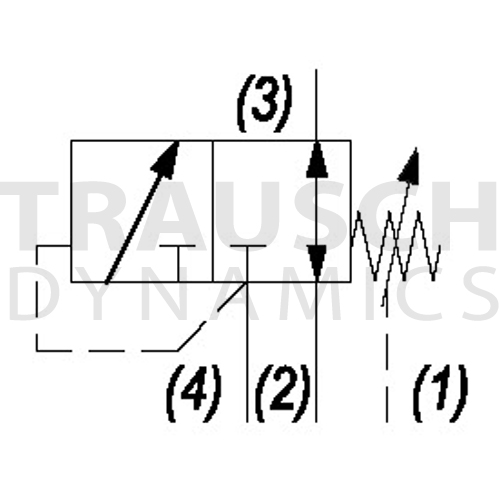

  • The valve in neutral (un-piloted), allows flow between (3) and (2) bidirectional, while blocking at (4)
  • The spring chamber is constantly vented at (1)
  • On attainment of a predetermined pressure at (4), the cartridge shifts to close (3) to (2), while opening (4) to (3)
  • Note that the backpressure value at (1) must be added to the selected pressure setting to determine pilot pressure necessary to open valve
  • Optional spring ranges to 1500 PSI (103 bar)
  • Hardened parts for long life
  • Industry common cavity
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealOptionsPressure RangePriceOrder Qty.

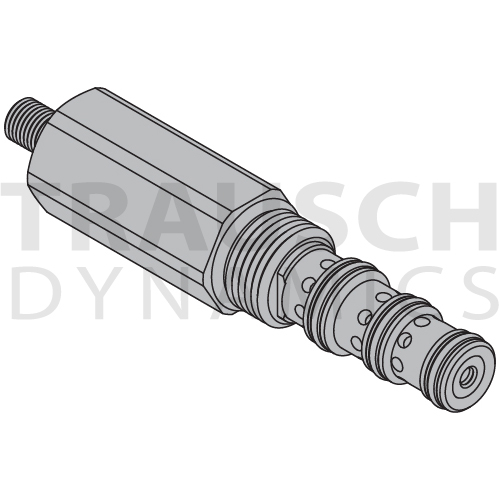

7012097DG-PSI-00-04251030007/8-14Buna-50-425 PSI Press Range $56.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012098DG-PSI-00-15001030007/8-14Buna-425-1500 PSI Press Range $56.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012099DG-PSI-0I-04251030007/8-14BunaInternal Adjust50-425 PSI Press Range $56.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012100DG-PSI-0I-15001030007/8-14BunaInternal Adjust425-1500 PSI Press Range $56.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012101DG-PSI-0K-04251030007/8-14BunaOverride Knob50-425 PSI Press Range $62.00 / EACH
Usually ships in 5 week(s).
Expedite available.

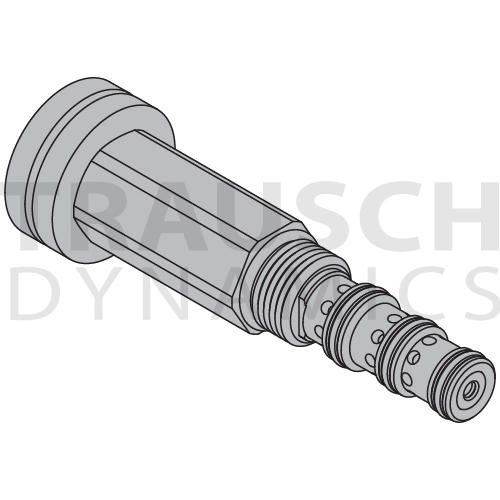

7012102DG-PSI-0K-15001030007/8-14BunaOverride Knob425-1500 PSI Press Range $62.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012103DG-PSI-V0-04251030007/8-14Viton-50-425 PSI Press Range $60.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012104DG-PSI-V0-15001030007/8-14Viton-425-1500 PSI Press Range $60.00 / EACH
Usually ships in 5 week(s).
Expedite available.

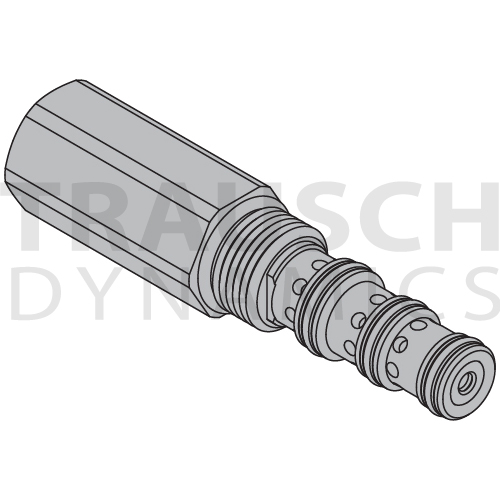

7012105DG-PSI-VI-04251030007/8-14VitonInternal Adjust50-425 PSI Press Range $59.75 / EACH
Usually ships in 5 week(s).
Expedite available.
7012106DG-PSI-VI-15001030007/8-14VitonInternal Adjust425-1500 PSI Press Range $59.75 / EACH
Usually ships in 5 week(s).
Expedite available.
7012107DG-PSI-VK-04251030007/8-14VitonOverride Knob50-425 PSI Press Range $65.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012108DG-PSI-VK-15001030007/8-14VitonOverride Knob425-1500 PSI Press Range $65.25 / EACH
Usually ships in 5 week(s).
Expedite available.
