  • Mechanical Pressure Control Valves
  • Sequence
  • 3 Way Internal Pilot & Drain
  • The valve blocks flow at ports (3) and allows flow from (2) to (1)
  • On attainment of a predetermined pressure at (3), the valve shifts to allow flow from (3) to (2) and block flow at (1)
  • Optional spring ranges to 1500 PSI (103 bar)
  • Hardened parts for long life
  • Industry common cavity
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealOptionsPressure RangePriceOrder Qty.
7011145DF-PWI-00-0425830007/8-14Buna50-425 PSI Press Range $44.00 / 18.9
Available
7012146DF-PWI-00-1500830007/8-14Buna425-1500 PSI Press Range $44.00 / EACH
Usually ships in 4 week(s).
Expedite available.

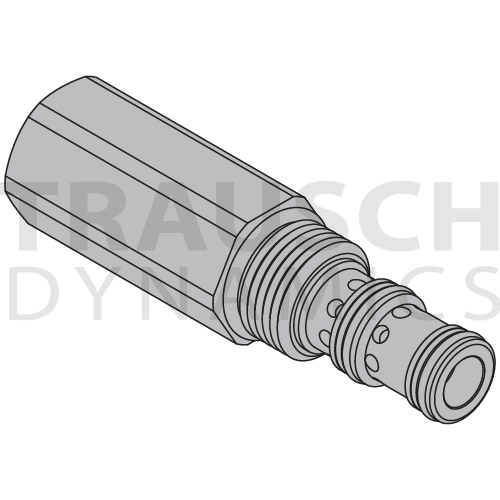

7012147DF-PWI-0I-0425830007/8-14BunaInternal Adjust50-425 PSI Press Range $44.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012148DF-PWI-0I-1500830007/8-14BunaInternal Adjust425-1500 PSI Press Range $44.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012149DF-PWI-0K-0425830007/8-14BunaOverride Knob50-425 PSI Press Range $49.50 / EACH
Usually ships in 4 week(s).
Expedite available.

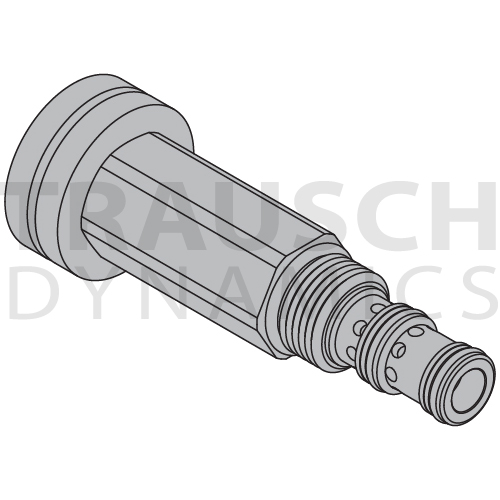

7012151DF-PWI-0K-1500830007/8-14BunaOverride Knob425-1500 PSI Press Range $49.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012152DF-PWI-V0-0425830007/8-14Viton50-425 PSI Press Range $46.75 / EACH
Usually ships in 4 week(s).
Expedite available.

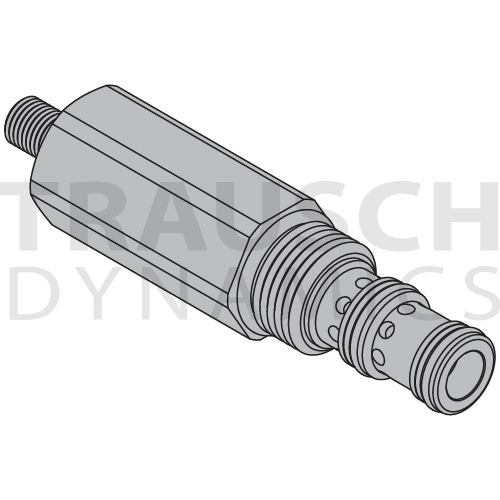

7012153DF-PWI-V0-1500830007/8-14Viton425-1500 PSI Press Range $46.75 / EACH
Usually ships in 4 week(s).
Expedite available.
7012154DF-PWI-VI-0425830007/8-14VitonInternal Adjust50-425 PSI Press Range $46.75 / EACH
Usually ships in 4 week(s).
Expedite available.
7012155DF-PWI-VI-1500830007/8-14VitonInternal Adjust425-1500 PSI Press Range $46.75 / EACH
Usually ships in 4 week(s).
Expedite available.
7012156DF-PWI-VK-0425830007/8-14VitonOverride Knob50-425 PSI Press Range $52.25 / EACH
Usually ships in 4 week(s).
Expedite available.
7012157DF-PWI-VK-1500830007/8-14VitonOverride Knob425-1500 PSI Press Range $52.25 / EACH
Usually ships in 4 week(s).
Expedite available.
Page 1 of 1
