  • Mechanical Pressure Control Valves
  • Sequence
  • 3 Way External Pilot & Internal Drain
  • The valve in neutral (un-piloted), allows flow between (1) and (2) bidirectionally, while blocking at (3)
  • The spring chamber is constantly vented at (1)
  • On attainment of a predetermined pressure at (4), the cartridge shifts to close (1) to (2), while opening (2) to (3)
  • Note that the backpressure value at (1) must be added to the selected pressure setting to determine pilot pressure necessary to open valve
  • Optional spring ranges to 1500 PSI (103 bar)
  • Hardened parts for long life
  • Industry common cavity
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealOptionsPressure RangePriceOrder Qty.
7012075DG-PSA-00-04251030007/8-14Buna50-425 PSI $54.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012076DG-PSA-00-15001030007/8-14Buna425-1500 PSI $54.00 / EACH
Usually ships in 4 week(s).
Expedite available.

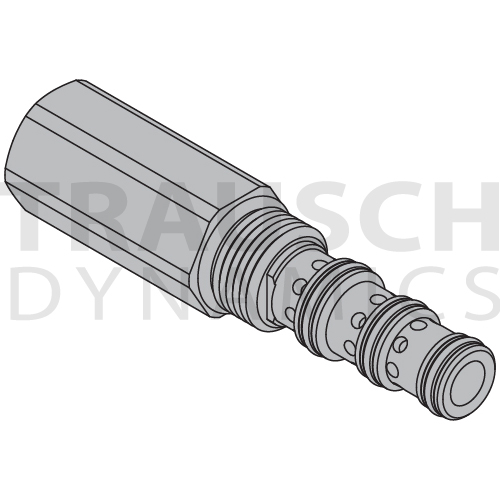

7012077DG-PSA-0I-04251030007/8-14BunaInternal Adjust50-425 PSI $54.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012078DG-PSA-0I-15001030007/8-14BunaInternal Adjust425-1500 PSI $54.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7011149DG-PSA-0K-04251030007/8-14BunaOverride Knob50-425 PSI $57.00 / EACH
Available
7012079DG-PSA-0K-15001030007/8-14BunaOverride Knob425-1500 PSI $59.50 / EACH
Usually ships in 4 week(s).
Expedite available.

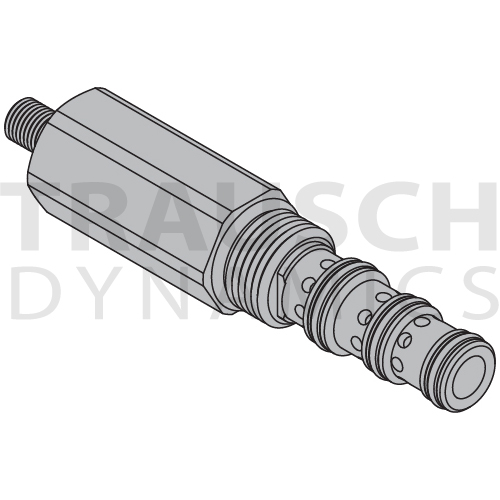

7012080DG-PSA-V0-04251030007/8-14Viton50-425 PSI $57.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012081DG-PSA-V0-15001030007/8-14Viton425-1500 PSI $57.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012082DG-PSA-VI-04251030007/8-14VitonInternal Adjust50-425 PSI $57.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012083DG-PSA-VI-15001030007/8-14VitonInternal Adjust425-1500 PSI $57.50 / EACH
Usually ships in 4 week(s).
Expedite available.

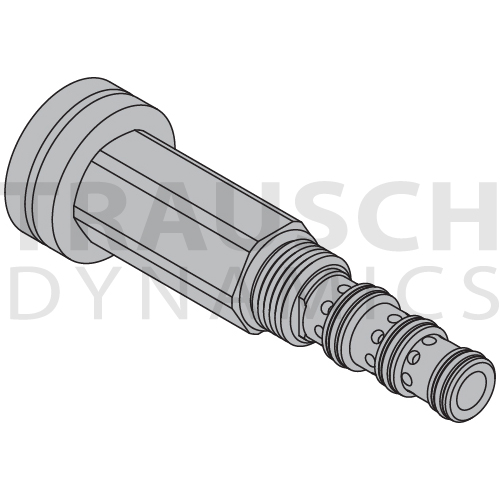

7012084DG-PSA-VK-04251030007/8-14VitonOverride Knob50-425 PSI $63.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012085DG-PSA-VK-15001030007/8-14VitonOverride Knob425-1500 PSI $63.00 / EACH
Usually ships in 4 week(s).
Expedite available.
