  • Mechanical Pressure Control Valves
  • Sequence

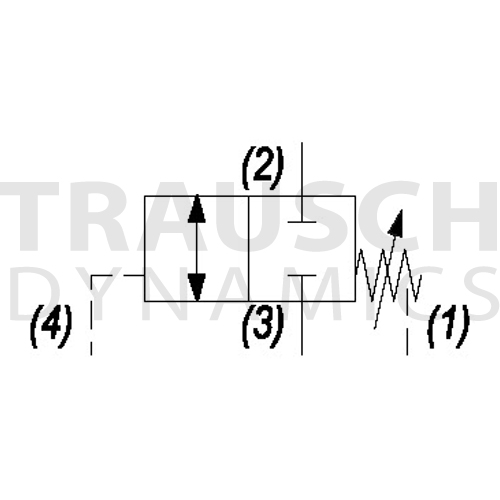

  • 2 Way Normally Closed - External Pilot & Drain
  • The valve in neutral (un-piloted), blocks flow between (3) and (2)
  • Or The valve allows flow at ports (3) and (2)
  • The spring chamber is constantly vented at (1)
  • On attainment of a predetermined pressure at (4), the cartridge shifts to close (3) to (2)
  • Note that the backpressure value at (1) must be added to the selected pressure setting to determine pilot pressure necessary to open valve
  • Optional spring ranges to 1500 PSI (103 bar)
  • Hardened parts for long life
  • Industry common cavity
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealOptionsPressure RangePriceOrder Qty.

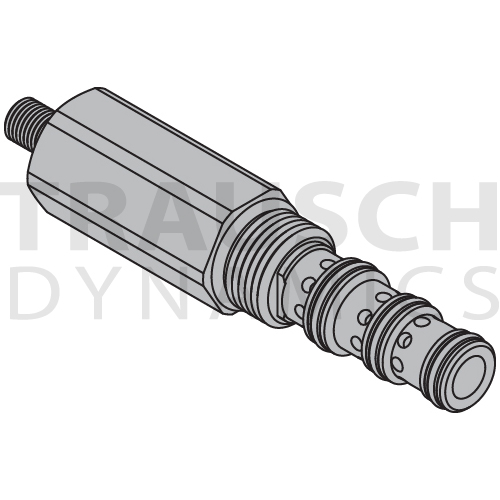

7012086DG-PSC-00-04251030007/8-14Buna50-425 PSI Press Range $63.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7011148DG-PSC-00-15001030007/8-14Buna425-1500 PSI Press Range $54.50 / EACH
In Stock - Ships same day

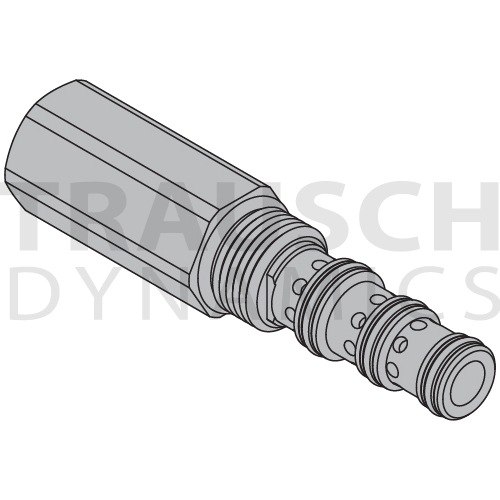

7012087DG-PSC-0I-04251030007/8-14BunaInternal Adjust50-425 PSI Press Range $54.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012088DG-PSC-0I-15001030007/8-14BunaInternal Adjust425-1500 PSI Press Range $54.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012089DG-PSC-0K-04251030007/8-14BunaOverride Knob50-425 PSI Press Range $60.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012090DG-PSC-0K-15001030007/8-14BunaOverride Knob425-1500 PSI Press Range $60.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012091DG-PSC-V0-04251030007/8-14Viton50-425 PSI Press Range $58.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012092DG-PSC-V0-15001030007/8-14Viton425-1500 PSI Press Range $58.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012093DG-PSC-VI-04251030007/8-14VitonInternal Adjust50-425 PSI Press Range $58.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012094DG-PSC-VI-15001030007/8-14VitonInternal Adjust425-1500 PSI Press Range $58.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012095DG-PSC-VK-04251030007/8-14VitonOverride Knob50-425 PSI Press Range $63.50 / EACH
Usually ships in 4 week(s).
Expedite available.

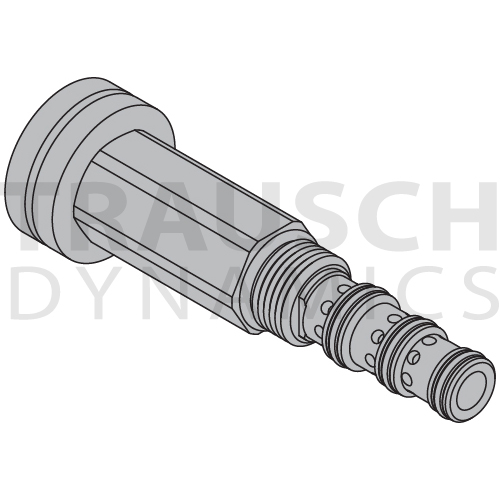

7012096DG-PSC-VK-15001030007/8-14VitonOverride Knob425-1500 PSI Press Range $63.50 / EACH
Usually ships in 4 week(s).
Expedite available.
7012129DG-PTC-00-00501030007/8-14Buna50 PSI Spring Bias $52.00 / EACH
Usually ships in 4 week(s).
Expedite available.

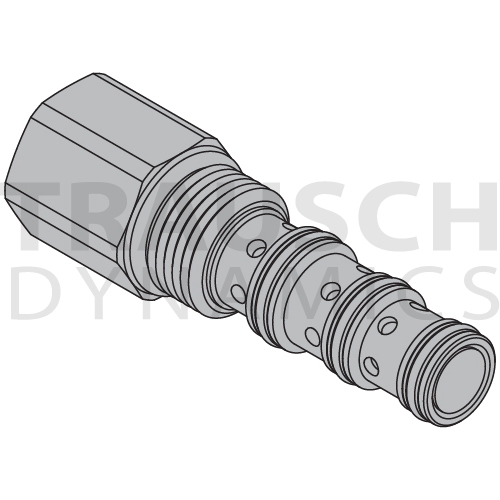

7012130DG-PTC-00-01801030007/8-14Buna180 PSI Spring Bias $52.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7012131DG-PTC-V0-00501030007/8-14Viton50 PSI Spring Bias $55.50 / EACH
Usually ships in 4 week(s).
Expedite available.
