  • Mechanical Pressure Control Valves
  • Pressure Compensator
  • Restrictive (Pre-Compensation)

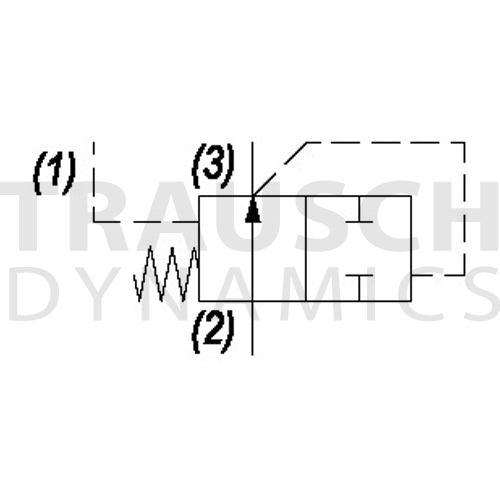

  • The valve with an orfice beyond port (3) and sensed by port (1) maintains a constant flow rate from (3) regardless of load pressue changes in the system downstream of (3), or in the inlet at (2) as long as pressure at (3) is above (1) by more than spring setting chosen and pump supply is in excess of demand
  • The valve's spool maintains a constant differential pressure across an external orifice, thereby regulating the hydraulic flow rate across this external orifice
  • When used with an orfice as described above, it functions as a restrictive type regulator, delivering pump flow through the external orifice
  • All ports may be fully pressurized
  • or The valve allows pressure compensated flow from (2) to (3) regulated by the pressure present at (1)
  • Pressure differential between (3) and (1) is fixed at 8/14/18/24 bar
  • These are minimum values, increasing with the flow because of the pressure drop through the valve
  • When used with (1) connected to a drain line, it works as a fix setting pressure reducing valve
  • Hardened parts for long life
  • Industry common cavity
  • Spring range 8 to 24 bar
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealOptionsPressure SettingPriceOrder Qty.
7012028PP-PCC-00-0100830003/4-16Buna-100 PSI $31.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012029PP-PCC-00-0220830003/4-16Buna-220 PSI $31.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012030PP-PCC-A0-0100830003/4-16BunaScreen100 PSI $32.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012031PP-PCC-A0-0220830003/4-16BunaScreen220 PSI $32.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012032PP-PCC-U0-0100830003/4-16Urethane-100 PSI $35.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012033PP-PCC-U0-0220830003/4-16Urethane-220 PSI $35.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012034PP-PCC-V0-0100830003/4-16Viton-100 PSI $34.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012035PP-PCC-V0-0220830003/4-16Viton-220 PSI $34.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012036PP-PCC-W0-0100830003/4-16VitonScreen100 PSI $35.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012037PP-PCC-W0-0220830003/4-16VitonScreen220 PSI $35.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012038PP-PCC-Y0-0100830003/4-16UrethaneScreen100 PSI $36.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012039PP-PCC-Y0-0220830003/4-16UrethaneScreen220 PSI $36.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012040DF-CP2-00-0008835007/8-14Buna-115 PSI $35.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012041DF-CP2-00-0014835007/8-14Buna-200 PSI $35.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012042DF-CP2-00-0018835007/8-14Buna-260 PSI $35.50 / EACH
Usually ships in 5 week(s).
Expedite available.
