  • Mechanical Pressure Control Valves
  • Pressure Compensator
  • Restrictive (Post-Compensation)
  • The valve with an external orfice in front of port (1) allows compensated flow from (1) to (2), regulated by the pressure present at (3)
  • or The valve allows pressure compensated flow from (1) to (2) regulated pressure present at (3)
  • The spring chamber is constantly vented at (1)
  • Pressure differential between (1) and (3) is fixed at 8/24 bar
  • These are minimum values increasing with flow because of the pressure drop through the valve
  • Hardened parts for long life
  • Industry common cavity
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealOptionsPressurePriceOrder Qty.

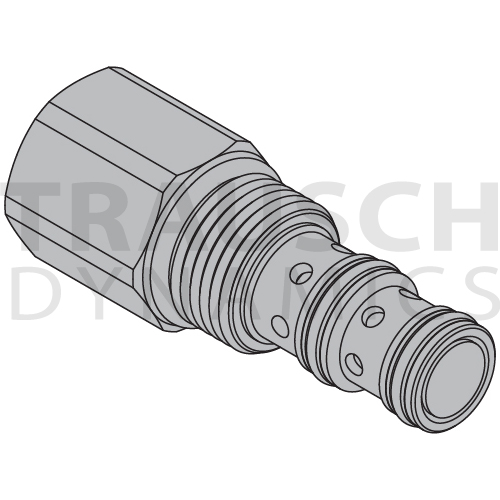

7011093DF-PCS-00-01501035007/8-14Buna-150 PSI Press Differential $31.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7011595DF-PCS-00-04501035007/8-14Buna-450 PSI Press Differential $31.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7011596DF-PCS-V0-01501035007/8-14Viton-150 PSI Press Differential $34.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7011597DF-PCS-V0-04501035007/8-14Viton-450 PSI Press Differential $34.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7011598DF-TCS-00-00081035007/8-14Buna-115 PSI Press Setting $43.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7011599DF-TCS-00-00241035007/8-14Buna-340 PSI Press Setting $43.00 / EACH
Usually ships in 5 week(s).
Expedite available.

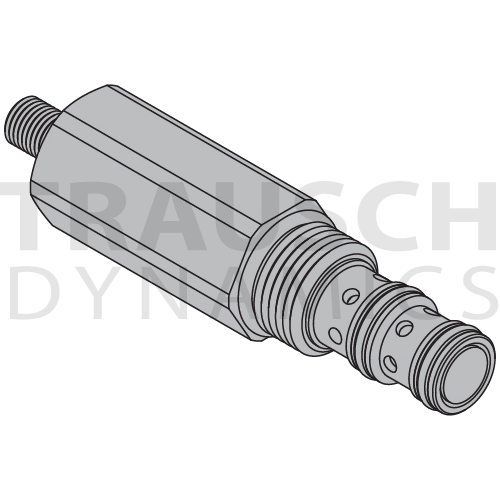

7012067DF-PCT-00-03001035007/8-14Buna-50-300 PSI Press Range $40.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012068DF-PCT-0I-03001035007/8-14BunaInternal Adjust50-300 PSI Press Range $40.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012069DF-PCT-0K-03001035007/8-14BunaOverride Knob50-300 PSI Press Range $45.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012070DF-PCT-0T-03001035007/8-14BunaTamper proof50-300 PSI Press Range $42.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012071DF-PCT-V0-03001035007/8-14Viton-50-300 PSI Press Range $42.75 / EACH
Usually ships in 5 week(s).
Expedite available.

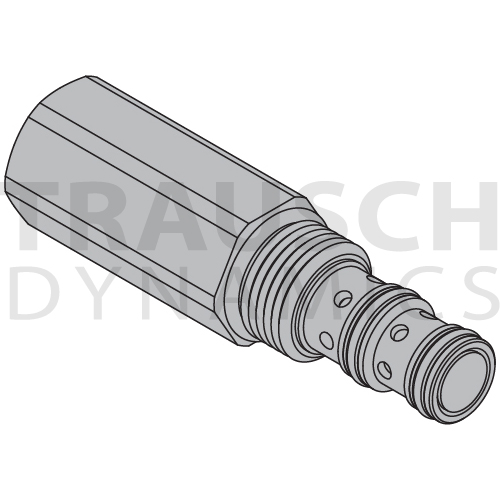

7012072DF-PCT-VI-03001035007/8-14VitonInternal Adjust50-300 PSI Press Range $42.75 / EACH
Usually ships in 5 week(s).
Expedite available.

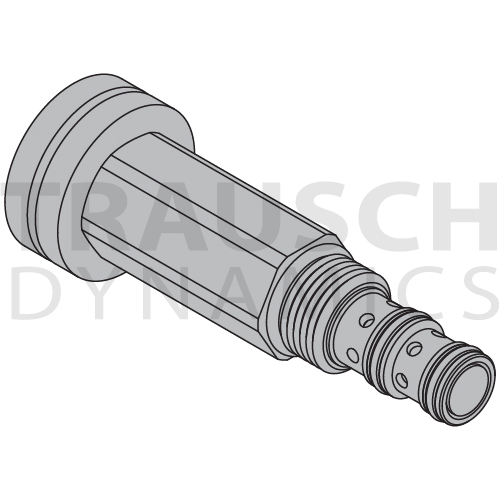

7012073DF-PCT-VK-03001035007/8-14VitonOverride Knob50-300 PSI Press Range $48.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012074DF-PCT-VT-03001035007/8-14VitonTamper proof50-300 PSI Press Range $45.25 / EACH
Usually ships in 5 week(s).
Expedite available.
Page 1 of 1
