  • Mechanical Flow Control Valves
  • Restrictive Flow Regulators
  • Pressure Compensated - Adjustable
  • The cartridge maintains a constant flow rate out of (1) regardless of load pressure changes in the circuit downstream of (1)
  • The adjustable control differential spring load (or orifice) can be set to customer flow specification
  • The valve begins to respond to load changes when the flow through the valve creates a pressure differential from (2) to (1), greater than 200 PSI, with accurate flow maintenance from 200 to 3500 PSI or creates a pressure differential across the control orifice greater than 100 PSI, with accurate flow maintenance from 100 to 3500 PSI
  • Reverse flow (1) to (2) returns through the control orifice and is non-compensated
  • The regulated flow increases from low to high with clockwise (or conterclockwise) rotation of the adjustment knob
  • Hardened parts for long life
  • Industry common cavity
  • Fine low-torque adjustment
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealOptionsPressure FlowPriceOrder Qty.
7010426MA-FCA-00-0.17330005/8-18Buna-0.08-0.17 GPM Flow $26.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010425MA-FCA-00-00.5330005/8-18Buna-0.25-0.5 GPM Flow $26.00 / EACH
Usually ships in 5 week(s).
Expedite available.

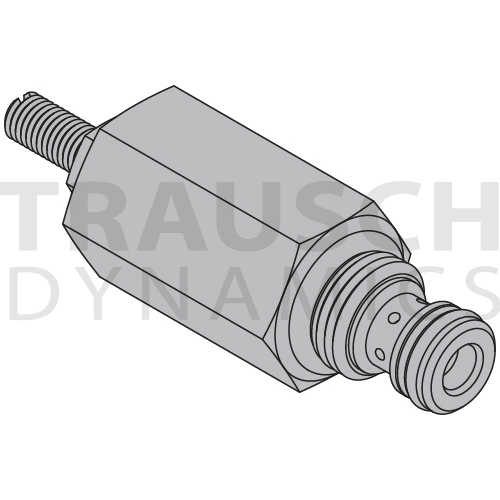

7010428MA-FCA-00-00.9330005/8-18Buna-0.5-0.9 GPM Flow $26.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010751MA-FCA-00-01.5330005/8-18Buna-0.9-1.5 GPM Flow $26.00 / EACH
Usually ships in 4 week(s).
Expedite available.
7010427MA-FCA-00-02.9330005/8-18Buna-1.5-2.9 GPM Flow $26.00 / EACH
Usually ships in 5 week(s).
Expedite available.

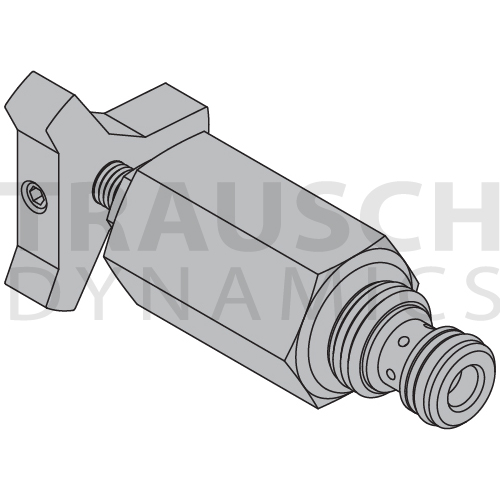

7010816MA-FCA-0K-0.17330005/8-18BunaOverride Knob0.08-0.17 GPM Flow $30.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010817MA-FCA-0K-00.5330005/8-18BunaOverride Knob0.25-0.5 GPM Flow $30.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010818MA-FCA-0K-00.9330005/8-18BunaOverride Knob0.5-0.9 GPM Flow $30.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010819MA-FCA-0K-01.5330005/8-18BunaOverride Knob0.9-1.5 GPM Flow $30.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010820MA-FCA-0K-02.9330005/8-18BunaOverride Knob1.5-2.9 GPM Flow $30.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010821MA-FCA-V0-0.17330005/8-18Viton-0.08-0.17 GPM Flow $28.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010822MA-FCA-V0-00.5330005/8-18Viton-0.25-0.5 GPM Flow $28.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010823MA-FCA-V0-00.9330005/8-18Viton-0.5-0.9 GPM Flow $28.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010824MA-FCA-V0-01.5330005/8-18Viton-0.9-1.5 GPM Flow $28.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7010825MA-FCA-V0-02.9330005/8-18Viton-1.5-2.9 GPM Flow $28.00 / EACH
Usually ships in 5 week(s).
Expedite available.
