HAND PUMPS - NOSE TO SIDE
- Mechanical Flow Control Valves
- Hand Pumps
- Nose to Side
- The valve hand pump when pulled primes thru port (2) and when pushed provide flow pressure to outlet port (1)
- or The valve hand pump when pipe handle is lifted, primes thru port (2) and when pushed provides flow pressure to outlet port (1)
- or The valve hand pump when pipe handle is pushed, primes thru port (2) and when lifted provides flow pressure to outlet port (1)
- Large displacement per stroke
- Industry common cavity
- Small profile
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Options | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7011392 | DE-HPC-0K | 0.35 | 500 | 7/8-14 | Buna | Override Knob | $68.00 / EACH Usually ships in 5 week(s). Expedite available. | |||

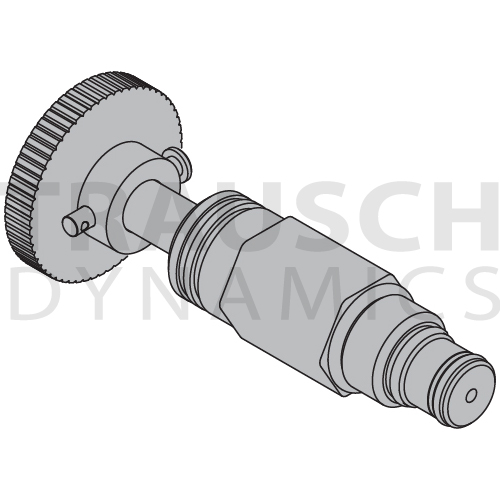

 | 7011393 | DE-HPC-VK | 0.35 | 500 | 7/8-14 | Viton | Override Knob | $71.00 / EACH Usually ships in 5 week(s). Expedite available. | |||

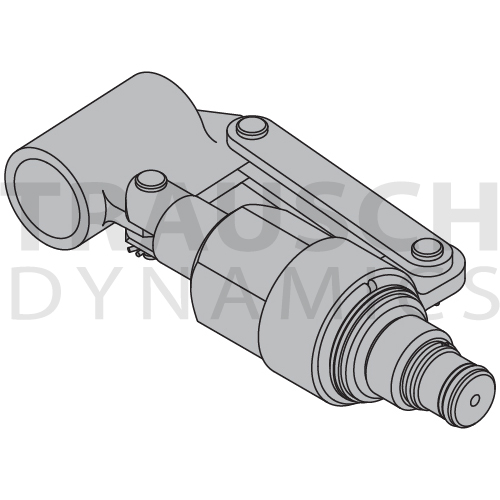

 | 7011396 | DE-HPD-0L | 0.39 | 3000 | 7/8-14 | Buna | Linkage | $97.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7011397 | DE-HPD-VL | 0.39 | 3000 | 7/8-14 | Viton | Linkage | $100.50 / EACH Usually ships in 5 week(s). Expedite available. |
