FLOW DIVIDER/COMBINERS - STANDARD ACCURACY
- Mechanical Flow Control Valves
- Flow Divider/Combiners
- Standard Accuracy

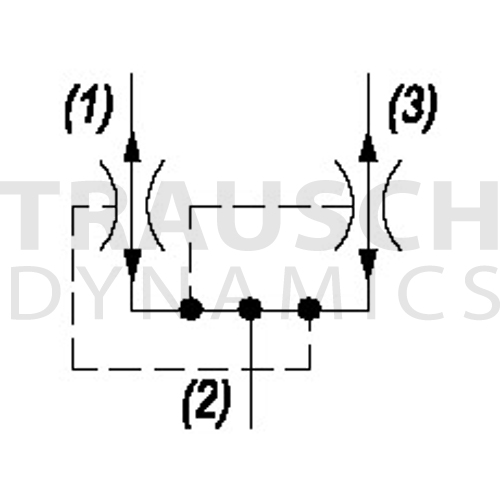

- In the dividing mode, the valve will divert input flow from port (2) to ports (3) and (1), based on the ratio specified with a high degree of accuracy, regardless of operating pressure
- The valve will combine input flows from ports (3) and (1), to port (2) by the same ratio
- Should circuit operation result in a blockage of either (3) or (1), the opposite port may also close under certain conditions
- Hardened parts for long life
- Industry common cavity

Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Pressure Flow Setting | Price | Order Qty. | ||
---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 7011172 | DG-FDA-00-5003 | 12 | 3500 | 7/8-14 | Buna | #1-#3 50/50 Split, 2-3 GPM Inlet Flow | $58.00 / EACH In stock - Ships same day | |||
![]() | 7011175 | DG-FDA-00-5006 | 12 | 3500 | 7/8-14 | Buna | #1-#3 50/50 Split, 3-6 GPM Inlet Flow | $58.00 / EACH In stock - Ships same day | |||
![]() | 7011178 | DG-FDA-00-5009 | 12 | 3500 | 7/8-14 | Buna | #1-#3 50/50 Split, 6-9 GPM Inlet Flow | $60.00 / EACH In stock - Ships same day | |||
![]() | 7011181 | DG-FDA-00-5012 | 12 | 3500 | 7/8-14 | Buna | #1-#3 50/50 Split, 9-12 GPM Inlet Flow | $60.00 / EACH In stock - Ships same day | |||
![]() | 7011182 | DG-FDA-V0-5003 | 12 | 3500 | 7/8-14 | Viton | #1-#3 50/50 Split, 2-3 GPM Inlet Flow | $64.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7011183 | DG-FDA-V0-5006 | 12 | 3500 | 7/8-14 | Viton | #1-#3 50/50 Split, 3-6 GPM Inlet Flow | $64.25 / EACH Usually ships in 5 week(s). Expedite available. | |||

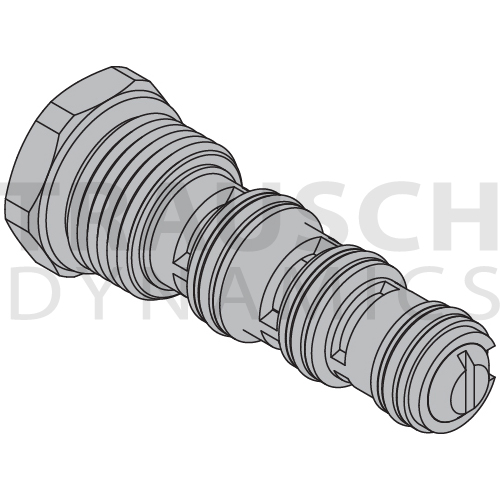

![]() | 7011184 | DG-FDA-V0-5009 | 12 | 3500 | 7/8-14 | Viton | #1-#3 50/50 Split, 6-9 GPM Inlet Flow | $66.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7011185 | DG-FDA-V0-5012 | 12 | 3500 | 7/8-14 | Viton | #1-#3 50/50 Split, 9-12 GPM Inlet Flow | $66.25 / EACH Usually ships in 5 week(s). Expedite available. | |||

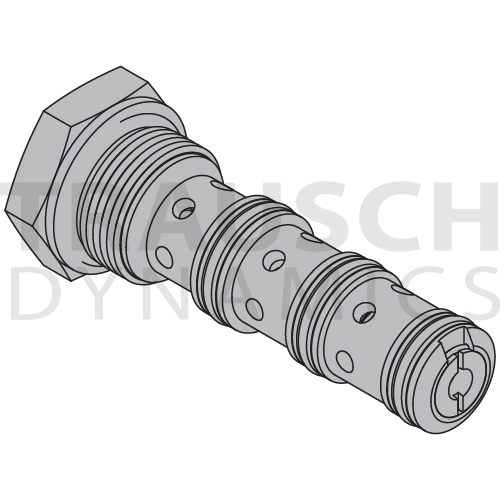

![]() | 7011197 | SN-FDA-00-5015 | 40 | 3500 | 1 5/16-12 | Buna | #1-#3 50/50 Split, 8-15 GPM Inlet Flow | $122.50 / EACH In stock - Ships same day | |||
![]() | 7011198 | SN-FDA-00-5025 | 40 | 3500 | 1 5/16-12 | Buna | #1-#3 50/50 Split, 15-25 GPM Inlet Flow | $122.50 / EACH In stock - Ships same day | |||
![]() | 7011203 | SN-FDA-00-5040 | 40 | 3500 | 1 5/16-12 | Buna | #1-#3 50/50 Split, 30-40 GPM Inlet Flow | $122.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7011186 | SN-FDA-V0-5015 | 40 | 3500 | 1 5/16-12 | Viton | #1-#3 50/50 Split, 8-15 GPM Inlet Flow | $137.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7011187 | SN-FDA-V0-5025 | 40 | 3500 | 1 5/16-12 | Viton | #1-#3 50/50 Split, 15-25 GPM Inlet Flow | $137.50 / EACH Usually ships in 5 week(s). Expedite available. | |||
![]() | 7011188 | SN-FDA-V0-5040 | 40 | 3500 | 1 5/16-12 | Viton | #1-#3 50/50 Split, 30-40 GPM Inlet Flow | $137.50 / EACH Usually ships in 5 week(s). Expedite available. |
