PILOT TO SHIFT - 2W NORMALLY CLOSED - EXTERNAL PILOT & DRAIN
- Mechanical Directional Control Valves
- Pilot to Shift
- 2 Way Normally Closed - External Pilot & Drain

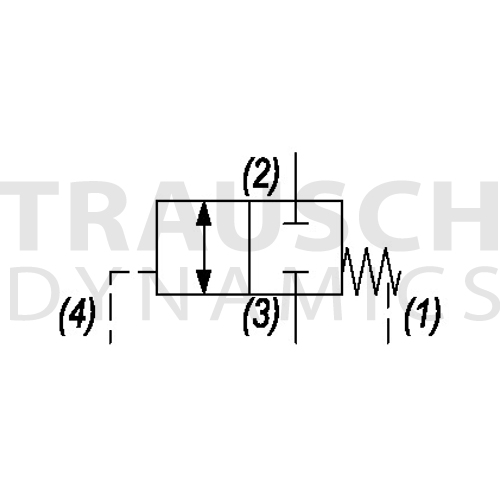

- The valve in neutral (un-piloted), blocks flow between (2) and (3)
- The spring chamber is constantly vented at (1)
- On attainment of a predetermined pressure at (4), the cartridge blocks flow from (2) to (3)
- Note: that the backpressure valve at (1) must be added to the selected pressure setting to determine pilot pressure necessary to shift valve to second position
- Hardened parts for long life
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Crack Pressure | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7012177 | HG-PDC-00-0040 | 10 | 4000 | 7/8-14 | Buna | 40 PSI | $56.50 / EACH Usually ships in 11 week(s) | |||
 | 7012178 | HG-PDC-00-0080 | 10 | 4000 | 7/8-14 | Buna | 80 PSI | $56.50 / EACH Usually ships in 11 week(s) | |||
 | 7012179 | HG-PDC-00-0160 | 10 | 4000 | 7/8-14 | Buna | 160 PSI | $56.50 / EACH Usually ships in 11 week(s) | |||
 | 7012180 | HG-PDC-V0-0040 | 10 | 4000 | 7/8-14 | Viton | 40 PSI | $63.25 / EACH Usually ships in 11 week(s) | |||
 | 7012181 | HG-PDC-V0-0080 | 10 | 4000 | 7/8-14 | Viton | 80 PSI | $63.25 / EACH Usually ships in 11 week(s) | |||
 | 7012183 | HG-PDC-V0-0160 | 10 | 4000 | 7/8-14 | Viton | 160 PSI | $63.25 / EACH Usually ships in 11 week(s) |
