PILOT TO SHIFT - 2W NORMALLY CLOSED - EXTERNAL PILOT
- Mechanical Directional Control Valves
- Pilot to Shift
- 2 Way Normally Closed - External Pilot

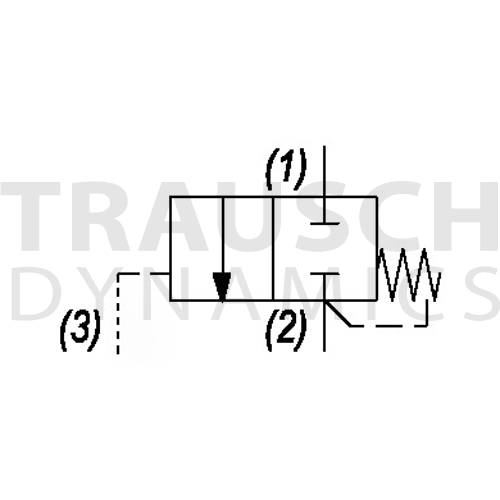

- The valve blocks flow at ports (2) and (1)
- On attainment of a predetermined pressure at (3), the valve shifts to allow flow from (1) to (2)
- Hardened parts for long life
- Industry common cavity
| Image | Item # | Mfr. Number | GPM | PSI | Size | Seal | Crack Pressure | Price | Order Qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7012197 | HF-PDE-00-0050 | 10 | 4000 | 7/8-14 | Buna | 50 PSI | $46.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012199 | HF-PDE-00-0095 | 10 | 4000 | 7/8-14 | Buna | 95 PSI | $46.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012200 | HF-PDE-00-0165 | 10 | 4000 | 7/8-14 | Buna | 165 PSI | $46.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012201 | HF-PDE-V0-0050 | 10 | 4000 | 7/8-14 | Viton | 50 PSI | $50.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012202 | HF-PDE-V0-0095 | 10 | 4000 | 7/8-14 | Viton | 95 PSI | $50.25 / EACH Usually ships in 5 week(s). Expedite available. | |||
 | 7012203 | HF-PDE-V0-0165 | 10 | 4000 | 7/8-14 | Viton | 165 PSI | $50.25 / EACH Usually ships in 5 week(s). Expedite available. |
