  • Mechanical Directional Control Valves

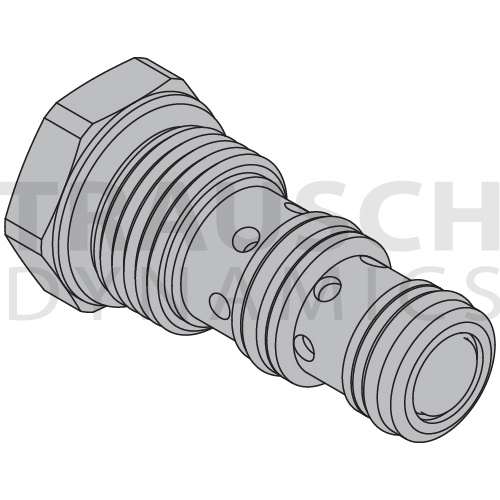

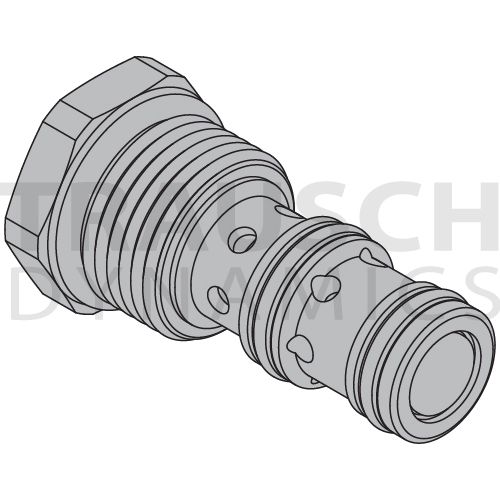

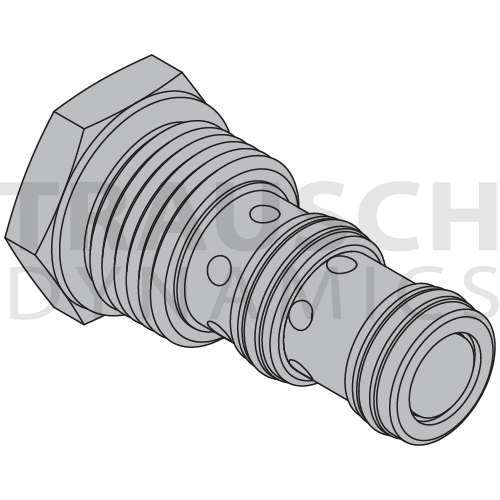

  • Pilot Operated Check Valves
  • Pilot to Open
  • The valve allows free flow to pass from (2) to (1) and blocks flow from (1) to (2)
  • When pilot pressure is applied to port (3) the valve allows free flow from (1) to (2)
  • The cartridge has a 2:1 pilot ratio, meaning that at at least one half of the load pressure held at (1) is required at (3) to open the valve
  • The check is spring biased to assure holding in static or no-load conditions
  • Hardened parts for long life
  • Industry common cavity
*** Slide left / right to view more ***
ImageItem #Mfr. NumberGPMPSISizeSealCrack PressurePriceOrder Qty.
7012204PP-CPB-00-0025635003/4-16Buna25 PSI $24.00 / EACH
Usually ships in 5 week(s).
Expedite available.
7012205PP-CPB-V0-0025635003/4-16Viton25 PSI $26.75 / EACH
Usually ships in 5 week(s).
Expedite available.
7011007DF-CPB-00-0025835007/8-14Buna25 PSI $24.50 / EACH
In Stock - Ships same day
7012213DF-CPB-V0-0025835007/8-14Viton25 PSI $27.25 / EACH
Usually ships in 5 week(s).
Expedite available.
7012220DF-CPC-00-00251035007/8-14Buna25 PSI $27.50 / EACH
Usually ships in 5 week(s).
Expedite available.
7012221DF-CPC-V0-00251035007/8-14Viton25 PSI $30.25 / EACH
Usually ships in 5 week(s).
Expedite available.
Page 1 of 1
